64 Rockwell Automation Publication 1734-UM013N-EN-P - September 2017
Chapter 4 Install the Module

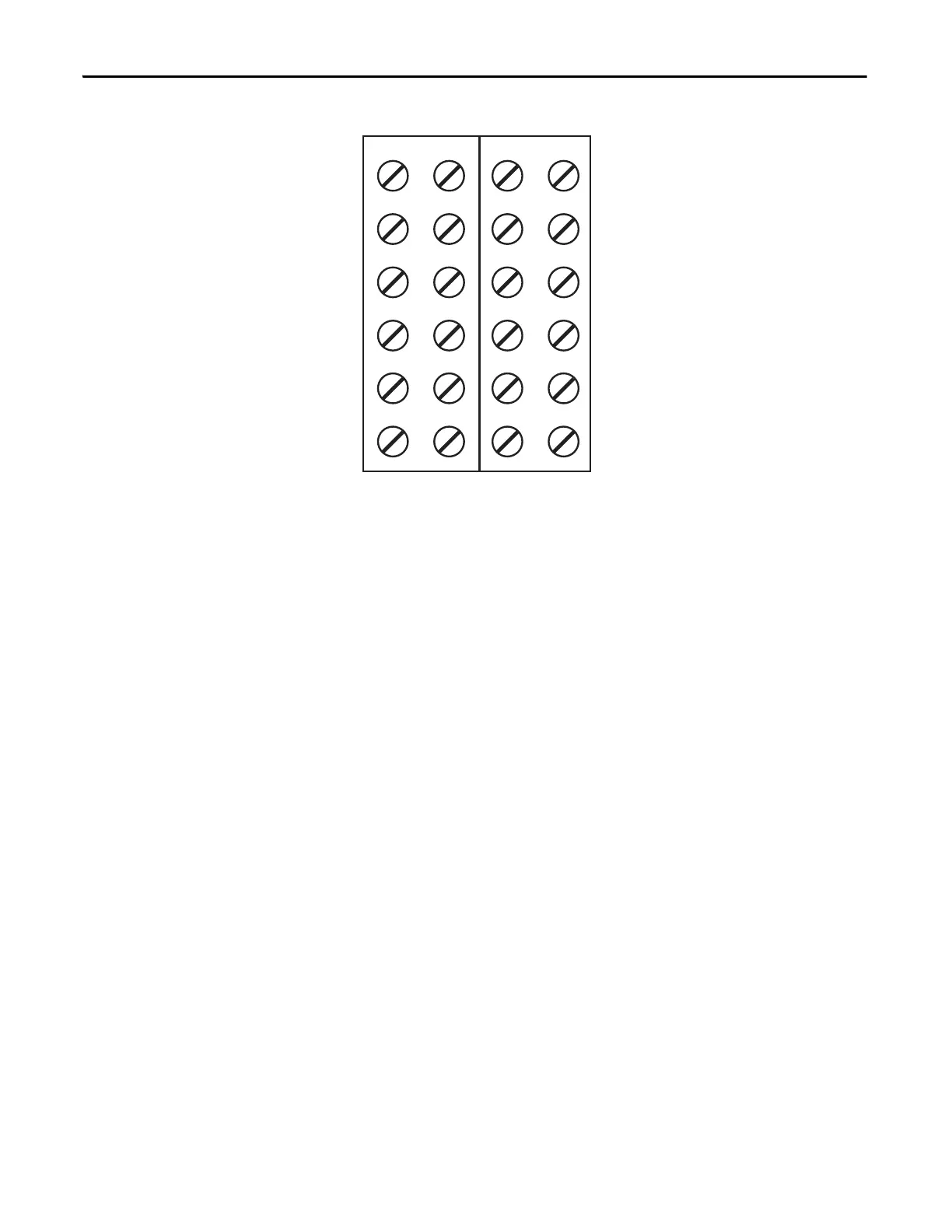

Figure 29 - 1734-IE4S Field Connections
V0 V1 V2 V3
I0 I1 I2 I3
COM COM COM COM
COM COM COM COM
S0 S1 S2 S3
S0 S1 S2 S3
1734-TOP3 Base Shown
Where:
V0…V3 = Voltage inputs 0…3
I0…I3 = Current inputs 0…3
COM = Supply Common
S0…S3 = Sensor power terminals
