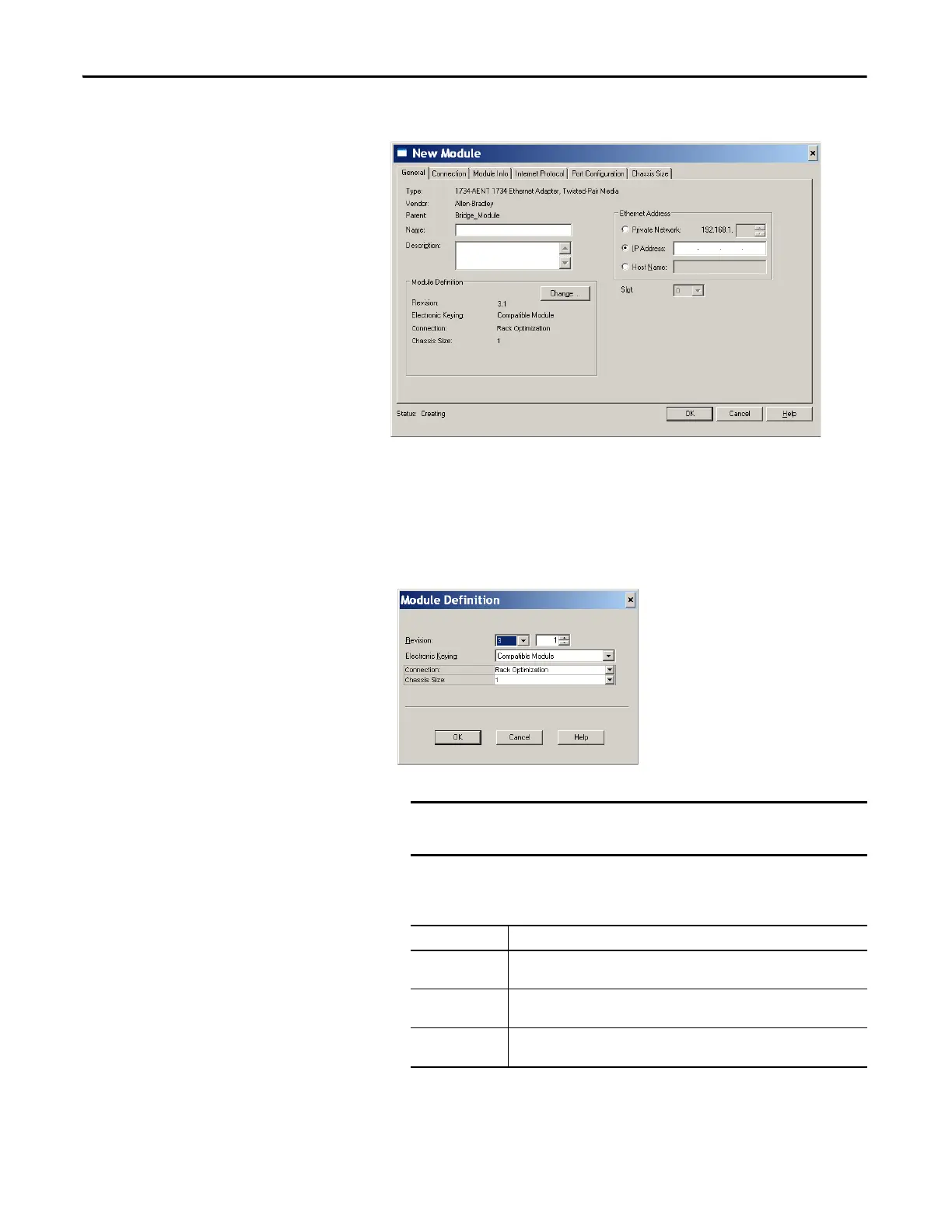

4. Specify the general properties of the Ethernet adapter.
a. In the Name field of the New Module dialog box, type the name of the
1734 Ethernet adapter.
b. In the Description field, type a description, if desired.
c. In the IP address field, type the IP address.
5. To edit the Ethernet adapter Definition, click Change.
.
a. In the Revision fields, choose the major and minor revisions.
b. From the Electronic Keying pull-down menu, choose the appropriate
keying method.
1734-AENT adapter firmware must be major revision 3 or later to
support POINT Guard I/O modules.
Choose Description
Exact Match Module and type series must exactly match or the module is rejected by the
controller.
Compatible Module Controller checks module type and revision for compatibility. Compatible
modules that match or are newer are accepted.
Disable Keying Controller checks module type, but accepts any version. Do not choose Disable
Keying.
