Configure the Module in a GuardLogix Controller System Chapter 5
c. From the Electronic Keying pull-down menu, choose the appropriate
keying method from the following options.
d. From the Configured By pull-down menu, choose the method by
which this module is configured.
e. From the Input Data pull-down menu, choose None.
None is the only valid selection, as this module is an output-only safety
module.
f. From the Output Data pull-down menu, choose from the following:
Choose Description
Exact Match All parameters must match or the inserted module rejects a connection to
the controller.
Compatible Module Lets an I/O module determine whether it can emulate the module that is
defined in the configuration that is sent from the controller.
Choose Description
This Controller This selection directs the controller to configure and control the safety
outputs.
The Output Data selection is set to Safety.
External Means This selection directs the controller to establish a safety input connection
only, and the controller does not configure the module or be able to control
the safety outputs.
The Output Data selection is set to None.
Choose Description

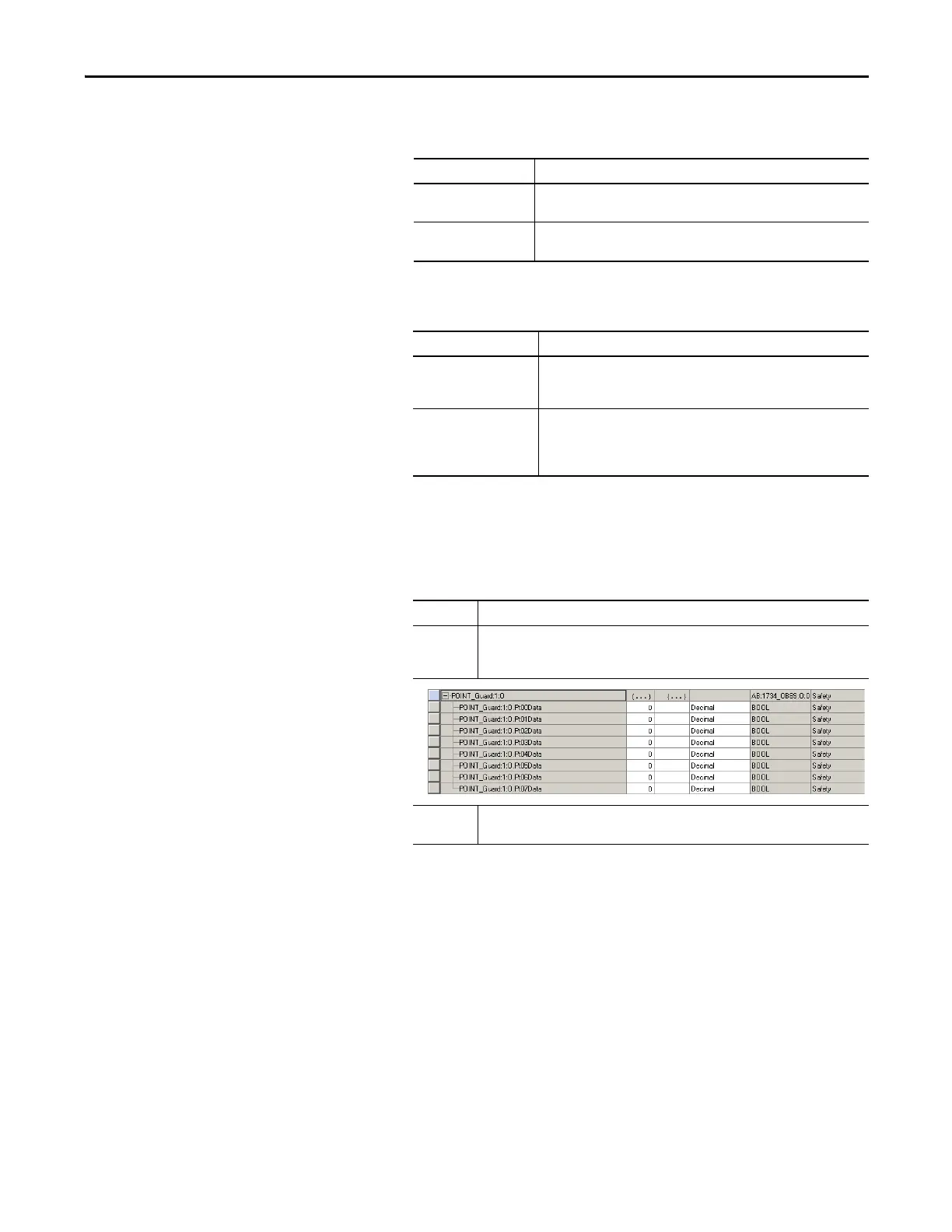

Safety Automatically selected when Configured By = This controller. Results in an output
connection. When you select Safety, an output tag is created for each output point and
enables these outputs for use in the Safety Task.
None Automatically selected when Configured By = External. When you select None, it results
in an input only connection to the module. Status is read, but no outputs are written.
