Publication 1763-RM001C-EN-P - October 2009

38 Controller Memory and File Types

MicroLogix 1100 User Memory

The MicroLogix 1100 controller supports 8K of memory. Memory can be

used for program files and data files. The maximum data memory usage is

4K words as shown below.

See MicroLogix 1100 Memory Usage and Instruction Execution Time on

page 457 to find the memory usage for specific instructions.

The MicroLogix 1100 controller also supports 64K bytes of battery backed

memory for Data Logging or Recipe operations. See Chapter 21 for Data

Logging and Recipe information.

See System Status File on page 465 to find the memory usage for specific

instructions.

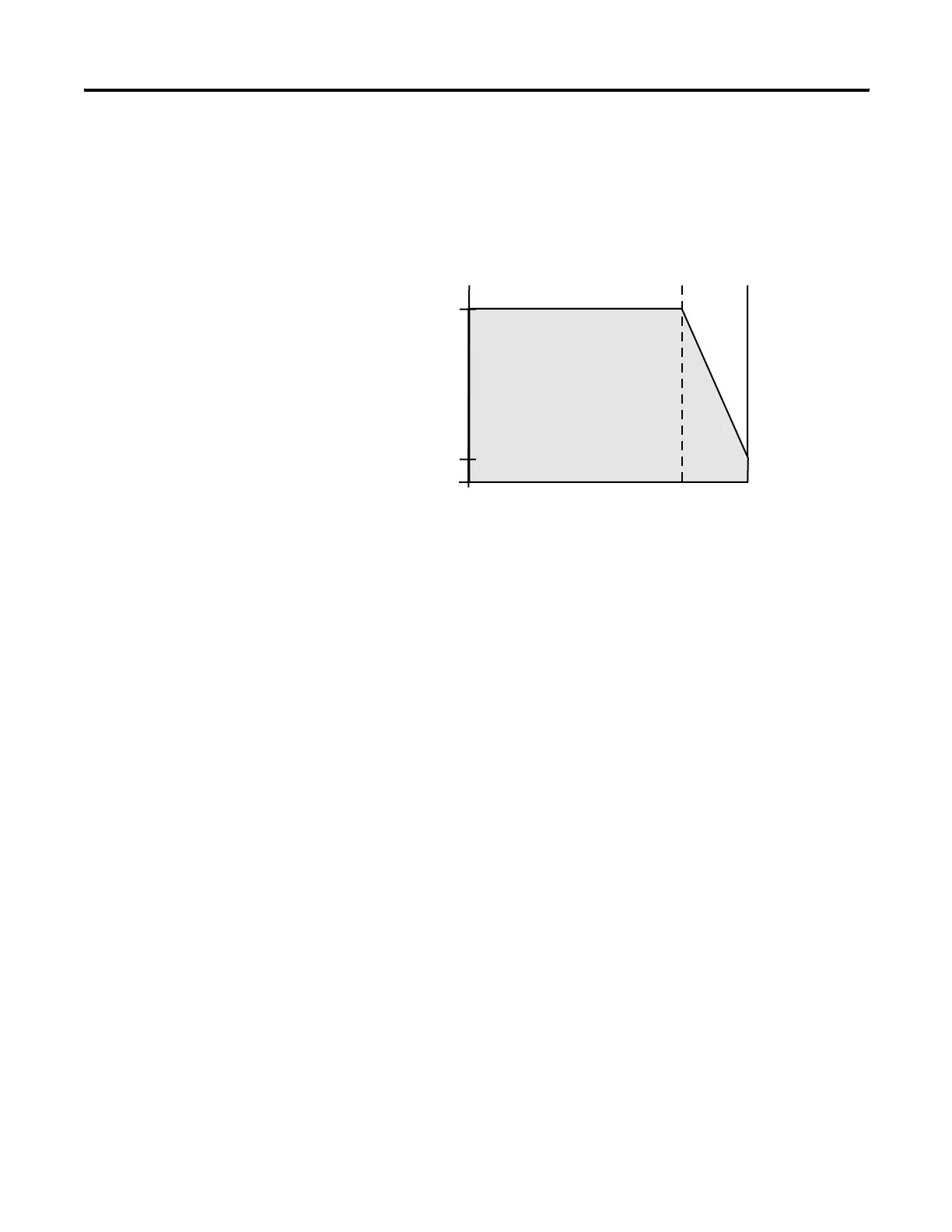

4.0K

0.5K

4.0K 4.7K

Data Words

Program Words
