Publication 1763-RM001B-EN-P - April 2007
Communications Instructions 381
Example 5 - Configuring an Ethernet/IP Message
This section describes how to configure a local message when you are
use Ethernet communication channel 1 of the MicroLogix 1100.
Message Setup Screen

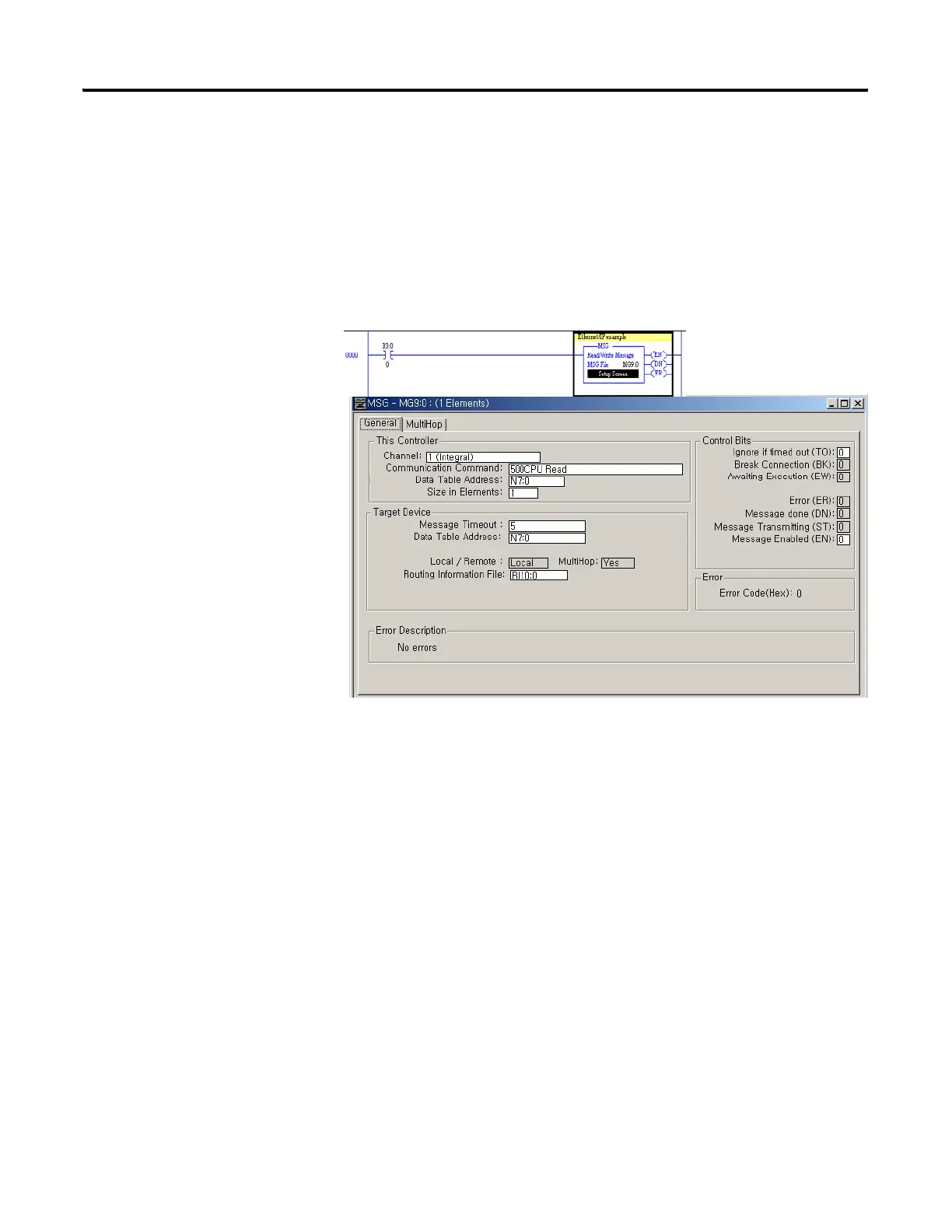

Rung 0 shows a standard RSLogix 500 message (MSG) instruction
preceded by conditional logic.
1. Access the message setup screen by double-clicking Setup Screen.
2. The RSLogix 500 Message Setup Screen appears. This screen is used
to setup or monitor message parameters for “This Controller”,
“Target Device”, and “Control Bits”. Descriptions of each of these
sections follow.
