Publication 1763-RM001C-EN-P - October 2009
540 Knowledgebase Quick Starts
Enter the following parameters as the “Minimum Configuration” required
for the PTO to generate pulses.
Example

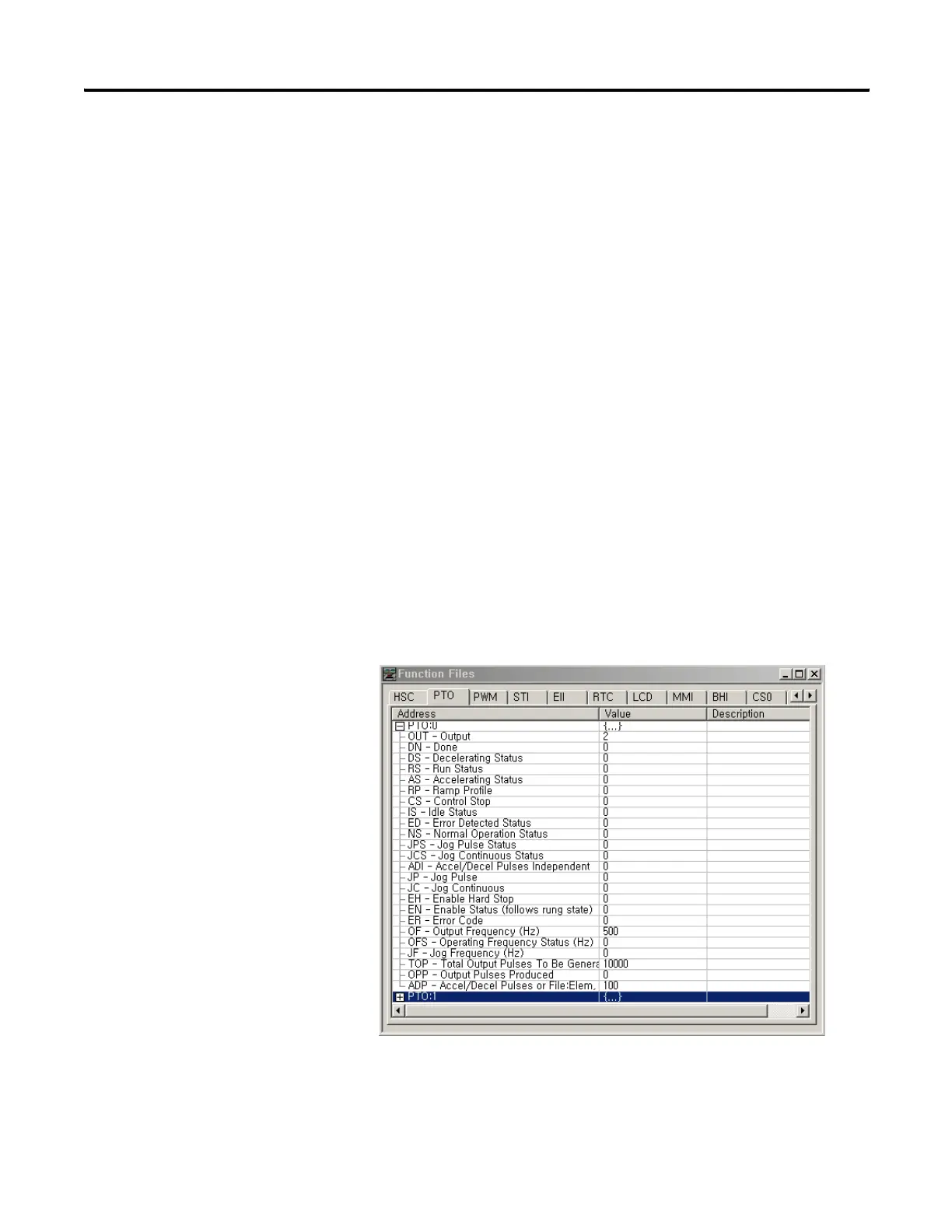

The following example will generate 10,000 pulses on Output O:0/2 at a
frequency of 500Hz and 100 pulses will be used for Accelerating and 100
pulses will be used for Decelerating.
PTO:0.OUT Select Destination Output for pulses: Output O:0/2 or
O:0/3
PTO:0.OF Output Frequency - Frequency of pulses: 0 to 20,000 Hz
Data less then zero and greater then 20,000 generates a
PTO error
PTO:0.TOP Total Output Pulses - Determines total number of pulses
to be generated by the controller
PTO:0.ADP Accel/Decel Pulses - How many of the total pulses will
be used for the Accel/Decel component
