Publication 1763-RM001C-EN-P - October 2009

560 Knowledgebase Quick Starts

FYI - Every time Configuration above is double-clicked a new

queue is added. To delete queues, simply select the queue with the

mouse and press the <delete> key on the keyboard.

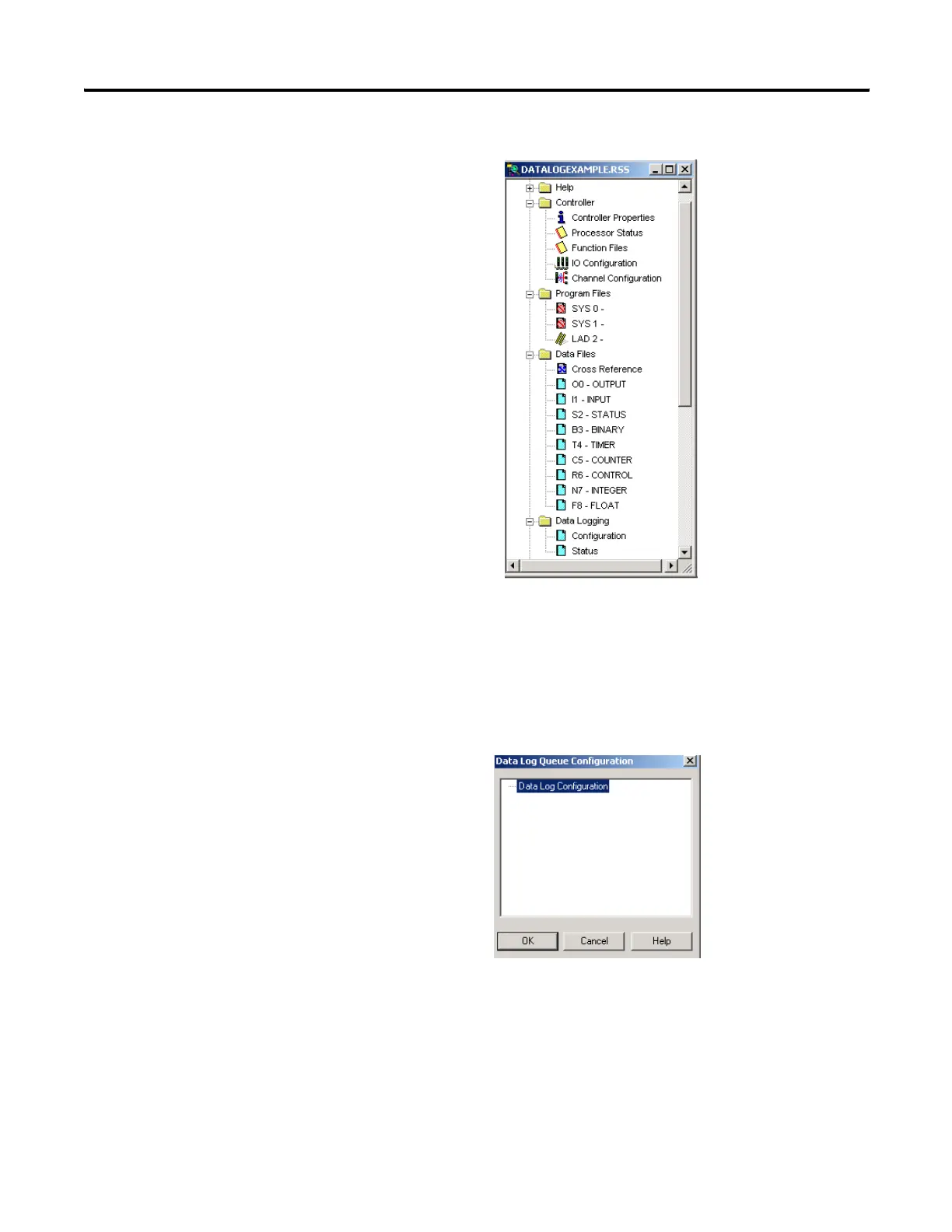

4. Double-Click on Data Log configuration to open the

Configuration window.

5. Complete the Data Log Queue as shown below. The Number of

records and Addresses selected were arbitrary for this example.
