Where to Start
How Hardware Is Connected
This quick start, in use with the additional quick starts listed in Table 1 on pa g e 12 , describes
possible control systems shown in Figure 1
and Figure 2.

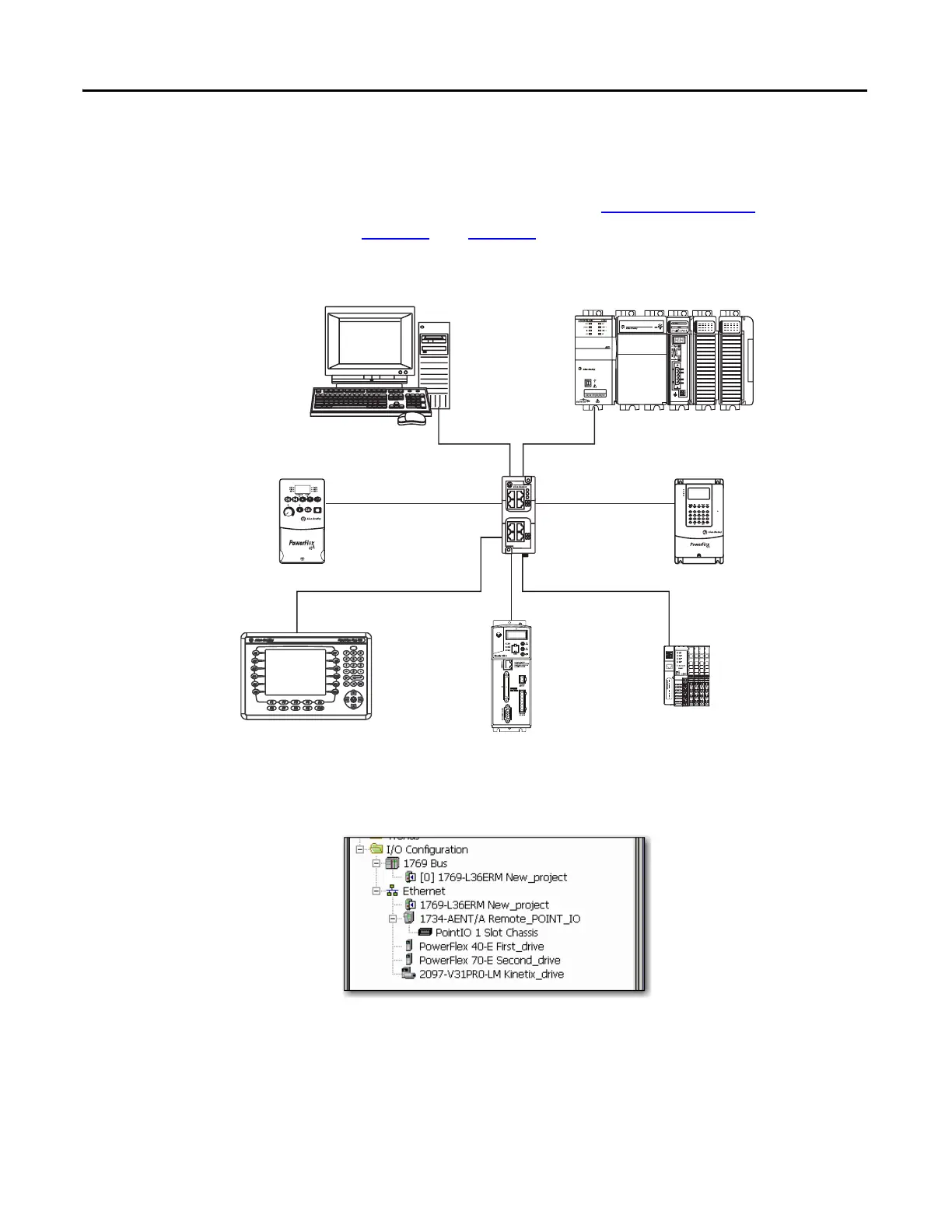

Figure 1 - CompactLogix 5370 L3 Controller in a Star Network Topology
PORT
MOD
NET B
NET A
STS
1 (Front)1 (Front)1 (Front)
2 (Rear)
1
2
34
56
78
Kinetix 350 Drive
Stratix 6000 Switch
CompactLogix™ 5370
L3 Control System
PowerFlex 70 Drive with
20-COMM-E Adapter
PowerFlex 40 Drive with
22-COMM-E Adapter
PanelView Plus Terminal with Built-in
EtherNet/IP Port
Computer
Distributed POINT I/O Modules with
1734-AENT Adapter
Star Network Topology
Application Configuration
To Next Page
