130 Rockwell Automation Publication 1769-UM021G-EN-P - October 2015
Chapter 6 Communicate over Networks
Linear Network Topology
A linear network topology is a collection of devices that are daisy-chained
together across an EtherNet/IP network. Devices that can connect to a linear
network topology use embedded switch technology to remove any need for a
separate switch, as required in Star network topologies.

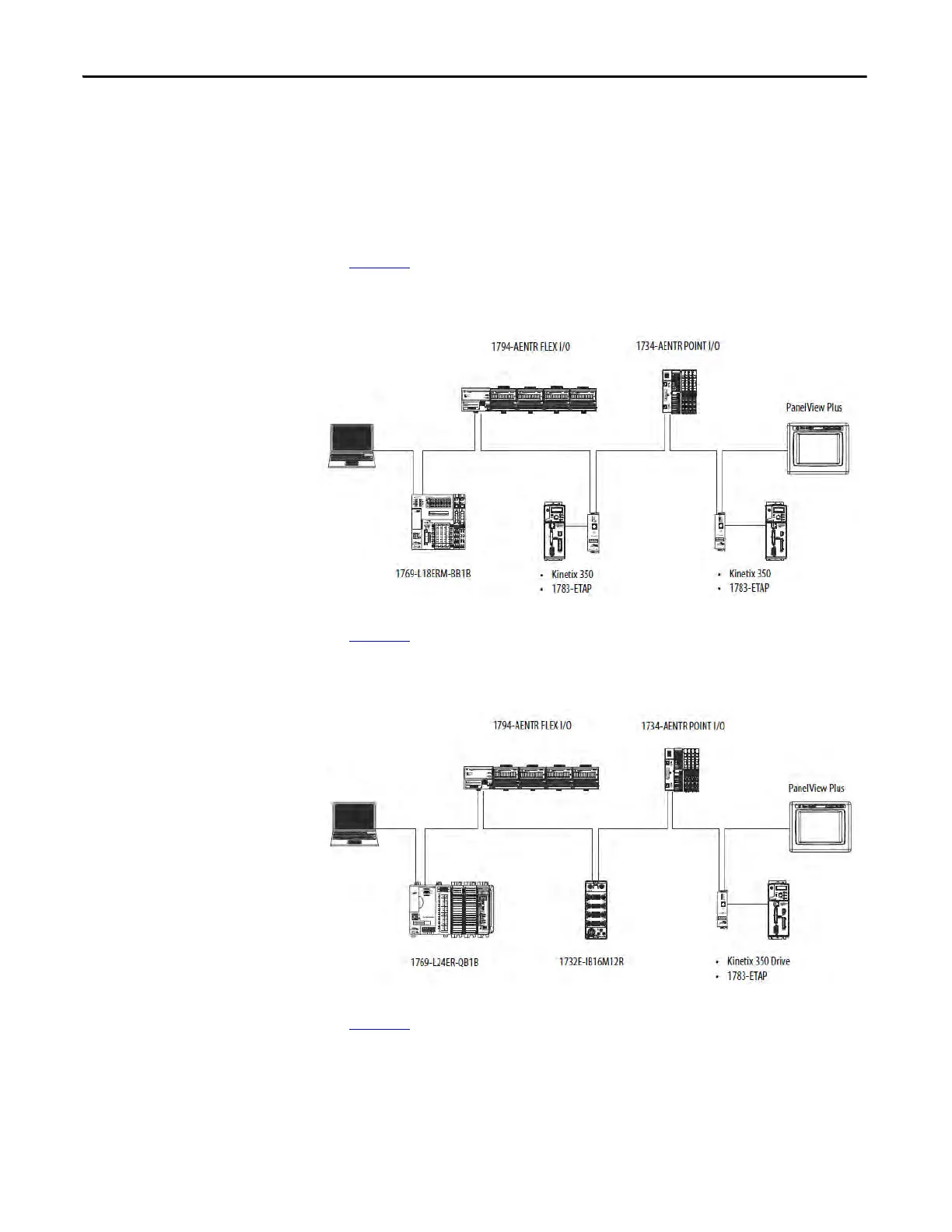

Figure 11
shows an example 1769-L18ERM-BB1B control system using a linear
network topology.
Figure 11 - Example 1769-L18ERM-BB1B Control System Using a Linear Network Topology
Figure 12 shows an example 1769-L24ER-QB1B control system using a linear
network topology.
Figure 12 - Example 1769-L24ER-QB1B Control System Using a Linear Network Topology
Figure 13 shows an example 1769-L33ERM control system using a linear
network topology.
