52 Rockwell Automation Publication 842E-UM001C-EN-P - September 2016
Chapter 6 Configuring the 842 E Encoder Using RSLogix 5000®

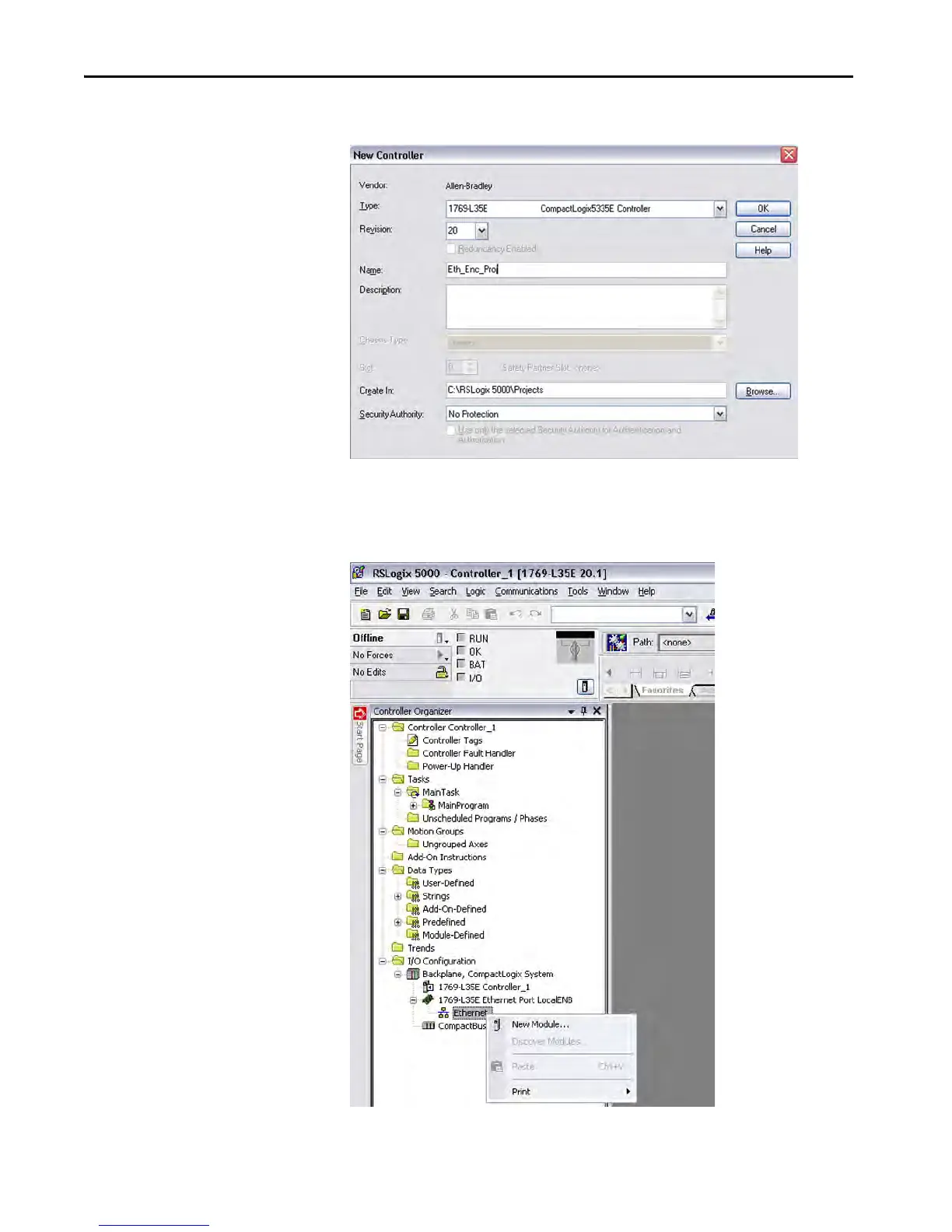

3. Enter the new controller information.
Figure 5
4. Right-click on the Ethernet port of the controller and select New
Module.
Figure 6
