Configuring the 842 E Encoder Using RSLogix 5000® Chapter 6
Network Tab

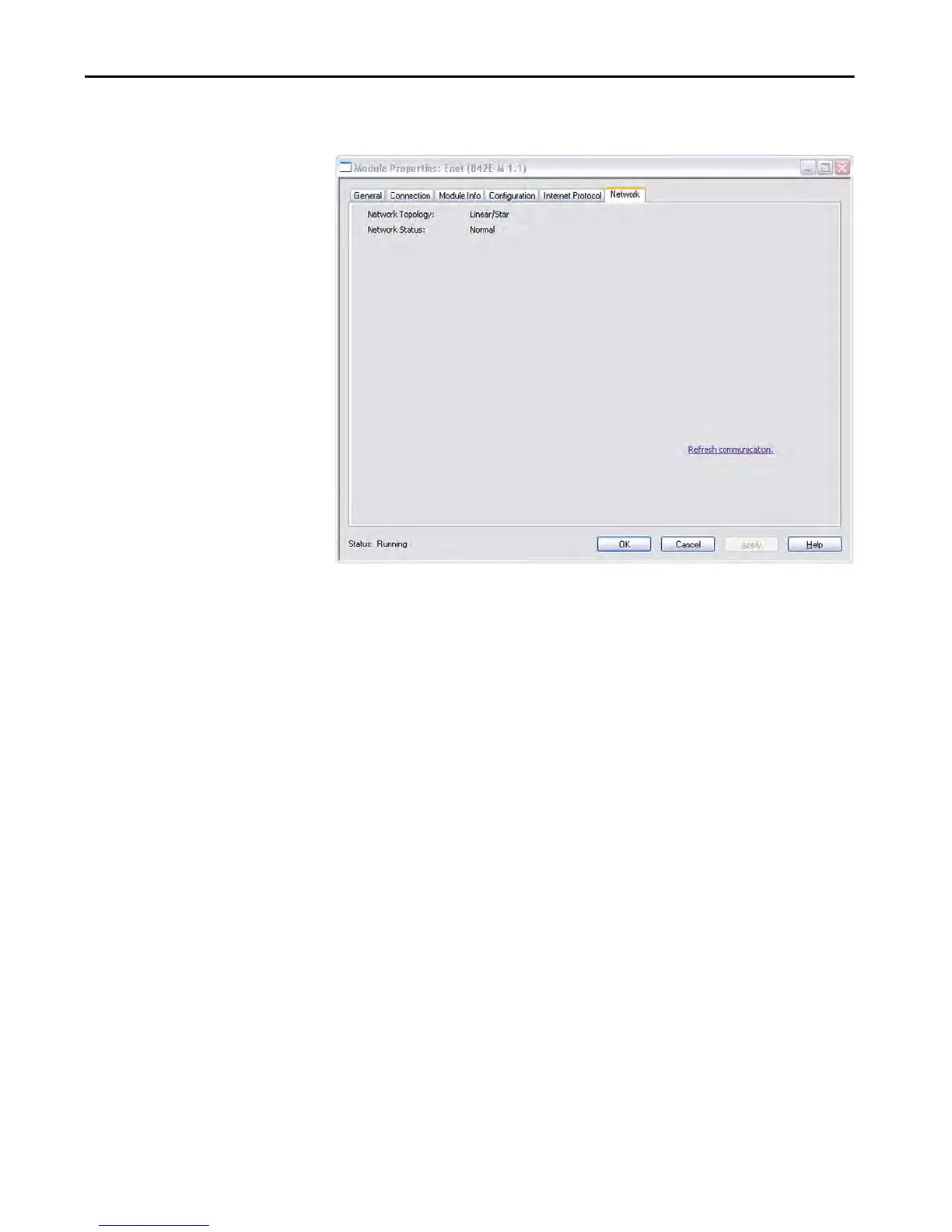

Figure 17
The Network tab contains read-only data that is populated when the
controller goes online.
Network Topology: Displays the current network topology as either linear/
star or ring.
Network Status: Displays the current network status as normal, ring fault, or
unexpected loop detected.
The Refresh Communication link appears when communication with the
encoder has failed. Click Refresh Communication to attempt to restart
communication with the encoder.
