90 Rockwell Automation Publication 842E-UM001C-EN-P - September 2016
Appendix B RSLogix 5000® Sample Code

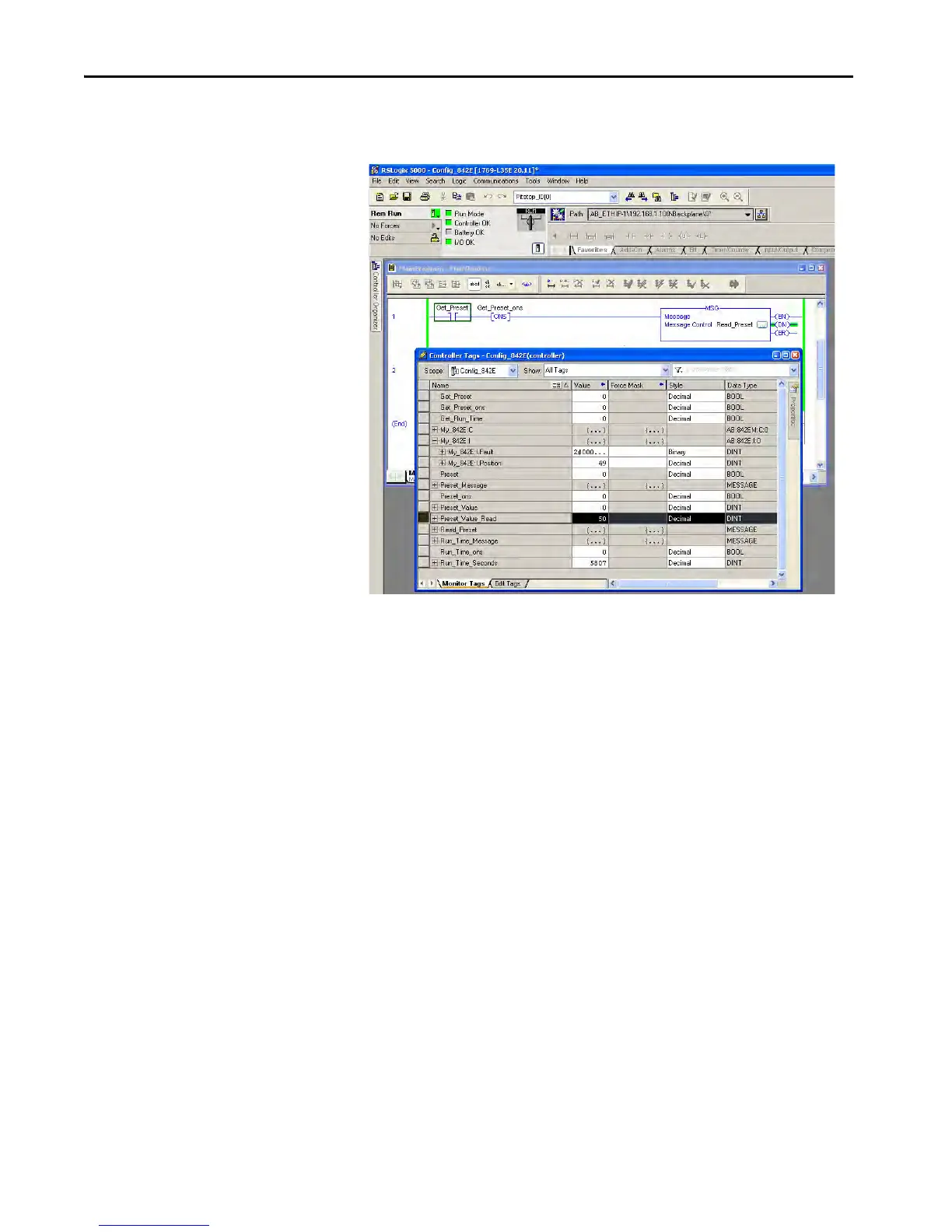

7. Toggle the Get_preset contact, the message instruction returns the
preset value form the encoder into Preset_Value_Read DINT.
Figure 20
