16 Kinetix 5500 Servo Drives
Rockwell Automation Publication 2198-IN001C-EN-P - January 2014

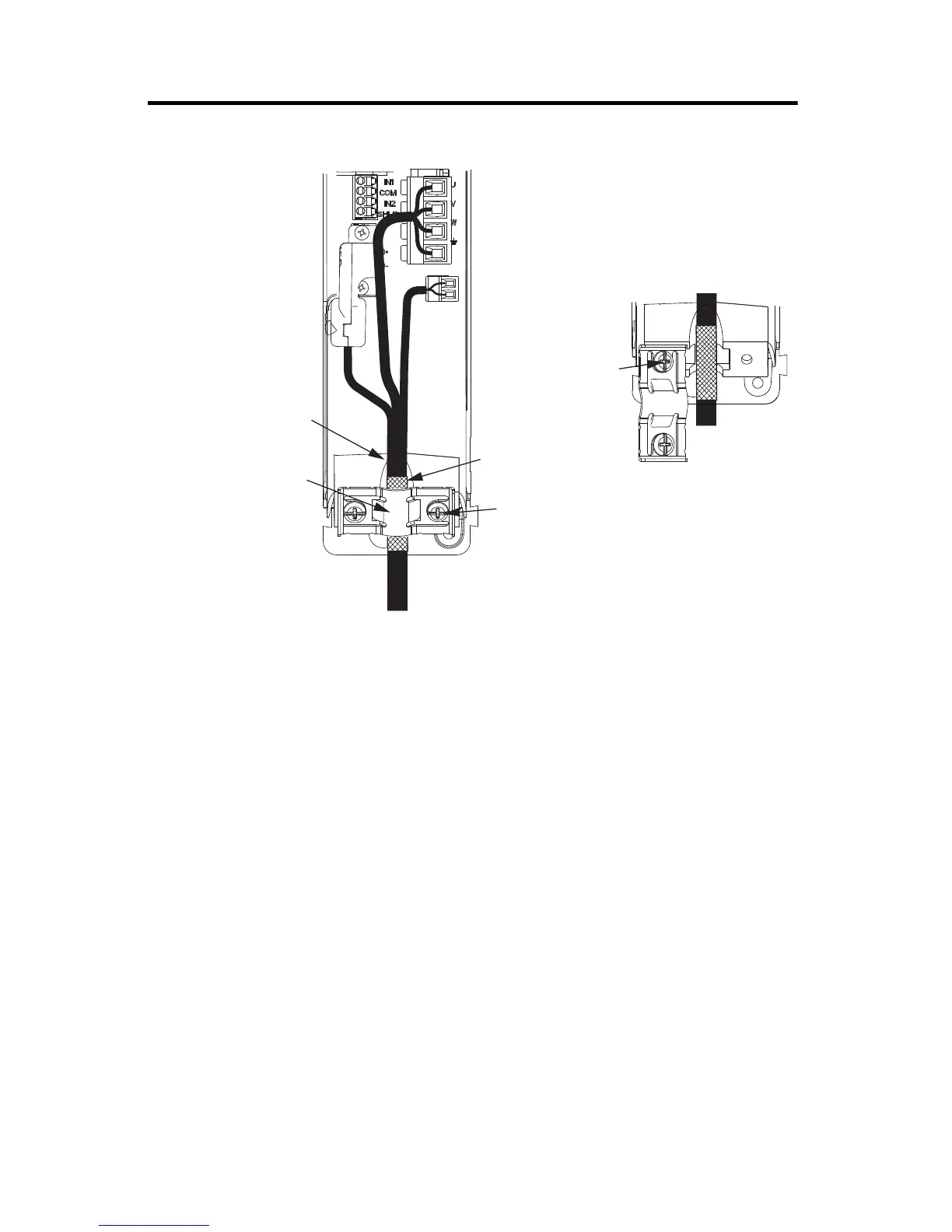

14 and 10 AWG Cable Installation
Motor Cable
Shield Clamp
Motor Power
(MP) Connector
Motor Brake
(BC) Connector
Exposed shield braid
under clamp.
Shield Clamp Screws (2)
Feedback cable routed
within the shield braid.
2198-KITCON-DSL
Motor Feedback
Connector Kit
Retention Screw
(loosen, do not remove)
Clamp features apply
to all frame sizes.
Torque clamp screws to
2.0 N•m (17.5 lb•in), max
Kinetix 5500 Servo Drives,
Frame 2 or 3, Front View
(frame 2 is shown)
Bulletin 2090 Single Motor Cable
