Allen-Bradley Kinetix 5500 Installation Instructions

8 Kinetix 5500 Servo Drives
Rockwell Automation Publication 2198-IN001C-EN-P - January 2014
Kinetix 5500 Drives with 2198-H2DCK Converter Kit
Refer to Kinetix Servo Drives Technical Data, publication GMC-RM003, for motor/actuator
compatibility with the 2198-H2DCK converter kit and product dimensions.
256
(10.08)
56.0
(2.20)
45.0
(1.77)
256
(10.08)
56.0
(2.20)
256
(10.08)
56.0
(2.20)
Dimensions are in mm (in.)

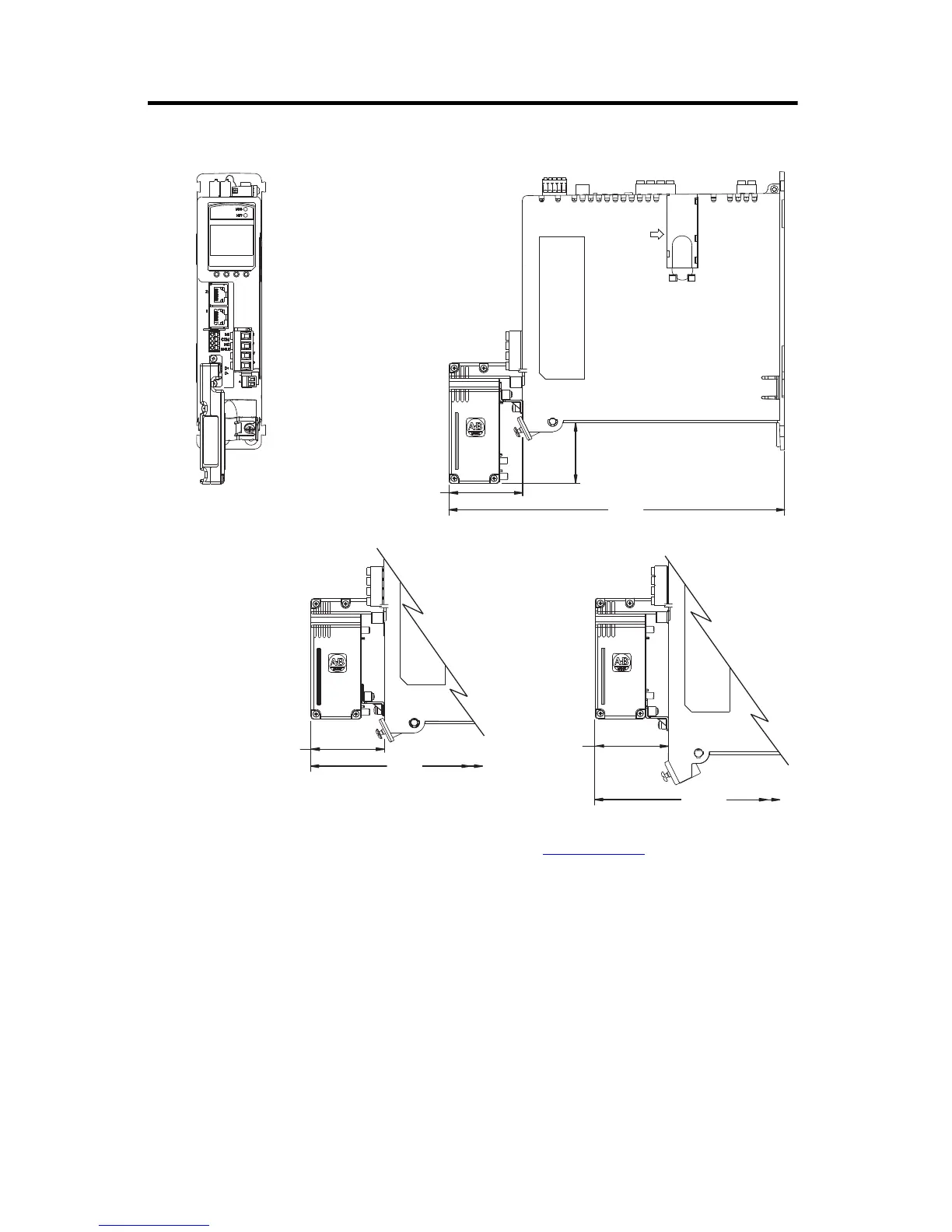

Frame 1 Servo Drive
2198-H2DCK
Feedback Converter Kit
Mounted on Frame 1 Drive
2198-H2DCK
Feedback Converter Kit
Mounted on Frame 2 Drive
2198-H2DCK
Feedback Converter Kit
Mounted on Frame 3 Drive
