14. Select the Scaling category and edit the values as appropriate for your
application.
15. If you changed any settings, click Apply.
16. Select the Actions category.
The Actions to Take Upon Conditions dialog box appears.
From this dialog box, you can program actions and change the action for
exceptions (faults).
Some out-of-box (OOB) settings must be applied here. See Appendix C
on page 339
for more information.
17. Select the Parameter List category.
The Motion Axis Parameters dialog box appears.

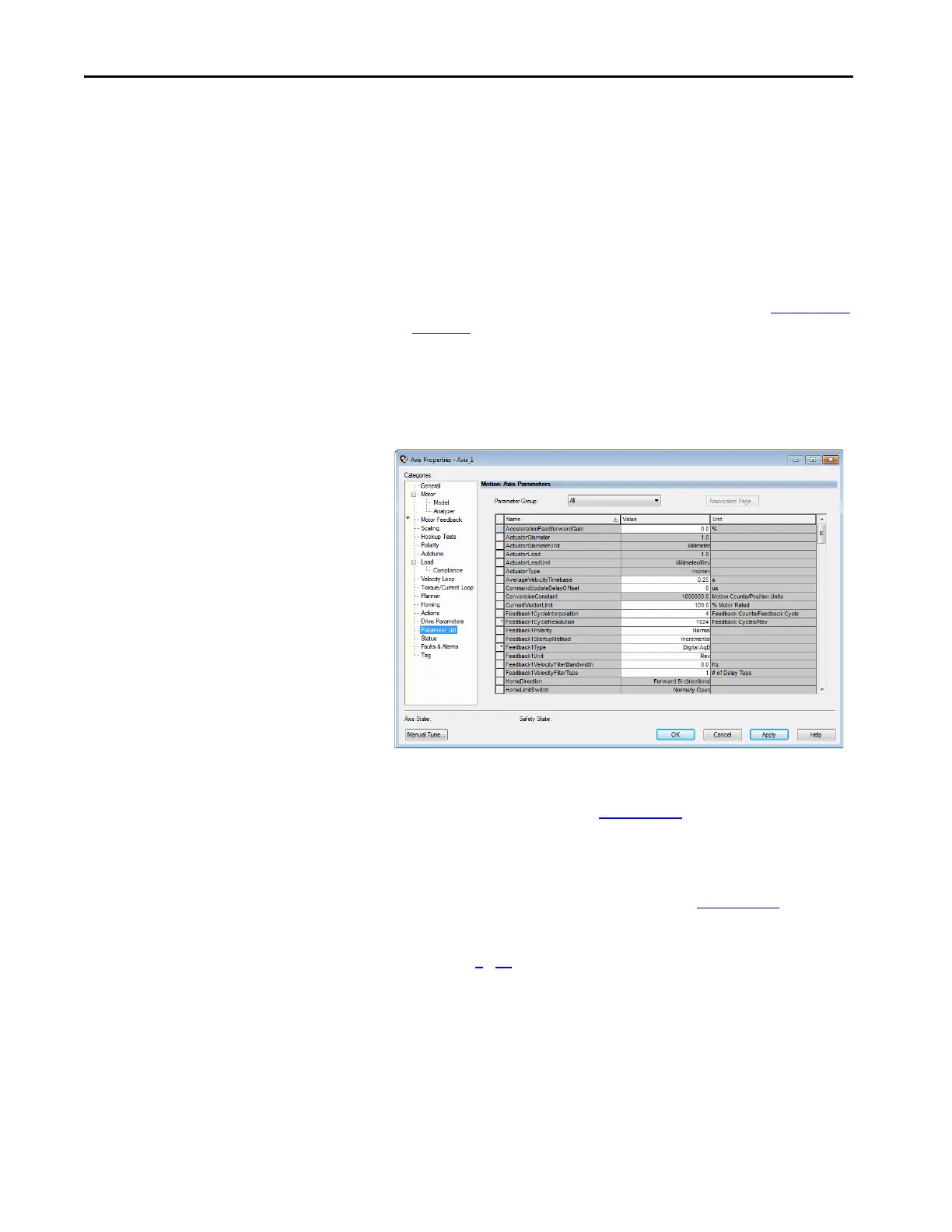

Figure 96 - Example 2: Velocity Control with Motor Feedback, Motion Axis Parameters Dialog
Box
From this dialog box, you can program actions and change the action for
exceptions (faults). See the PowerFlex 527 Adjustable Frequency AC
Drive User Manual, publication 520-UM002
for more information.
To obtain the best performance from the drive, regardless of which
control method you are using, configure the recommended out-of-box
settings. These settings are described in the PowerFlex 527 Adjustable
Frequency AC Drive User Manual, publication 520-UM002
.
18. Click OK.
19. Repeat steps 1
…18 for each induction motor axis.
