Publication 1761-UM006A-EN-P - February 2001
2-4 Installation and Wiring

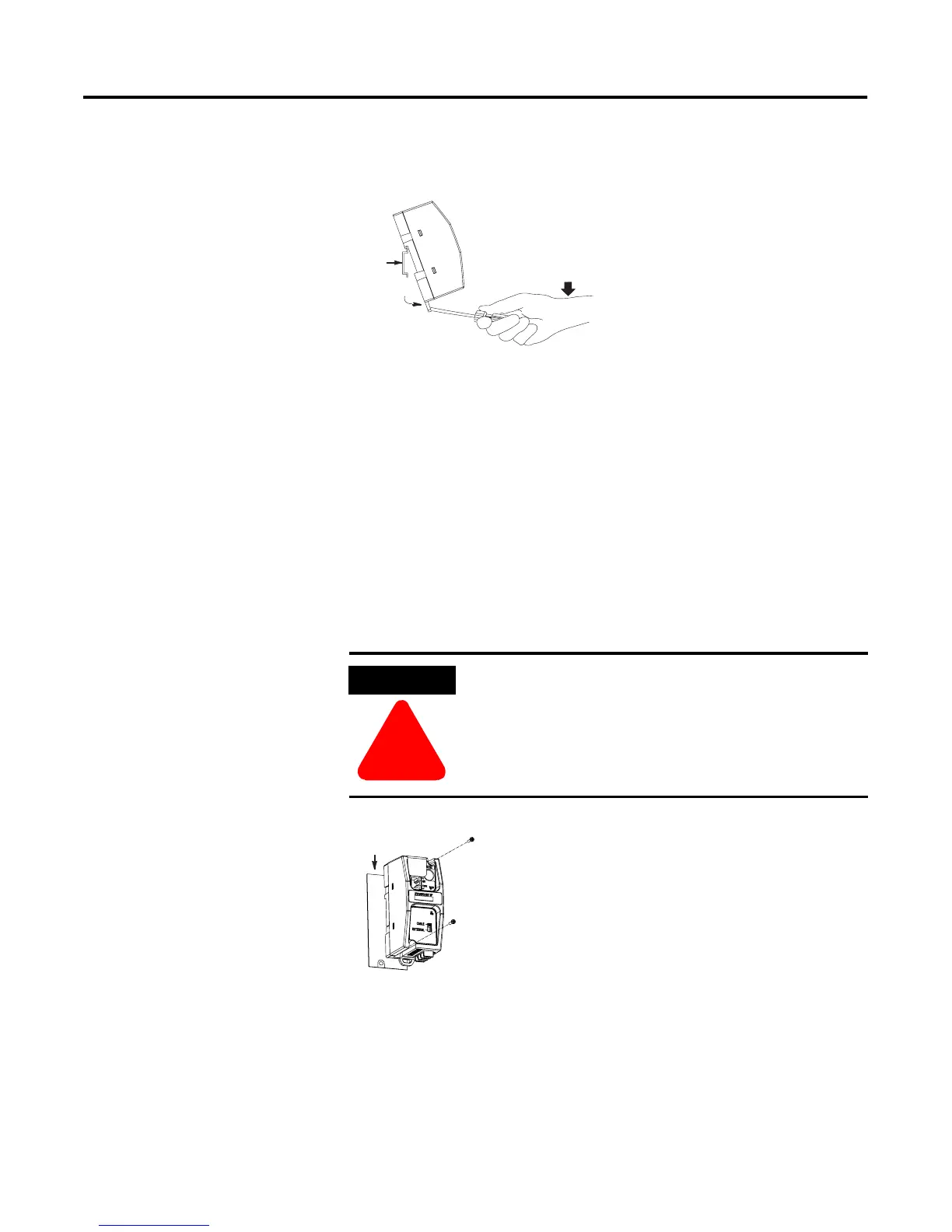

Removal
Panel Mounting
Template
See Appendix A for panel mounting template.
Installation
ATTENTION
!
Be careful of metal chips when drilling mounting
holes for your equipment within the enclosure or
panel. Drilled fragments that fall into the equipment
could cause damage. Do not drill holes above
mounted equipment if the protective debris strip has
been removed.
1. Place a screwdriver in the DIN
rail latch at the bottom of the
unit.
2. Holding the unit, pry
downward on the latch until
the unit is released from the
DIN rail.
DIN
Rail
Side
View
1. Remove the mounting template from the
back of this document.
2. Secure the template to the mounting
surface.
3. Drill holes through the template.
4. Remove the mounting template.
5. Mount the unit.
Mounting
Template
To Next Page
