Publication 1761-UM006A-EN-P - February 2001
Connecting 1769-L20 CompactLogix Controllers on Ethernet 7-15
Create MSG Programs for
the SLC 5/05 and the 5550
Controllers
We must now create MSG ladder programs for our other two
controllers on Ethernet. The following is the MSG ladder program for
the SLC 5/05 controller, developed with RSLOGIX500. Following the
ladder program are four additional screens showing the two tabs for
each MSG Instruction. Before saving your program, be sure to
configure Channel 1 with its IP address, subnet mask and disable
BOOTP. Then, save your program.

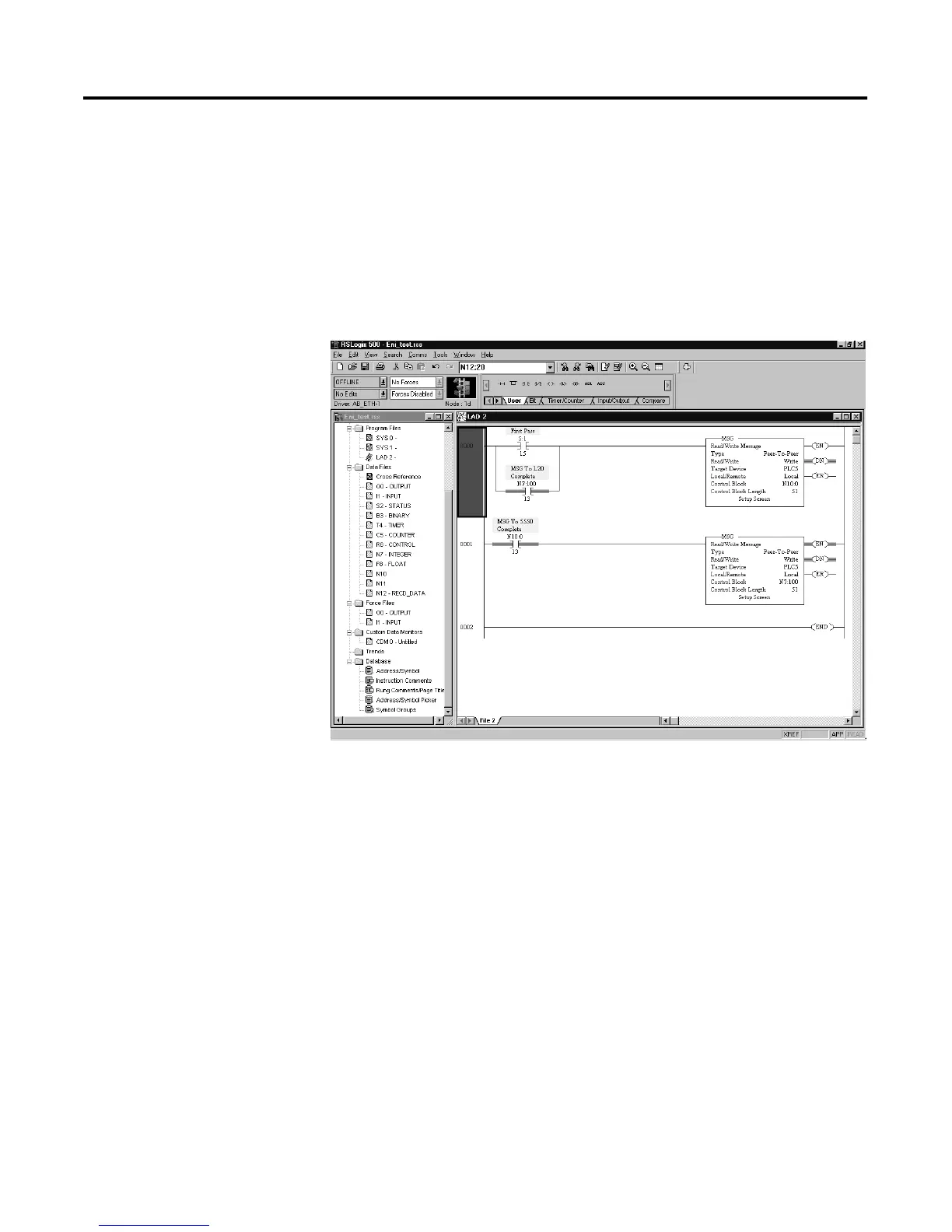

Figure 7.14 SLC 5/05 Controller Ladder Program
To Next Page
