Publication 1761-UM006A-EN-P - February 2001

7-20 Connecting 1769-L20 CompactLogix Controllers on Ethernet

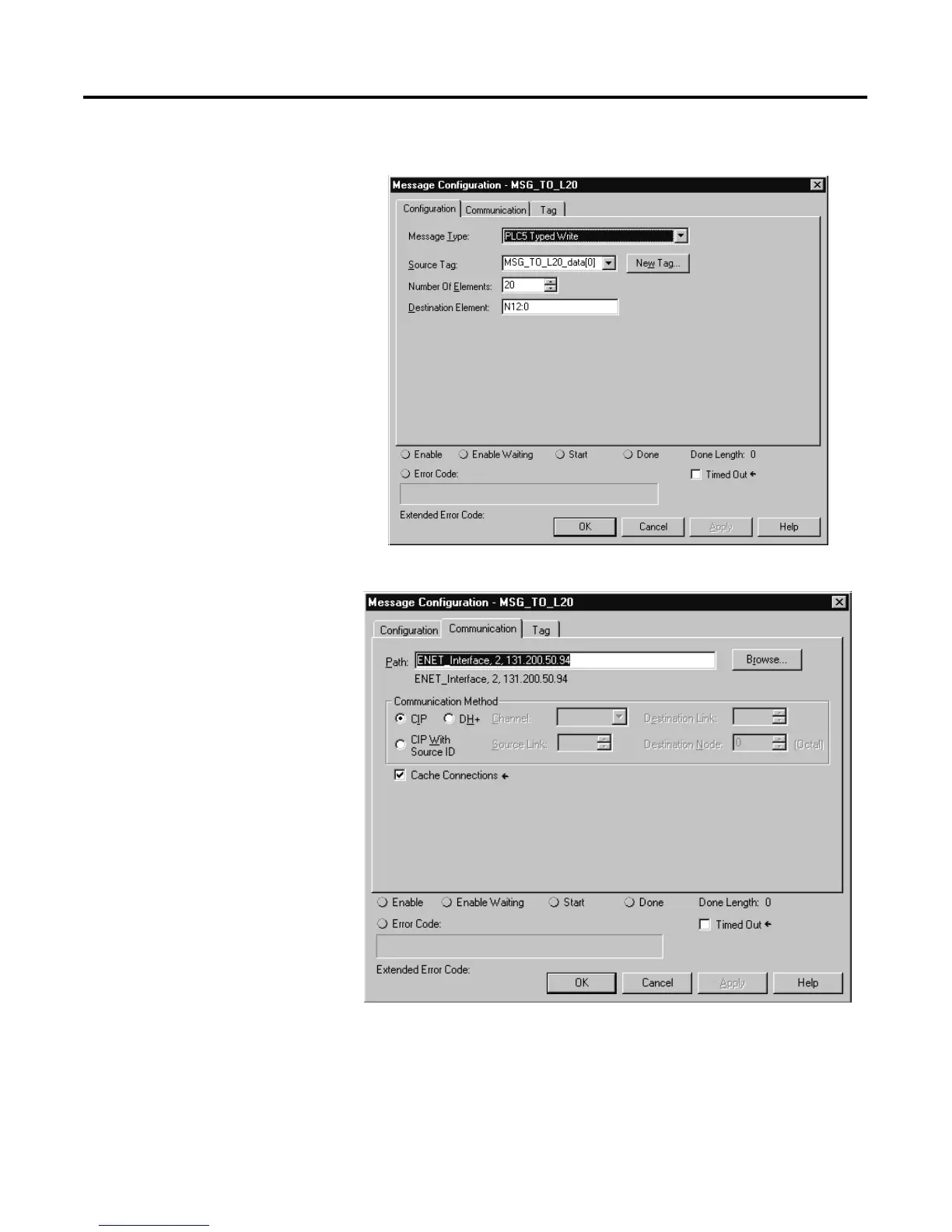

Figure 7.22 ControlLogix 5550 Rung 1 Message Configuration Tab

Figure 7.23 ControlLogix 5550 Rung 1 Message Communication Tab

The 1761-NET-ENI modules do not support CIP commands.

Therefore, all commands between controllers used in this application

example are PLC_5 Typed Write commands. These commands require

a PLC-5 type address to send the data to the receiving controller. Such
