Publication 1761-UM006A-EN-P - February 2001
7-22 Connecting 1769-L20 CompactLogix Controllers on Ethernet

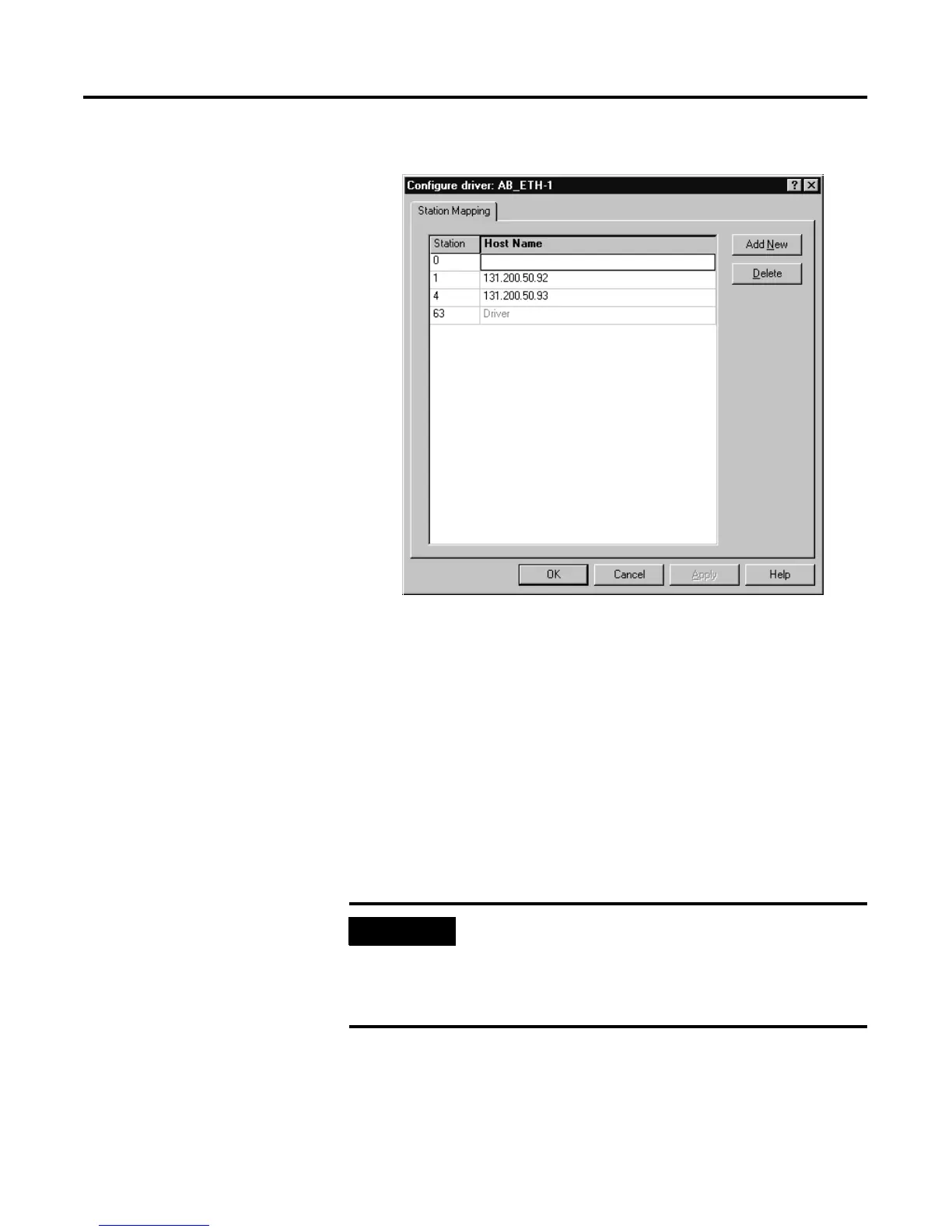

Figure 7.25 Configure Ethernet Driver Using RSLinx
From the RSLOGIX500 programming software, you should now be
able to download your SLC 5/05 program. Then, from the
RSLOGIX5000 software you should now be able to download your
5550 controller program.
Once all programs are downloaded to their respective controllers,
place each controller into the RUN mode and a MSG from each
controller will be sent to each of the other controllers. Each controller
will only send one MSG at any given time. Go online with the SLC
5/05 and 5550 controllers to verify the successful completion of their
Messages.
IMPORTANT
You cannot go online with the -L20 controller at this
time, but you can verify that the -L20 messages are
completing successfully by looking at the destination
in the two other controllers where the -L20 is writing
data. Verify that the data is being received.
