PanelView 600 Terminals 7
41061-004-01(D)

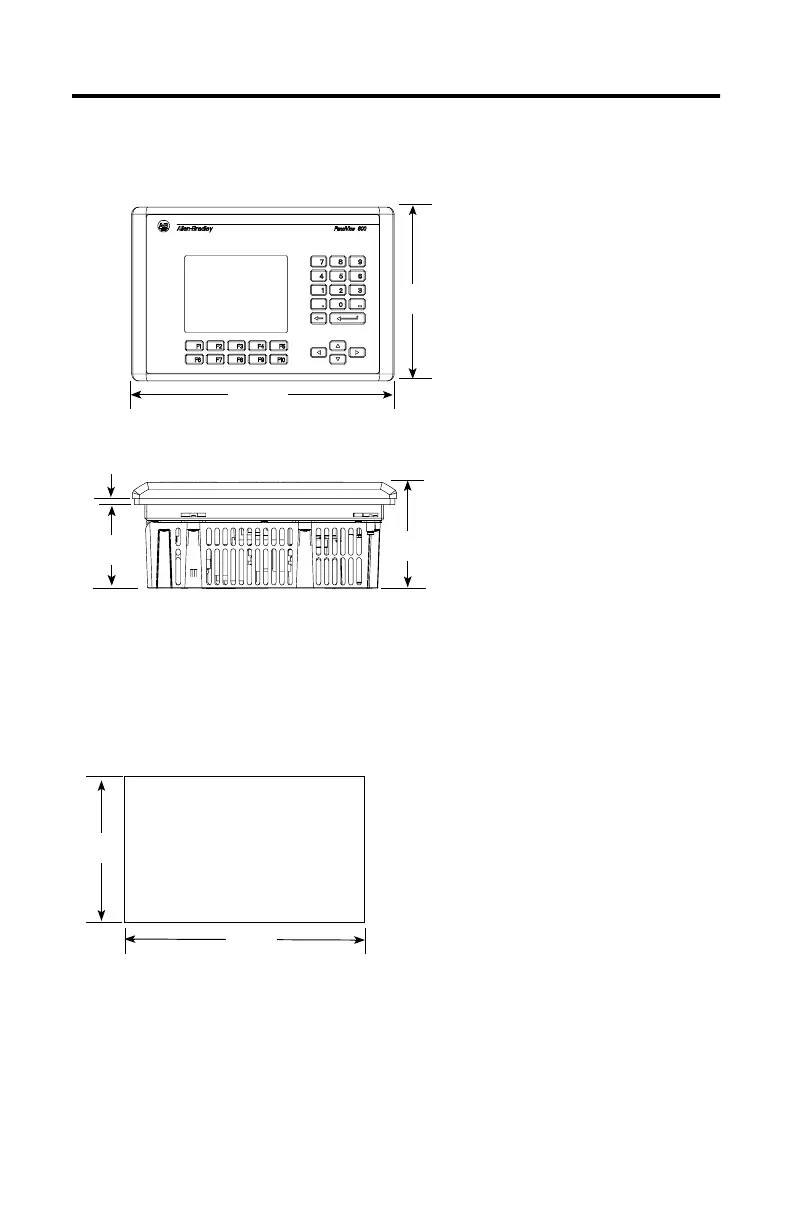

Mounting Dimensions
Cutout Dimensions
Use the full size template shipped with the terminal to mark the cutout
dimensions. The figure below shows a reduced size cutout.
192 mm
(7.55 in)
290 mm
(11.40 in)
116 mm
(4.57 in)
91 mm
(3.60 in)
6.9 mm
(0.27 in)
Top View
167 mm
(6.57 in)
264 mm
(10.39 in)
Recommended Panel
Cutout Dimensions
PanelView 600 Terminals

Allen-Bradley PanelView 600 Specifications

General

Input Type	Touchscreen
Power Supply	24V DC
Communication Ports	RS-232
Operating Temperature	0°C to 50°C
Relative Humidity	5% to 95% non-condensing
