Configuring Your RS-232 ASCII Module 2-5
Adding I/O Modules to Your Network
After you add the communication device, you must add the POINT
I/O modules connected to the scanner on the PointBus.

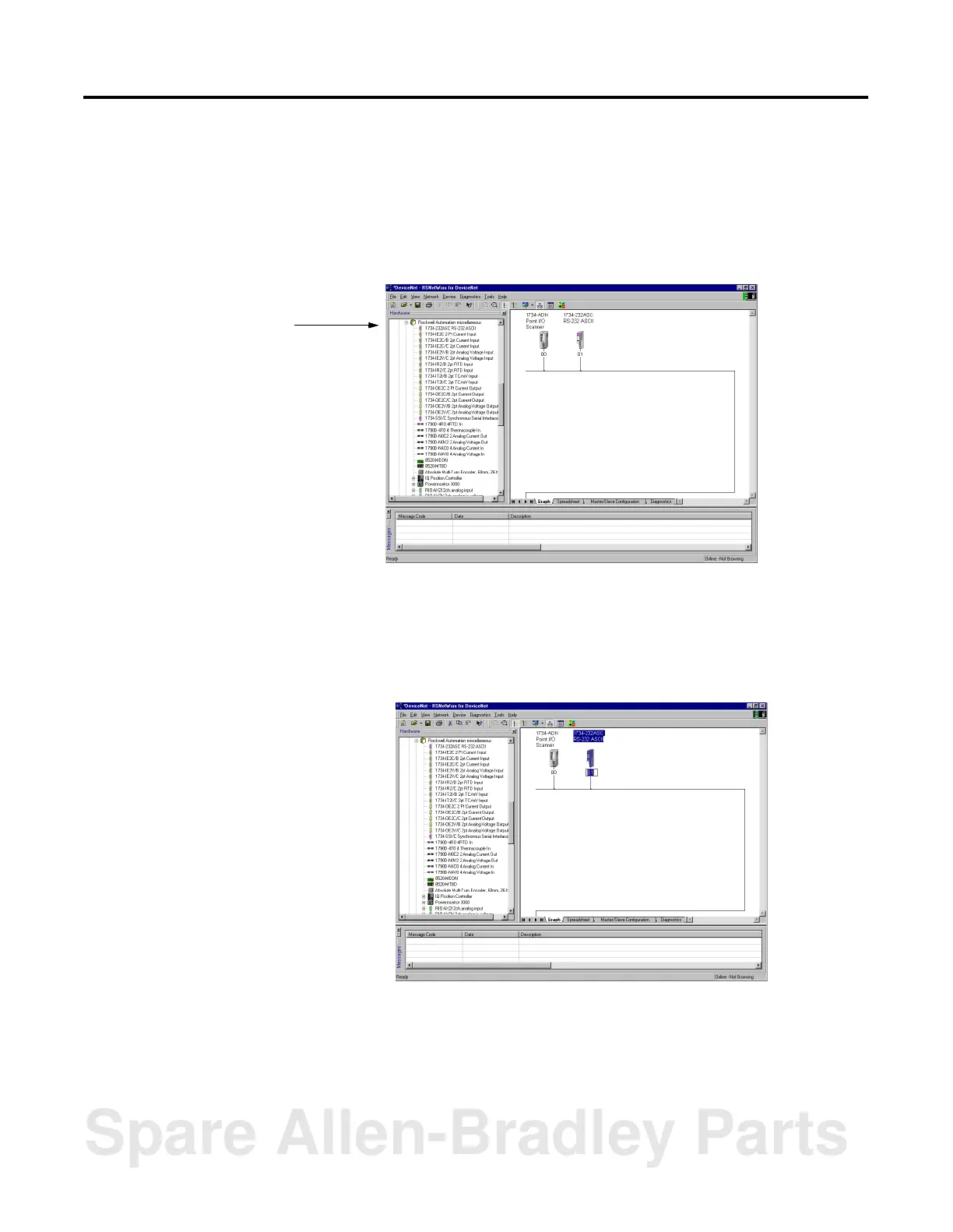

1. Add modules as shown below.
The out-of-the-box node setting for 1734 modules is 63. You can
change the setting by using the node commissioning tool. The
node commissioning tool is available either online or offline.
2. Double-click on the module to change the node address.
1. Click here to expand the list
of Specialty modules.
2. Double-click on the catalog
number to choose the
module. You can also click
and drag the module name
onto the network.
