Chapter 3 Lift and Mount the Drive

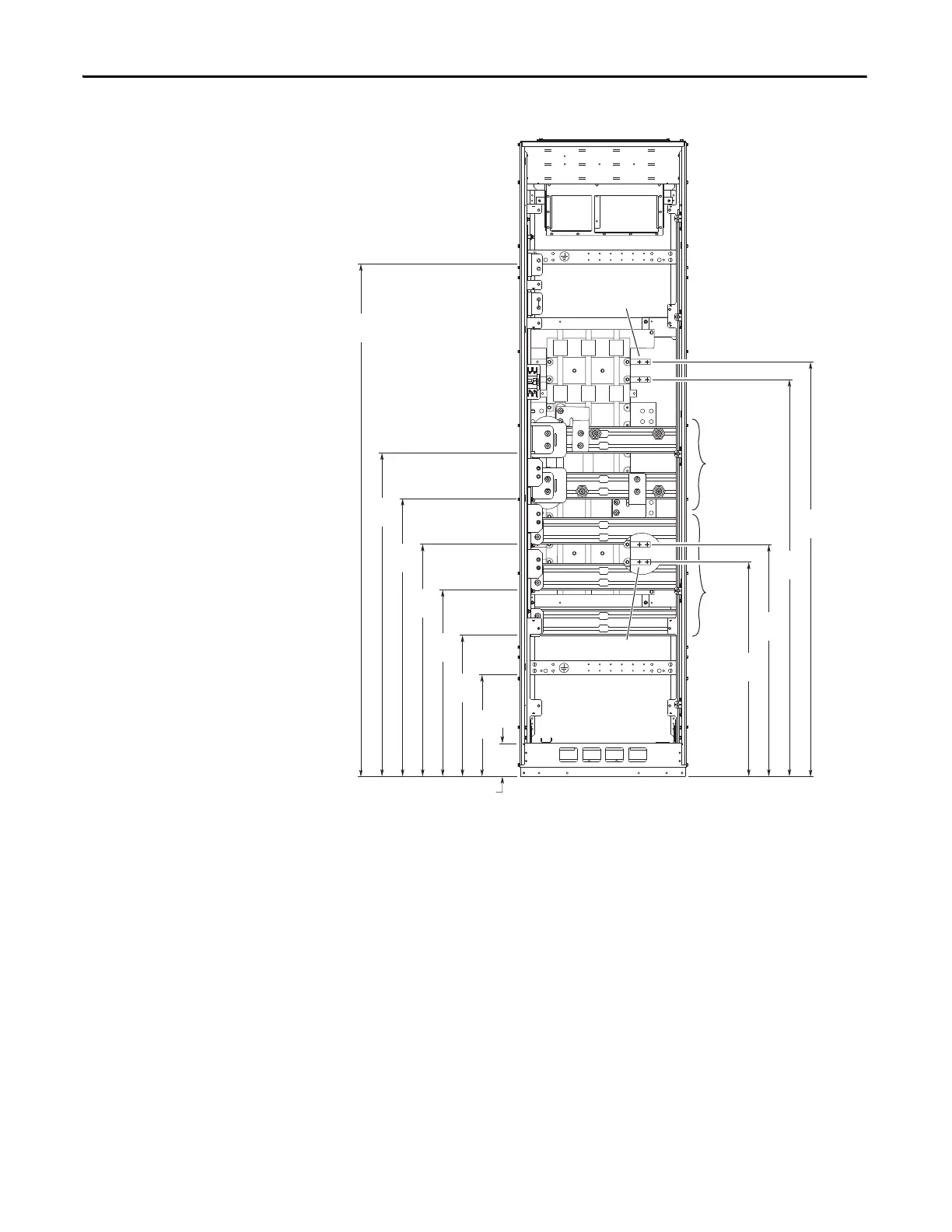

Figure 77 - Bus Bar Dimensions (Common DC Input)
(1) The UPS rail is only installed when the P30 UPS Control Bus option is selected.
Dimensions are in millimeters and (inches).
369
(14.5)
511
(20.1)
671
(26.4)
841
(33.1)
1006
(39.6)
1171
(46.1)
1854
(73.0)
125
(4.9)
776
(31.0)
839
(33.0)
1436
(57.0)
1499
(59.0)
PE
PE
DC+
DC-
U / T1
V / T2
W / T3
Control Rail
UPS Rail
(1)
