Chapter 3 Lift and Mount the Drive

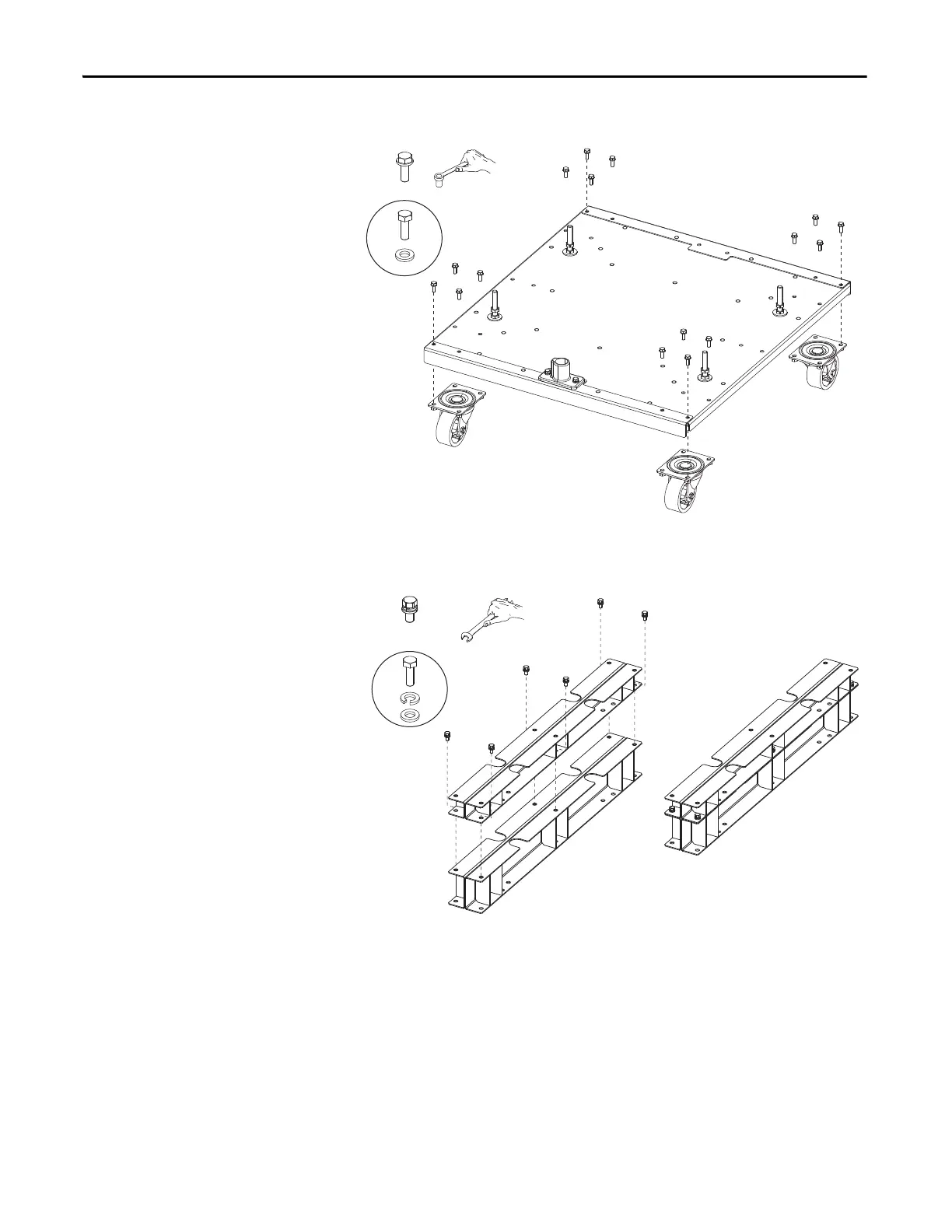

3. Remove the bolts securing the casters to chassis.
4. Select the spacer or spacers required. Combine spacers using bolts
provided as needed.
M6 x 1.0
10 mm
M6 x 1.0
11.8 N•m (104 lb•in)
10 mm
