Allen-Bradley PowerFlex 20-750-ENC-1

Rockwell Automation Publication 750-IN001O-EN-P - October 2014 135
Lift and Mount the Drive Chapter 3

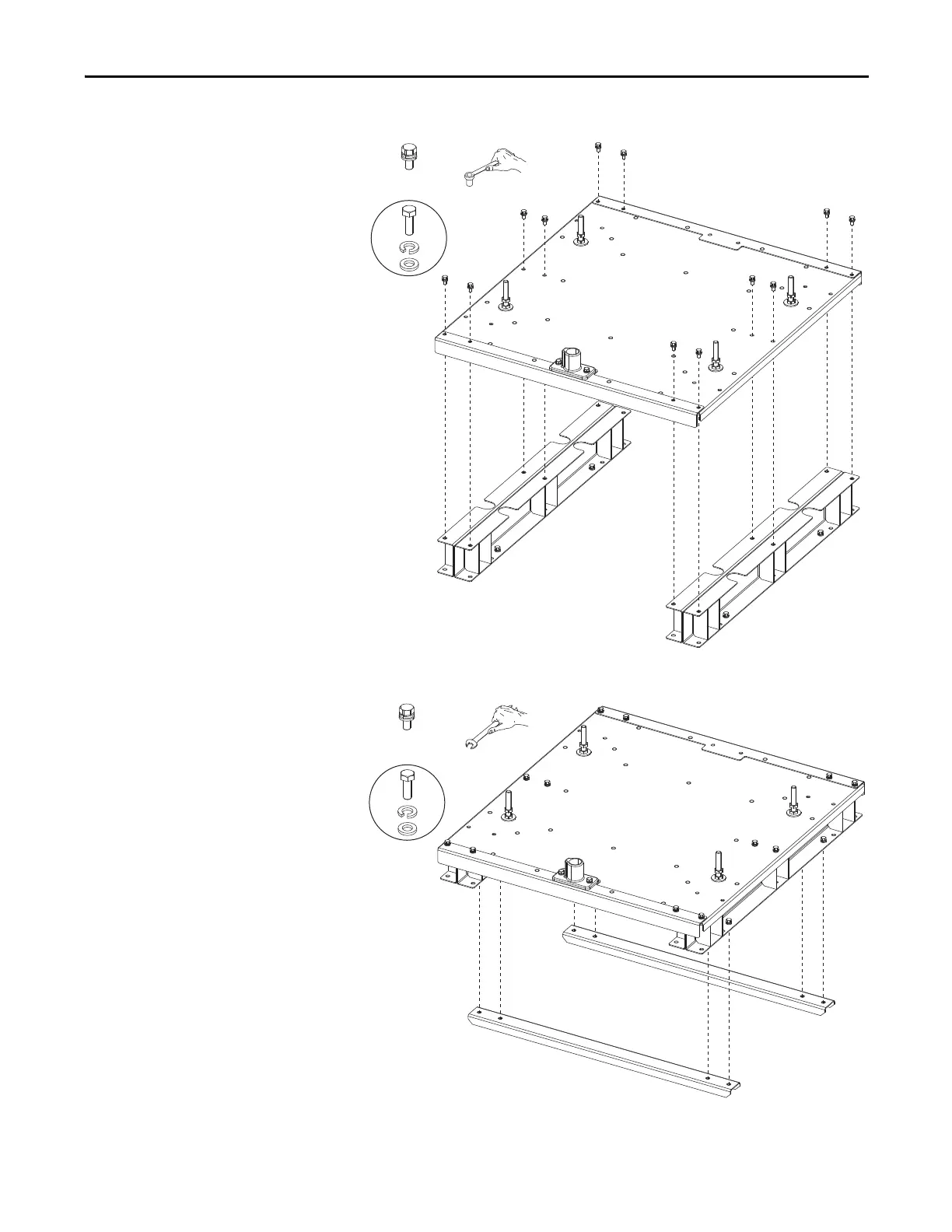

5. Bolt the spacer or spacer assembly to the bottom of the cart chassis.
6. Bolt the cross beams to the bottom of the spacers.
M6 x 1.0
11.8 N•m (104 lb•in)
10 mm
M6 x 1.0
11.8 N•m (104 lb•in)
10 mm
