Chapter 3 Lift and Mount the Drive

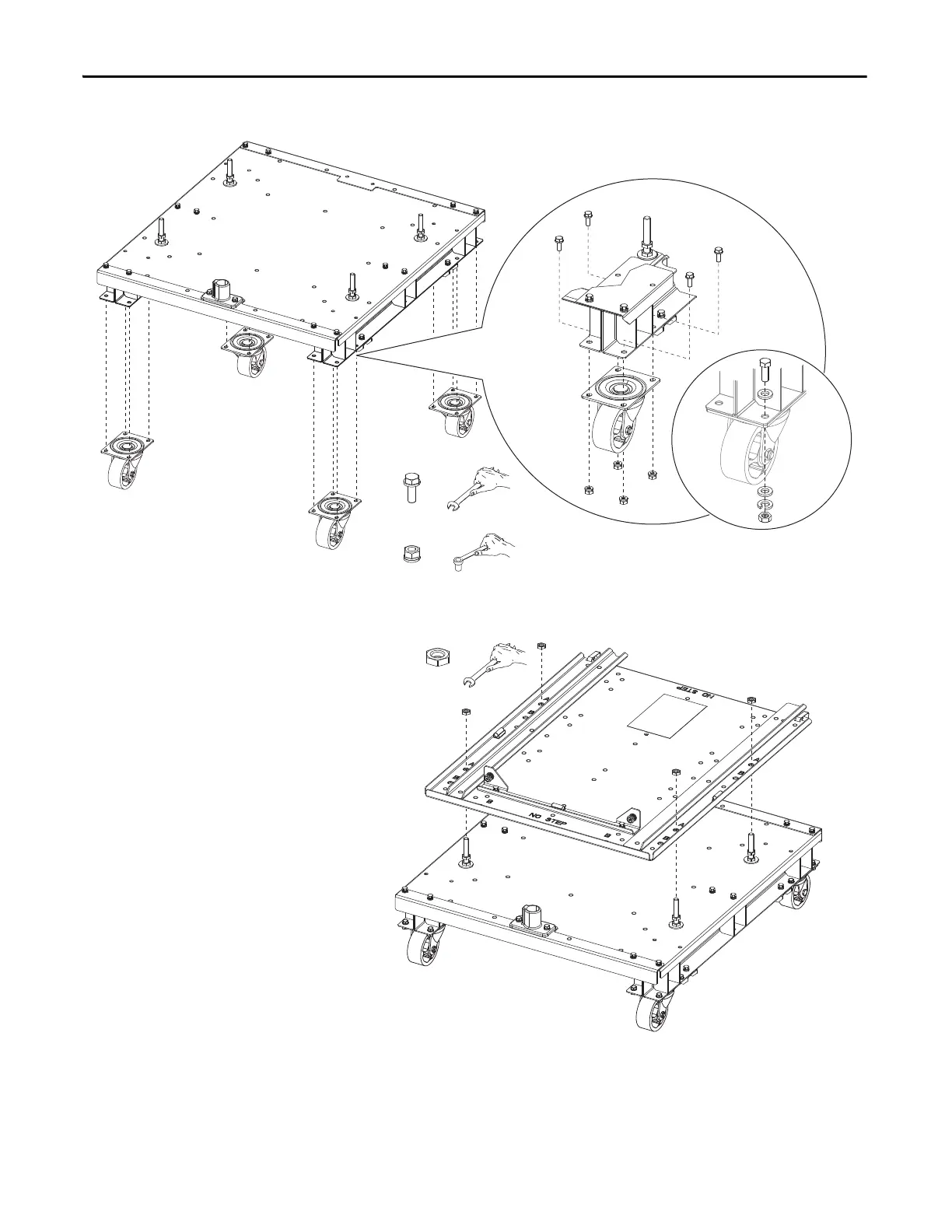

7. Bolt the casters to the bottom spacer.
8. Determine reach required and install the deck in Position A or Position B.
See next section for details.
M6 x 1.0
11.8 N•m (104 lb•in)
10 mm
M10 x 1.5
17 mm
