Power Wiring Chapter 4

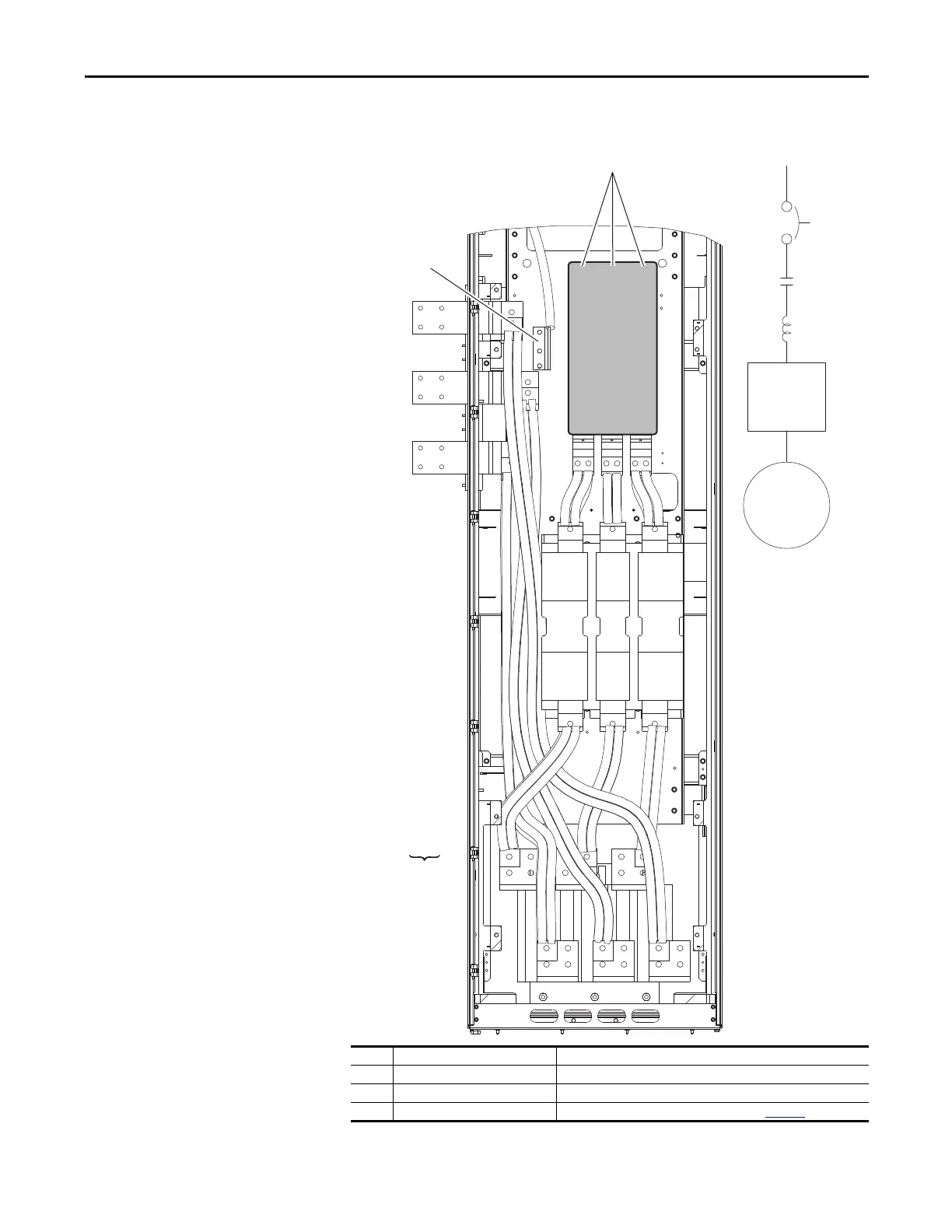

Figure 105 - Option P3 or P5 Disconnect, Option P11 Input Contactor, and Option L1 or L3 Input
Reactor (Floor Mount Frame 8 Only)
No. Name Description
➊ R/L1, S/L2, T/L3 Three-phase input power connection.
➋ PE Three-phase input ground.
➌ U/T1, V/T2, W/T3 Motor connection made at drive power bus. See page 156
.
➋
➌
U / T1
V / T2
W / T3
➊
Drive
Motor
P3 or P5
P11
L1 or L3
To Next Page
