Rockwell Automation Publication 750-IN001O-EN-P - October 2014 205
Power Wiring Chapter 4

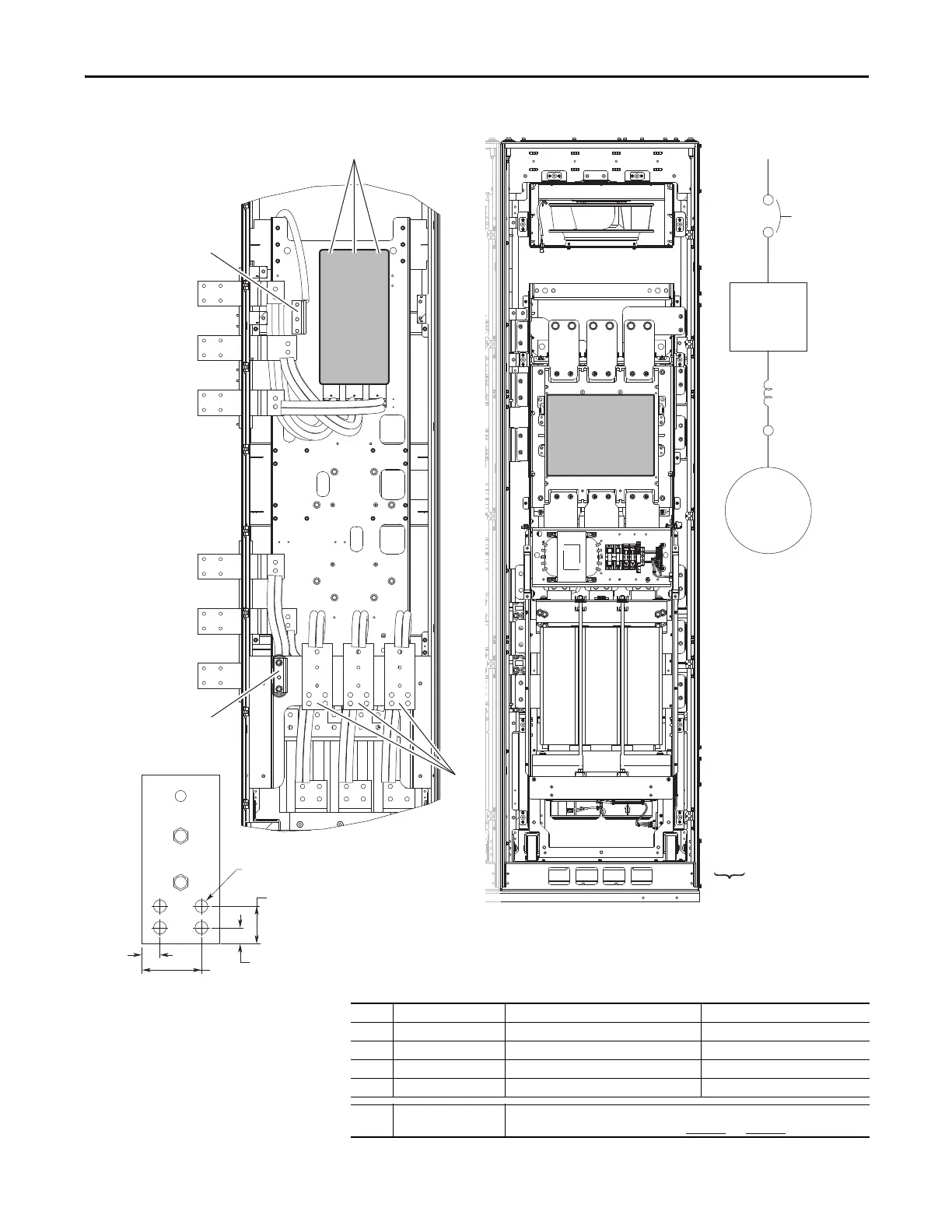

Figure 109 - Option P3 or P5 Disconnect and Option L2 or L4 Output Reactor
➍
ø15 (0.6)
4 Places
44.5
(1.75)
19.1
(0.75)
70.5
(2.80)
21.5
(0.85)
➌
➋
➎
➍
U / T1
V / T2
W / T3
➊
Drive
Motor
P3 or P5
L2 or L4
Output Terminal
Floor Mount Frame 8 Floor Mount Frame 9
No. Name Description Recommended Torque
➊ R/L1, S/L2, T/L3 Three-phase input power connection. Factory Installed
➋ PE Three-phase input ground. 38.0 N•m (336 lb•in)
➌ PE Three-phase motor ground. 38.0 N•m (336 lb•in)
➍ U/T1, V/T2, W/T3 Motor connection. 38.0 N•m (336 lb•in)
➎ R/L1, S/L2, T/L3 Three-phase input power for frame 9 drives lands on the horizontal bus bars behind
the cabinet options rollout assembly. See page 164
and page 165.
