214 Rockwell Automation Publication 750-IN001O-EN-P - October 2014
Chapter 4 Power Wiring

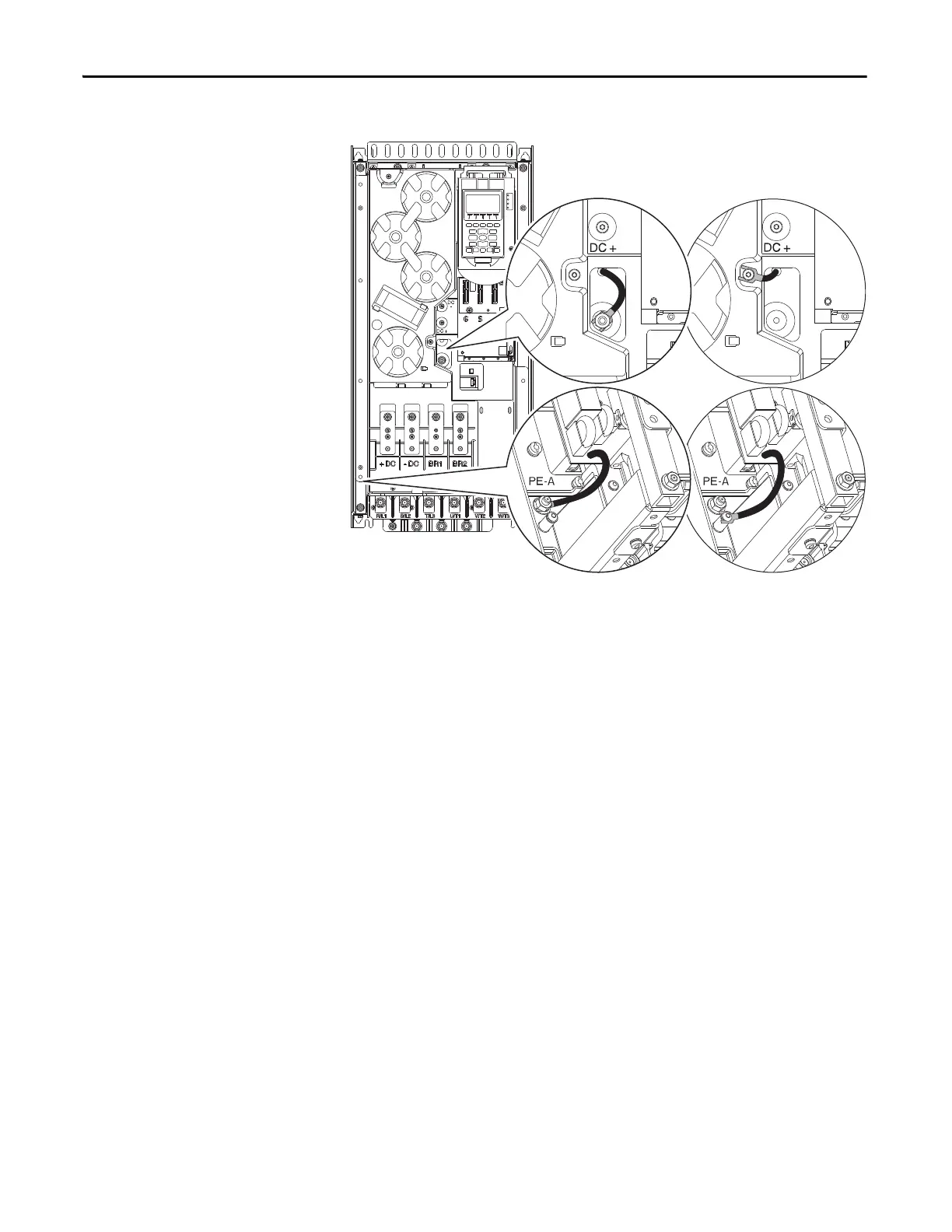

Figure 117 - Wall Mount Frame 6 Jumper Wire Locations
When jumper wires are connected:
• Recommended torque (screws and nuts) = 1.36 N•m (12.0 lb•in)
• Recommended hex socket = 7 mm
• Recommended screwdriver = T20 Hexalobular
PE-B
E4
PE-B
E4
Disconnected
Connected
MOV
Common Mode
