Allen-Bradley PowerFlex 20-750-ENC-1

Rockwell Automation Publication 750-IN001O-EN-P - October 2014 27
Prepare for Installation Chapter 2

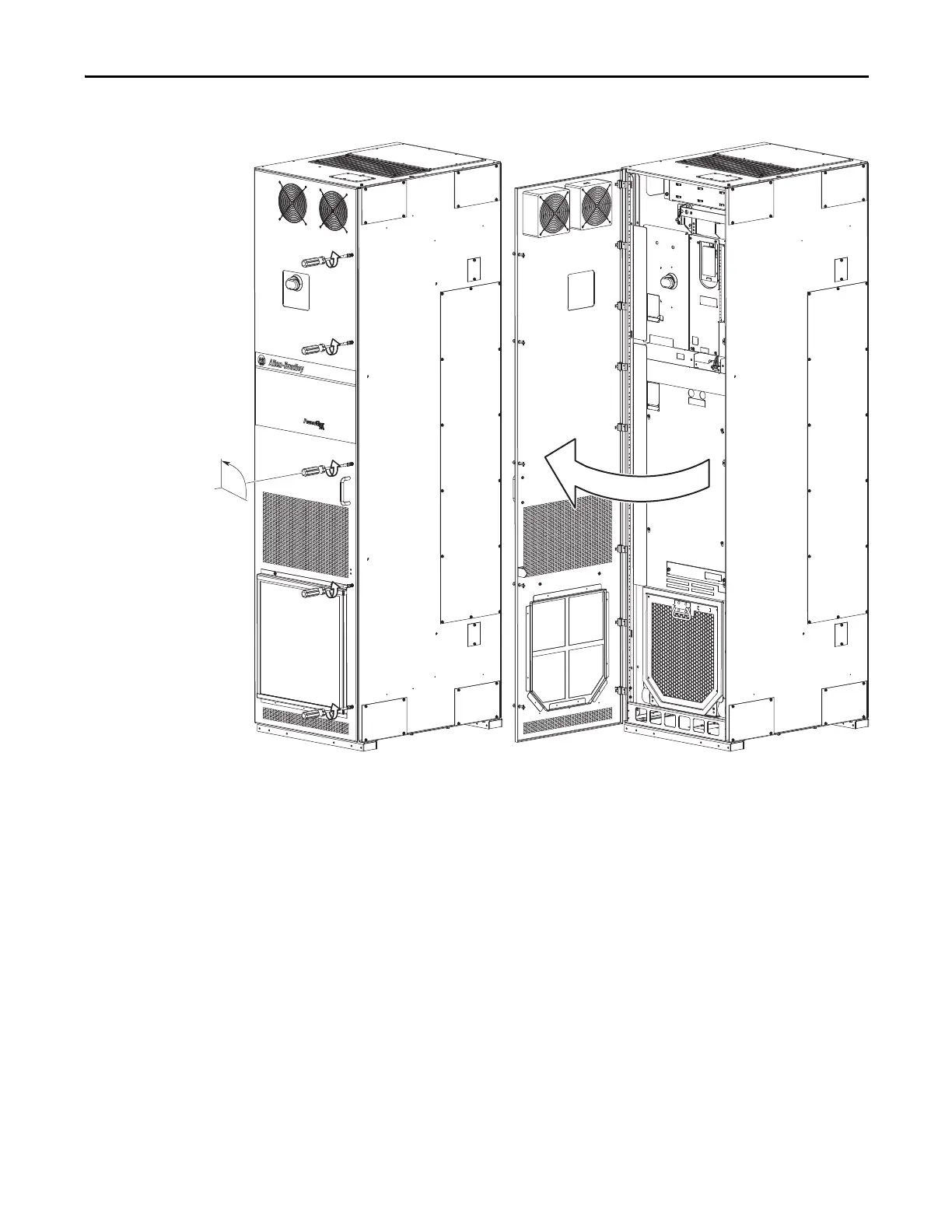

Figure 6 - Floor Mount Frames 8 and Larger Cabinet Access Door (All Enclosure Types)
To release or secure door:
• Recommended screwdriver = 9.5 mm (0.375 in.) flat
90°
