30 Rockwell Automation Publication 750-IN001O-EN-P - October 2014
Chapter 2 Prepare for Installation

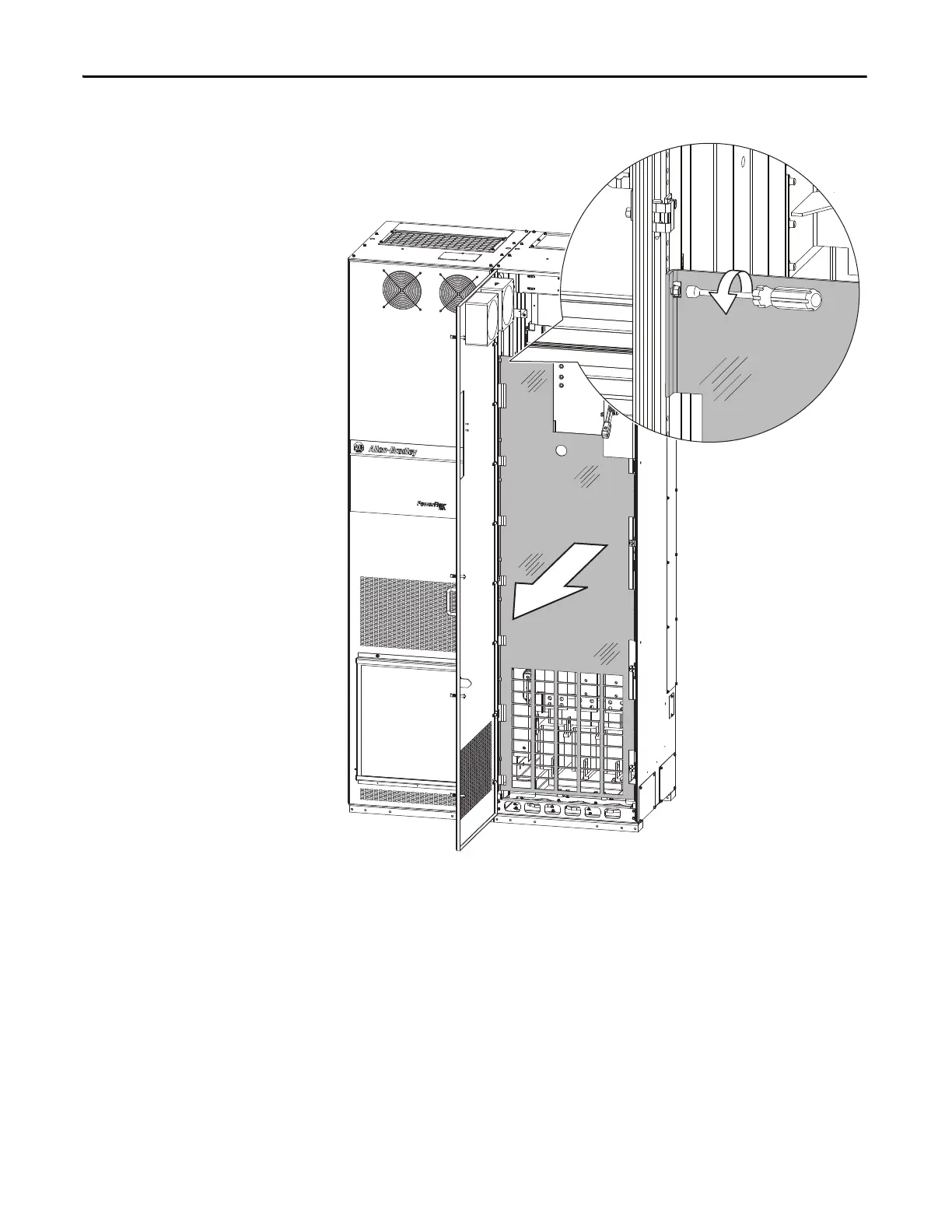

Figure 9 - Full Cabinet Options Bay Guard - Floor Mount Frame 8
To remove the full bay guard, loosen the ten M5 screws. It is not necessary to
remove these screws.
When the full bay guard is replaced:
• Recommended torque = 2.8 N•m (25.0 lb•in)
• Recommended driver = 8 mm Hexagonal socket
