Rockwell Automation Publication 750-IN001O-EN-P - October 2014 67
Lift and Mount the Drive Chapter 3

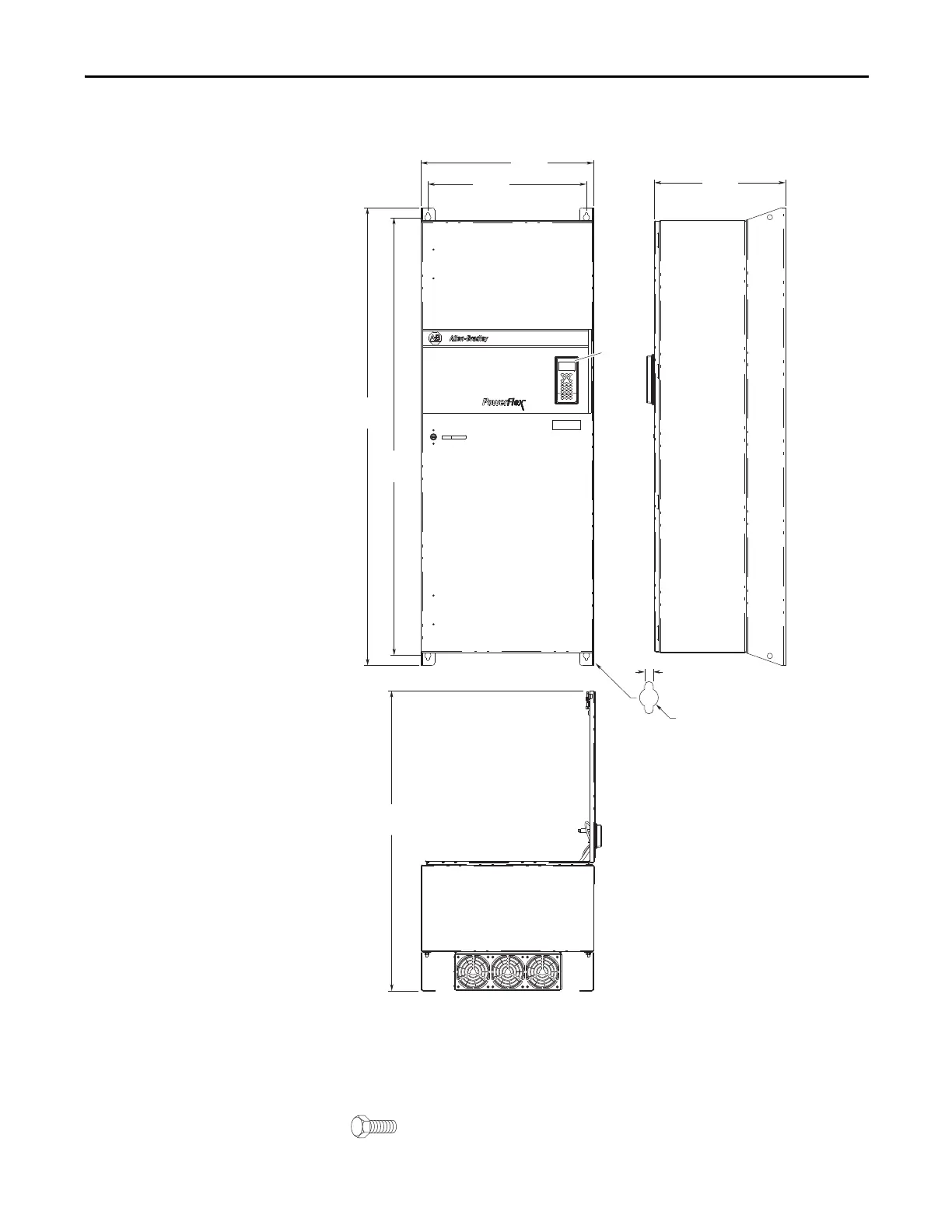

Figure 29 - IP54, NEMA/UL Type 12, Wall Mount Frame 7
➊ Human Interface Module, Catalog Number 20-HIM-C6S, required to meet
enclosure rating.
Dimensions are in millimeters and (inches).
M10 (7/16 in.) mounting hardware recommended.
558.8
(22.00)
609.6
(24.00)
464.8
(18.30)
1614.0
(63.54)
1543.1
(60.75)
10.5 (0.41)
ø22.0 (0.87)
1058.4
(41.67)
➊
