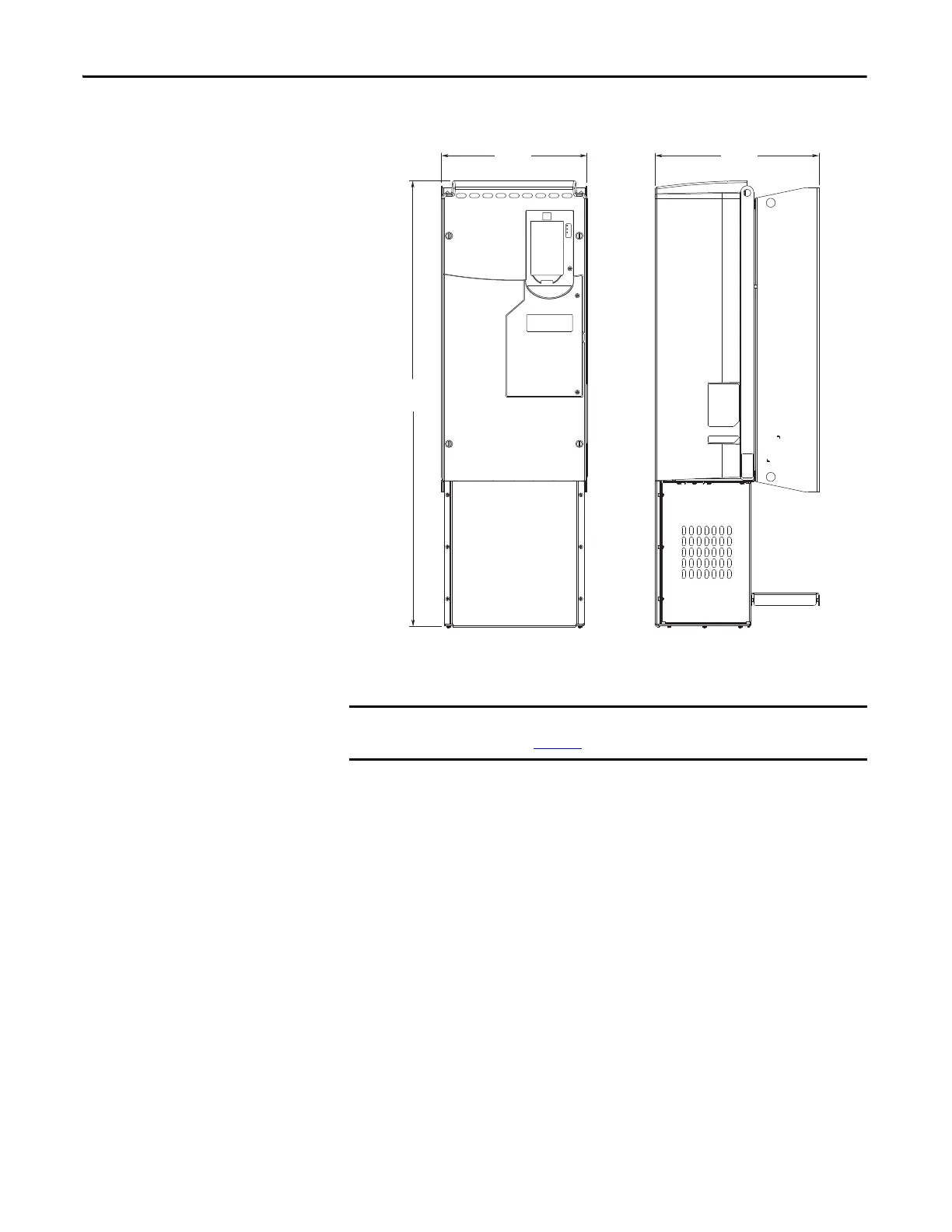

Figure 28 - NEMA/UL Type 1 Kit, Wall Mount Frame 6
Dimensions are in millimeters and (inches).
IMPORTANT
NEMA Type 1 Kit (20-750-NEMA-F6) does not change the mounting
dimensions in Figure 25
.
308.0
(12.13)
346.7
(13.65)
945.1
(37.21)
