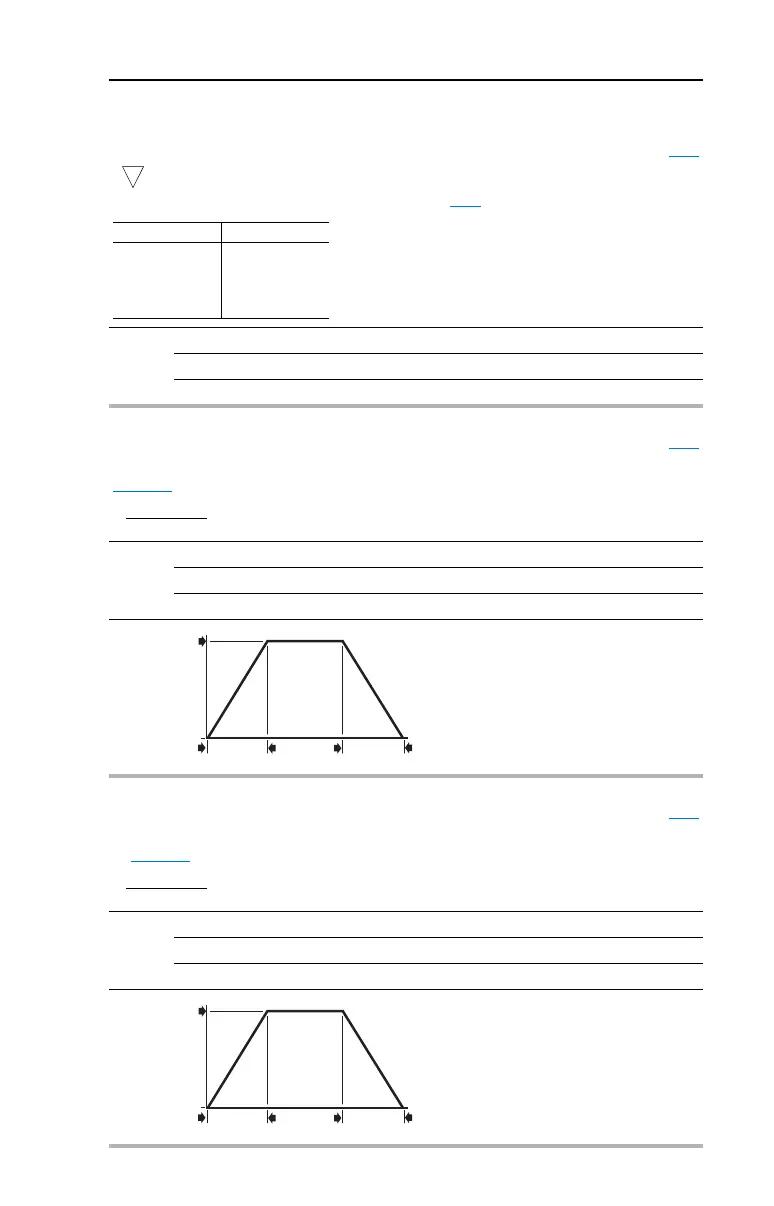

Allen-Bradley PowerFlex 4 User Manual

Programming and Parameters 3-15
Advanced Program Group (continued)
A056 [Relay Out Level] Related Parameter(s): A055
32 bit parameter.
Sets the trip point for the digital output relay if the value of A055
[Relay Out Sel] is 6, 7, 8, 10 or 20.
Values Default 0.0
Min/Max: 0.0/9999
Display: 0.1
32
A055 Setting A056 Min/Max
6
7
8
10
20
0/240 Hz
0/180%
0/815 Volts
0/100%
0/1
A067 [Accel Time 2] Related Parameter(s): P039
When active, sets the rate of acceleration for all speed increases except jog. Refer to the flowchart on
page 1-19
for details.
Values Default 20.0 Secs
Min/Max: 0.0/600.0 Secs
Display: 0.1 Secs
Maximum Freq
Accel Time
Accel Rate
=
Speed
0
Time
P035 [Maximum Freq]
P039 or A067
[Accel Time x]
P040 or A068
[Decel Time x]
0
Acceleration
D
eceleration
A068 [Decel Time 2] Related Parameter(s): P040
When active, sets the rate of deceleration for all speed decreases except jog. Refer to the flowchart
on page 1-19
for details.
Values Default 20.0 Secs
Min/Max: 0.1/600.0 Secs
Display: 0.1 Secs
Maximum Freq
Decel Time
Decel Rate
=
Speed
0
Time
P035 [Maximum Freq]
P039 or A067
[Accel Time x]
P040 or A068
[Decel Time x]
0
Acceleration
D
eceleration
