B-6 Accessories and Dimensions

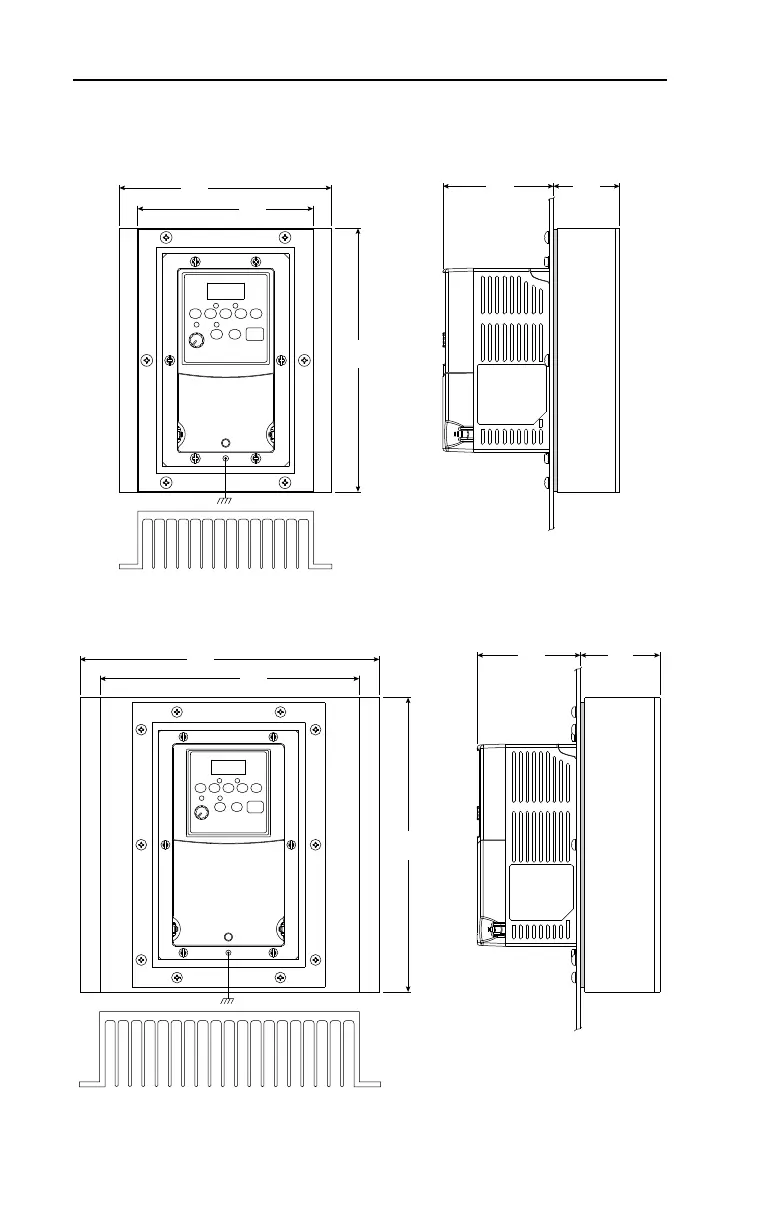

Figure B.3 PowerFlex 4 Flange Mount Drives – Dimensions are in millimeters and
(inches)
175
(6.89)
210
(8.27)
54.7
(2.15)
92.8
(3.65)
145
(5.71)
244
(9.61)
250
(9.84)
94.3
(3.71)
63.1
(2.48)
214
(8.43)
Frame A
Frame B

Allen-Bradley PowerFlex 4 Specifications

General

Series	PowerFlex 4
Horsepower	0.2-3 HP
Enclosure	IP20
Output Frequency	0-400 Hz
Power Range	0.2…2.2 kW (0.25…3 HP)
Communication Options	RS-485
Storage Temperature	-40…85 °C (-40…185 °F)
Relative Humidity	5-95% non-condensing
Control Method	Volts per Hertz
