Appendix B Accessories and Dimensions

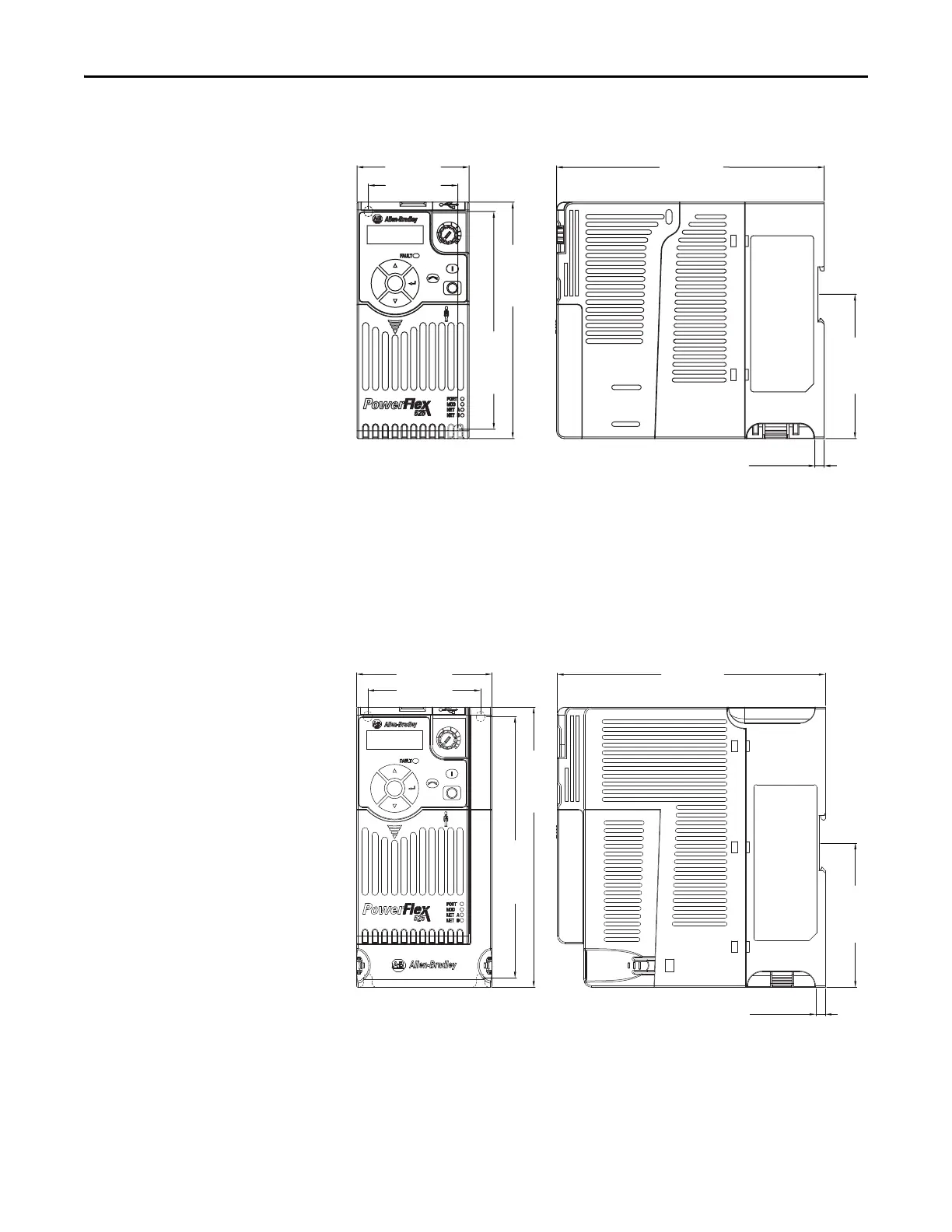

IP 20/Open Type – Frame A
IP 20/Open Type – Frame B
72.0 (2.83)
172.0 (6.77)
6.0 (0.24)
57.5 (2.26)
140.0 (5.51)
152.0 (5.98)
92.7 (3.65)
Esc
Sel
Dimensions are in millimeters and (inches)
Esc
Sel
87.0 (3.43)
172.0 (6.77)
72.5 (2.85)
6.0 (0.24)
180.0 (7.09)
92.7 (3.65)
168.0 (6.61)
Dimensions are in millimeters and (inches)

Allen-Bradley PowerFlex 525 Specifications

General

Horsepower	0.5-30 HP
kW	0.4-22 kW
Input Voltage	200-240V AC, 380-480V AC
Enclosure	IP20, NEMA/UL Type 1
Communications	EtherNet/IP
Control Methods	V/Hz, Sensorless Vector
STO	Safe Torque Off (STO)
Output Voltage	0-Input Voltage
Operating Temperature	-20°C to 50°C (-4°F to 122°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Relative Humidity	5-95% non-condensing
Dimensions	Varies by model
Weight	Varies by model
