Allen-Bradley PowerFlex 525 User Manual

222 Rockwell Automation Publication 520-UM001A-EN-E - February 2013
Appendix I Control Diagrams

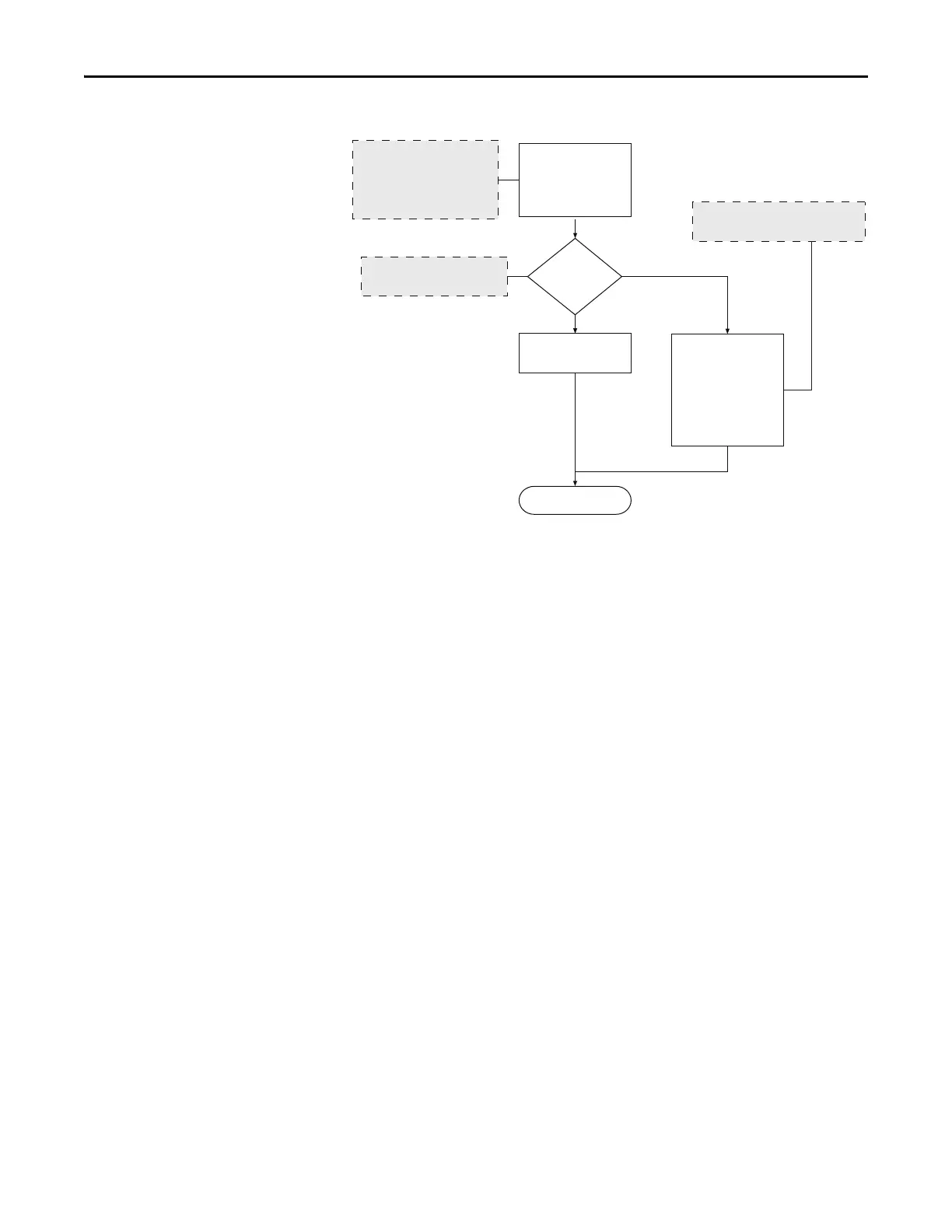

Adjusting Speed Control
Parameters
These settings show how to adjust the speed control for motor tuning.
Run
Speed Loop Bandwidth:
A511 [Freq 1 BW] = 10 Hz
A513 [Freq 2 BW] = 10 Hz
A515 [Freq 3 BW] = 10 Hz
Set Speed Controller Gain
automatically
A509 = 0 (Automatic)
A509 = 1 (Manual)
Set Speed Controller Gain
manually:
A521 [Freq 1 Kp]
A522 [Freq 1 Ki]
A523 [Freq 2 Kp]
A524 [Freq 2 Ki]
A525 [Freq 3 Kp]
A526 [Freq 3 Ki]
Increase the bandwidth to obtain
faster speed response. If oscillation
occurs, decrease the bandwidth.
For general use, set A509
[Speed Reg Sel] to 0 (Automatic)
Set A509
[Speed Reg Sel]
For [Freq x Kp], gradually increase by 1%
For [Freq x Ki], gradually increase by 0.1 s

Allen-Bradley PowerFlex 525 Specifications

General

Horsepower	0.5-30 HP
kW	0.4-22 kW
Input Voltage	200-240V AC, 380-480V AC
Enclosure	IP20, NEMA/UL Type 1
Communications	EtherNet/IP
Control Methods	V/Hz, Sensorless Vector
STO	Safe Torque Off (STO)
Output Voltage	0-Input Voltage
Operating Temperature	-20°C to 50°C (-4°F to 122°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Relative Humidity	5-95% non-condensing
Dimensions	Varies by model
Weight	Varies by model
