Drive Programming Tools
Some features in the PowerFlex 525 drive are not supported by older
configuration software tools. It is strongly recommended that customers using
such tools migrate to RSLogix 5000 (version 17.0 or greater) or Logix Designer
(version 21.0 or greater) with Add-On-Profile (AOP), or Connected
Components Workbench (version 3.0 or greater) to enjoy a richer, full-featured
configuration experience.
Language Support

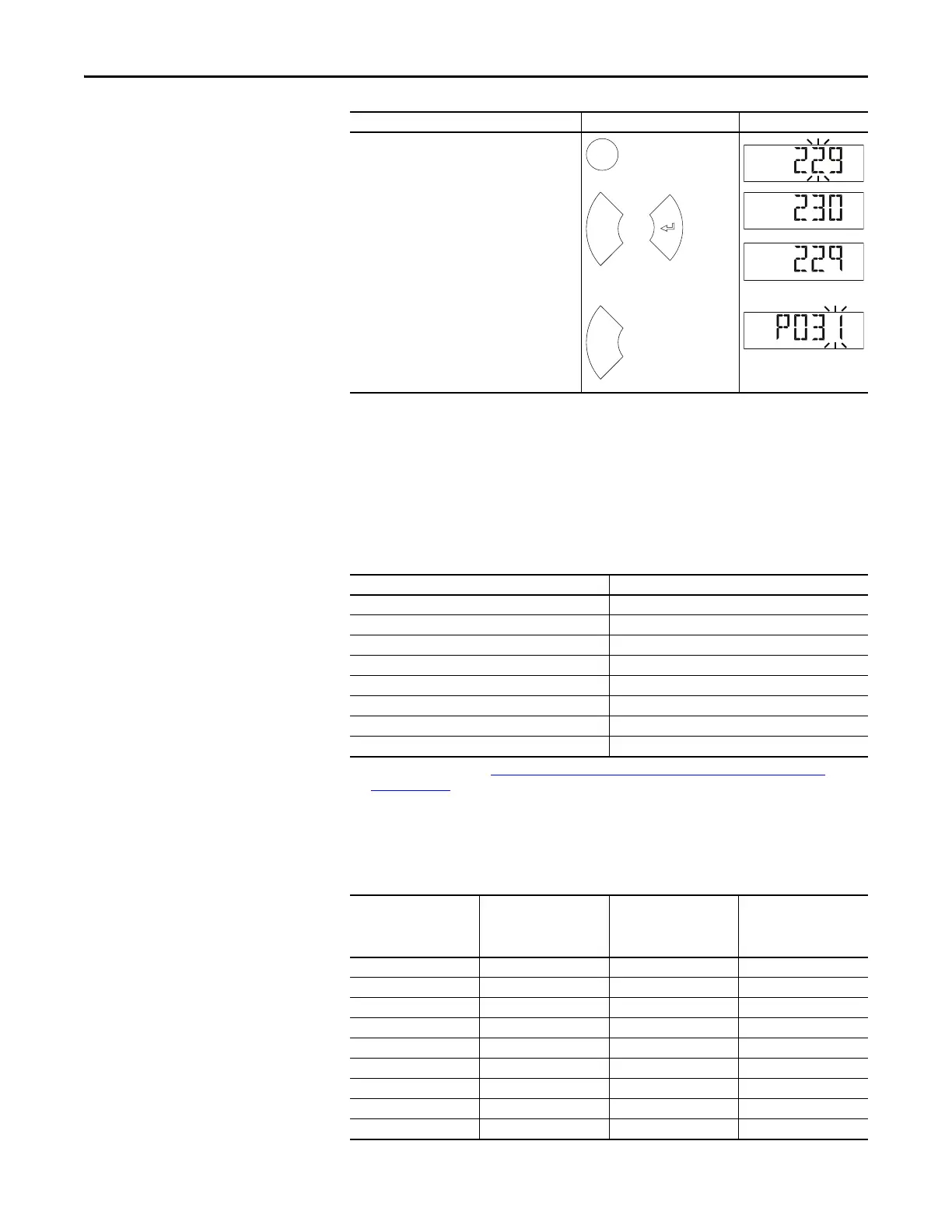

10. If desired, press Sel to move from digit to digit
or bit to bit. The digit or bit that you can change
will flash.
11. Press Esc to cancel a change and exit Program
Mode.
Or
Press Enter to save a change and exit Program
Mode.
The digit will stop flashing and the word
Program on the LCD display will turn off.
12. Press Esc to return to the parameter list.
Continue to press Esc to back out of the
programming menu.
If pressing Esc does not change the display, then
b001 [Output Freq] is displayed. Press Enter or
Sel to enter the group list again.
Step Key(s) Example Display
Sel
PROGR A M
VOLTS
F W D
Esc
or
VOLTS
F W D
VOLTS
F W D
or
Esc
F W D
Description Catalog Number/Release Version
Connected Components Workbench
(1)
(1) Available as a free download at http://ab.rockwellautomation.com/programmable-controllers/connected-components-
workbench-software.
Version 3.0 or greater
Logix Designer Version 21.0 or greater
RSLogix 5000 Version 17.0 or greater
Built-in USB software tool –
Serial Converter Module 22-SCM-232
USB Converter Module 1203-USB
Remote Panel Mount, LCD Display
(2)
(2) Does not support the new dynamic parameter groups (AppView, CustomView), and CopyCat functionality is limited to the linear
parameter list. Communications option cards are not accessible using the remote HIM.
22-HIM-C2S
Remote Handheld, LCD Display
(2)
22-HIM-A3
Language HIM/LCD Display RSLogix 5000
(Version 17.0 or greater) /
Logix Designer
(Version 21.0 or greater)
Connected Components
Workbench
(Version 3.0 or greater)
English Y Y Y
French Y Y Y
Spanish Y Y Y
Italian Y Y Y
German Y Y Y
Japanese – Y –
Portuguese Y Y –
Chinese Simplified – Y Y
Korean – Y –

Allen-Bradley PowerFlex 525 Specifications

General

Horsepower	0.5-30 HP
kW	0.4-22 kW
Input Voltage	200-240V AC, 380-480V AC
Enclosure	IP20, NEMA/UL Type 1
Communications	EtherNet/IP
Control Methods	V/Hz, Sensorless Vector
STO	Safe Torque Off (STO)
Output Voltage	0-Input Voltage
Operating Temperature	-20°C to 50°C (-4°F to 122°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Relative Humidity	5-95% non-condensing
Dimensions	Varies by model
Weight	Varies by model
