Allen-Bradley PowerFlex 70 Installation Instructions

Rockwell Automation Publication 20A-IN009E-EN-P - January 2015 31
PowerFlex 70 Adjustable Frequency AC Drive
To connect or disconnect these devices, refer to pages 32 through 34.
In addition to the configurations described in this section, install an isolation
transformer on an ungrounded distribution system where the line-to-ground
voltages on any phase can exceed 125% of the nominal line-to-line voltage. See
Wiring and Grounding Guidelines for PWM AC Drives, publication
DRIVES-IN001
for more information on impedance grounded and ungrounded
systems.
Jumper Installation, Removal, and Storage
PowerFlex 70 drives utilize plug-in style jumpers. Most drives have a jumper
storage area inside the front cover. Store any extra jumpers, or jumpers that have
been removed, in this storage area.
In some cases, a protective cover is installed over the jumper pins that extend from
the board. If there is a protective cover, remove the cover, install (or remove) the
jumper, and replace the cover.

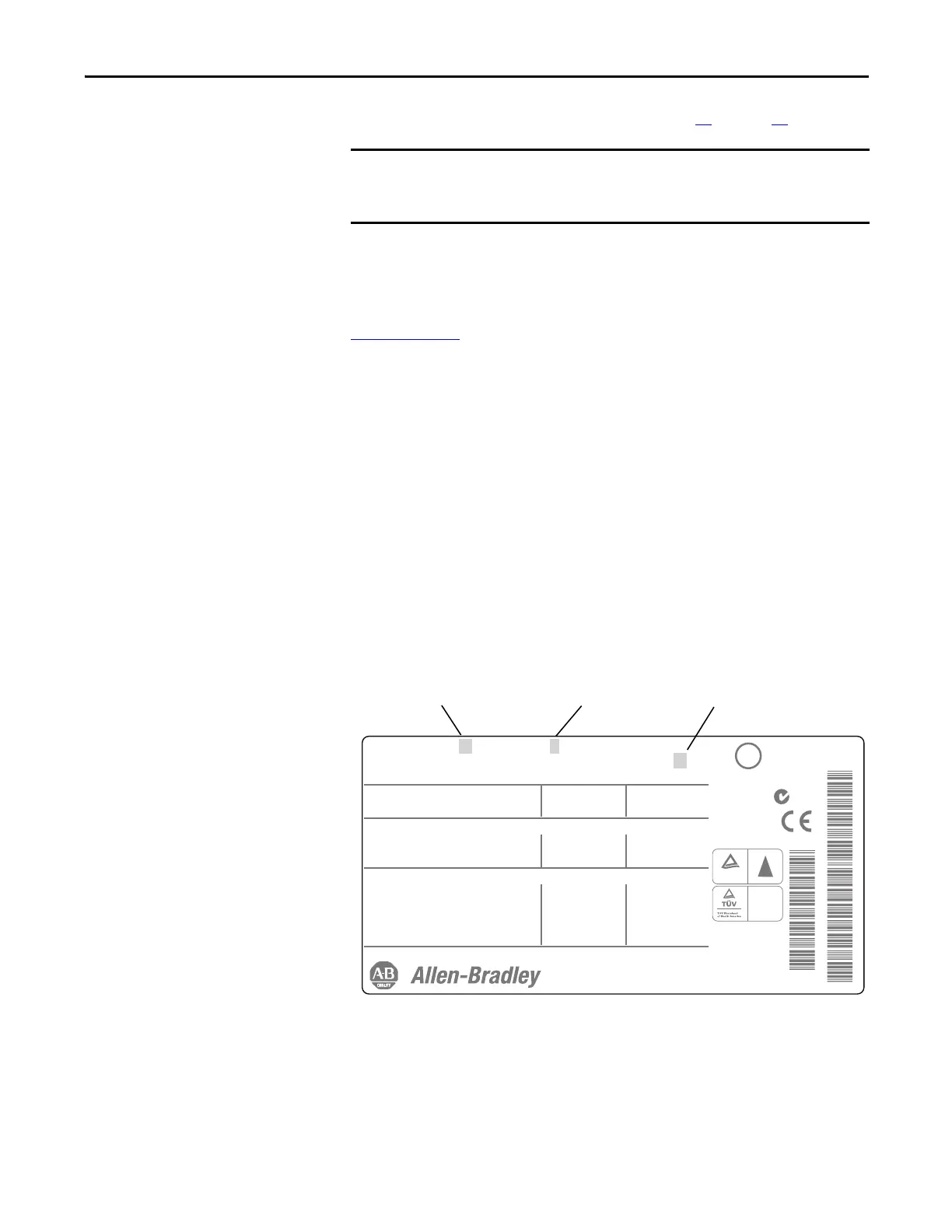

Drive Identification
See the drive nameplate and locate the voltage code, frame, and internal EMC
option (frame B drives). Use this information to locate the proper procedure in
the following tables.
IMPORTANT
Common mode capacitors are required to conform with the EMC directive.
Removing the common mode capacitors causes the drive to be non-compliant
with the EMC directive.
Cat No. 20A D xxx x x xxxxxxx
Mfg. in U.S.A. (FAC1J)
UL TYPE 1/IP20 and 50C (122F) Ambient Limit
Mfd. in 2008 on Jan 19
Serial No. xxxxxxx
Series: A
Frame: A
Original Firmware No. x.xxx
LISTED INDUCTRIAL
CONTROL EQUIPMRNT
966X
U
c
US
L
®
Normal Duty Power
Heavy Duty Power
AC Voltage Range
Amps
Input: 3 Phase, 47-63Hz
Output: 3 Phase, 0-400 Hz
AC Voltage Range
Base Frequency (default)
Continuous Amps
3 Sec / 60 Sec Ovld Amps
xxx kW
xxx kW
342-440
xxx
0-400
50 Hz
xxx
xxx
xxx HP
xxx HP
432-528
xxx
400V Class
See Manual for additional ratings
480V Class
0-460
60 Hz
x
xxx / xx
N223
Serial Number
catalog number/series
TUV
Rheinland
Product Safety
..
Production inspected
W
E
C
EN 50178
Voltage Code Internal EMC Option Frame
