Allen-Bradley PowerFlex 70 User Manual

Rockwell Automation Publication 20A-UM001N-EN-P - July 2013 53
Programming and Parameters Chapter 1

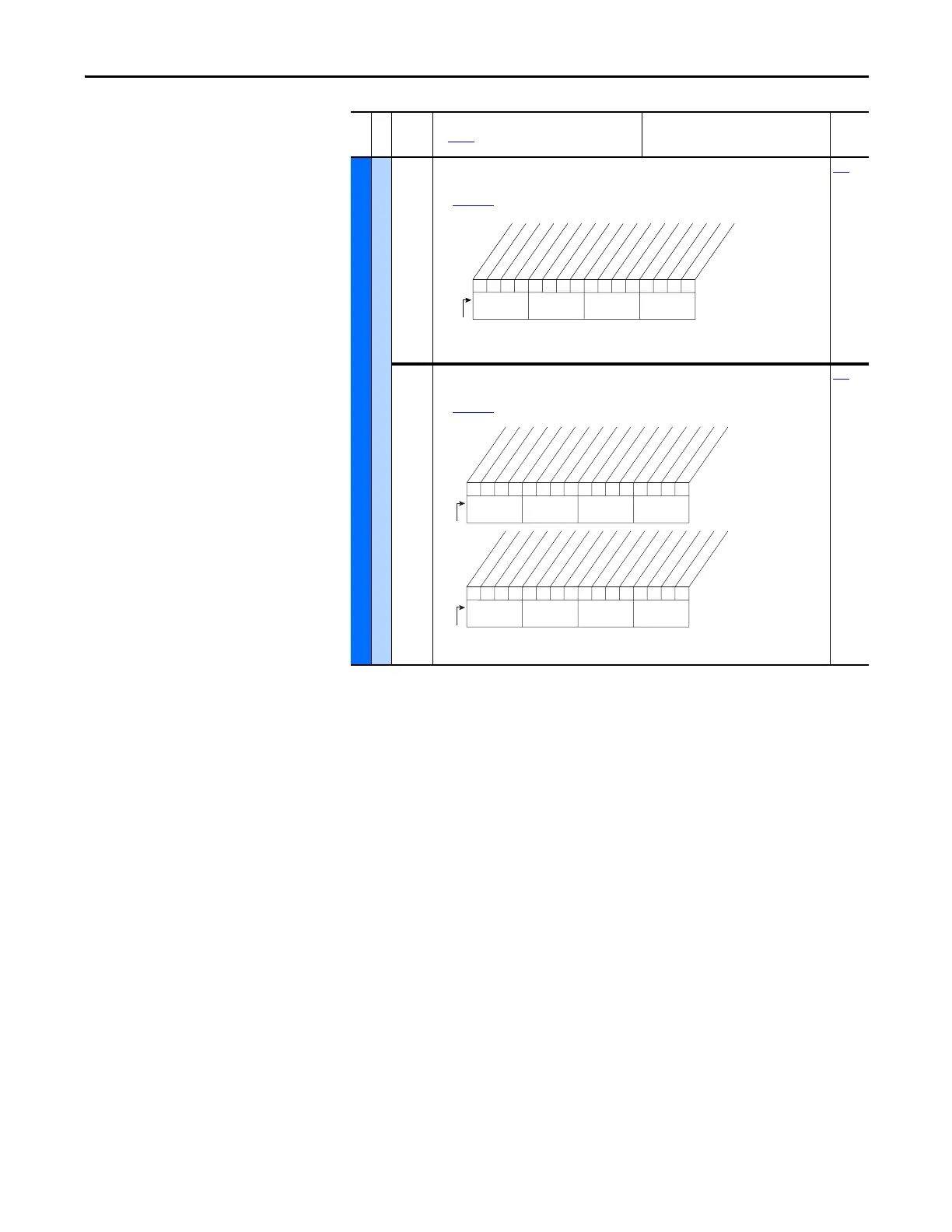

UTILITY (file E)
Diagnostics
211 [Drive Alarm 1]
Alarm conditions that currently exist in the drive.
See Chapter 2 for information on Type 1 alarms.
Read Only
212
212 [Drive Alarm 2]
Alarm conditions that currently exist in the drive.
See Chapter 2 for information on Type 2 alarms.
Read Only
211
File E Group No.
Parameter Name and Description
See page 14 for symbol descriptions
Values
Related
000000x00000000x
10 01234567891112131415
1=Condition True
0=Condition False
x =Reserved
Bit #
Prechrg Actv
UnderVoltage
Power Loss
Str At PwrUp
Anlg in Loss
IntDBRes OH
Drv OL Lvl 1
Drv OL Lvl 2
Decel Inhibt
Waking
(2)
Motor Therm
(1)
In PhaseLoss
(2)
Load Loss
(2)
Ground Warn
(2)
Nibble 1Nibble 2Nibble 3Nibble 4
(1)
Enhanced firmware 1.001 & later.
(2)
Enhanced firmware 2.001 & later.
000000000000000x
10 01234567891112131415
1 = Condition True
0 = Condition False
x = Reserved
Bit #
DigIn CflctA
DigIn CflctB
DigIn CflctC
Bipolr Cflct
MtrTyp Cflct
NP Hz Cflct
MaxFrq Cflct
VHz NegSlope
IR Vlts Rang
FlxAmps Rang
SpdRef Cflct
Ixo Volt Rang
(2)
Sleep Config
(2)
TB Ref Cflct
(1)
PTC Conflict
(1)
Nibble 1Nibble 2Nibble 3Nibble 4
x0xxxxxxxxxxxxxx
26 161718192021222324252728293031
1 = Condition True
0 = Condition False
x = Reserved
Bit #
UserSetCflct
(2)
Nibble 1Nibble 2Nibble 3Nibble 4
(1)
Enhanced firmware 1.001 & later.
(2)
Enhanced firmware 2.001 & later.

Allen-Bradley PowerFlex 70 Specifications

General

Input Voltage	200-240V AC, 380-480V AC, 500-600V AC
Frequency Range	0 - 400 Hz
Humidity	5% to 95% non-condensing
Output Voltage	0 to Input Voltage
Control Methods	Sensorless Vector Control
Communications	Ethernet/IP, DeviceNet, ControlNet
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Ground Fault
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Enclosure Rating	IP20, NEMA Type 1
