A-16 Supplemental Drive Information

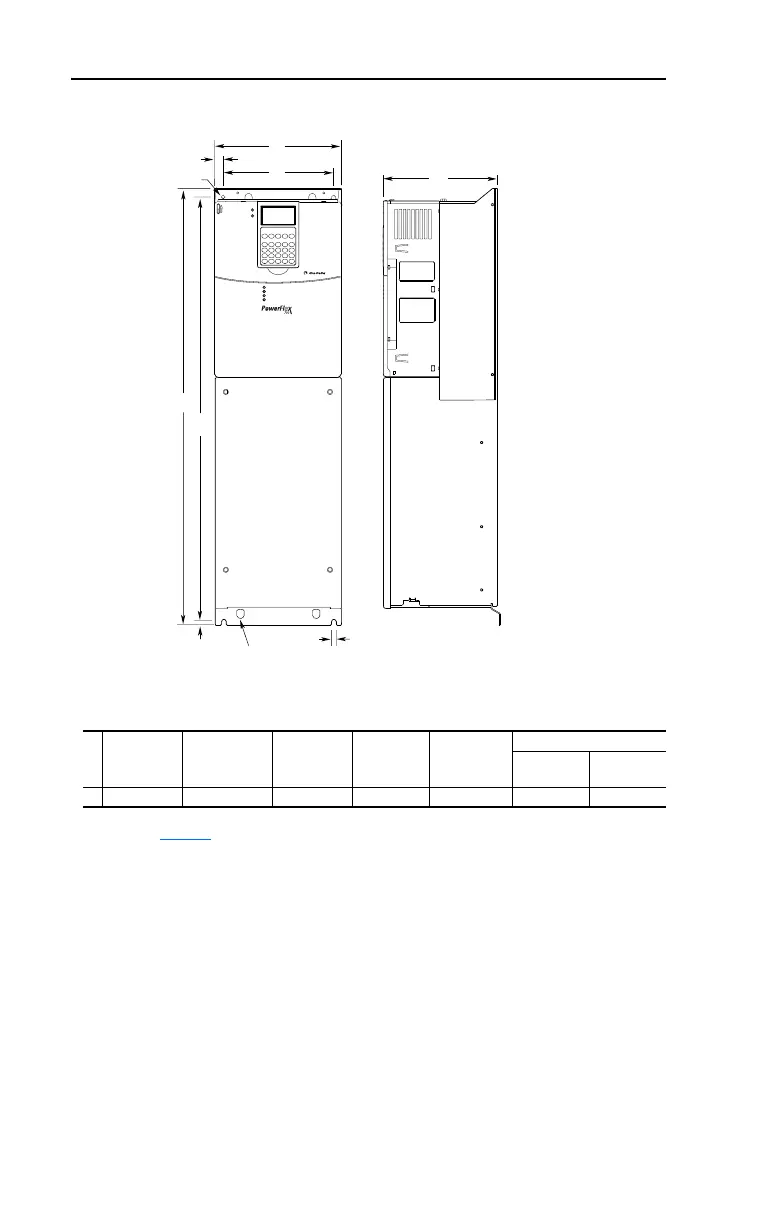

Figure A.4 PowerFlex 700 Frame 4
Dimensions are in millimeters and (inches)
C
E
8.0
(0.31)
B
7.0 (0.28) dia.
7.0 (0.28)
3 Places
A
D
15.0 (0.59)
Lifting Holes
4 Places
Frame
(1)
A (Max.) BC (Max.) DE
Approx. Weight
(2)
kg (lbs.)
Drive
Drive &
Packaging
4 220.0 (8.66) 758.8 (29.87) 201.7 (7.94) 192.0 (7.56) 738.2 (29.06) 24.49 (54.0) 29.03 (64.0)
(1)
Refer to Tab le A . I for frame information.
(2)
Weights include HIM and Standard I/O.
