Appendix B Application Notes
Reverse Speed Limit

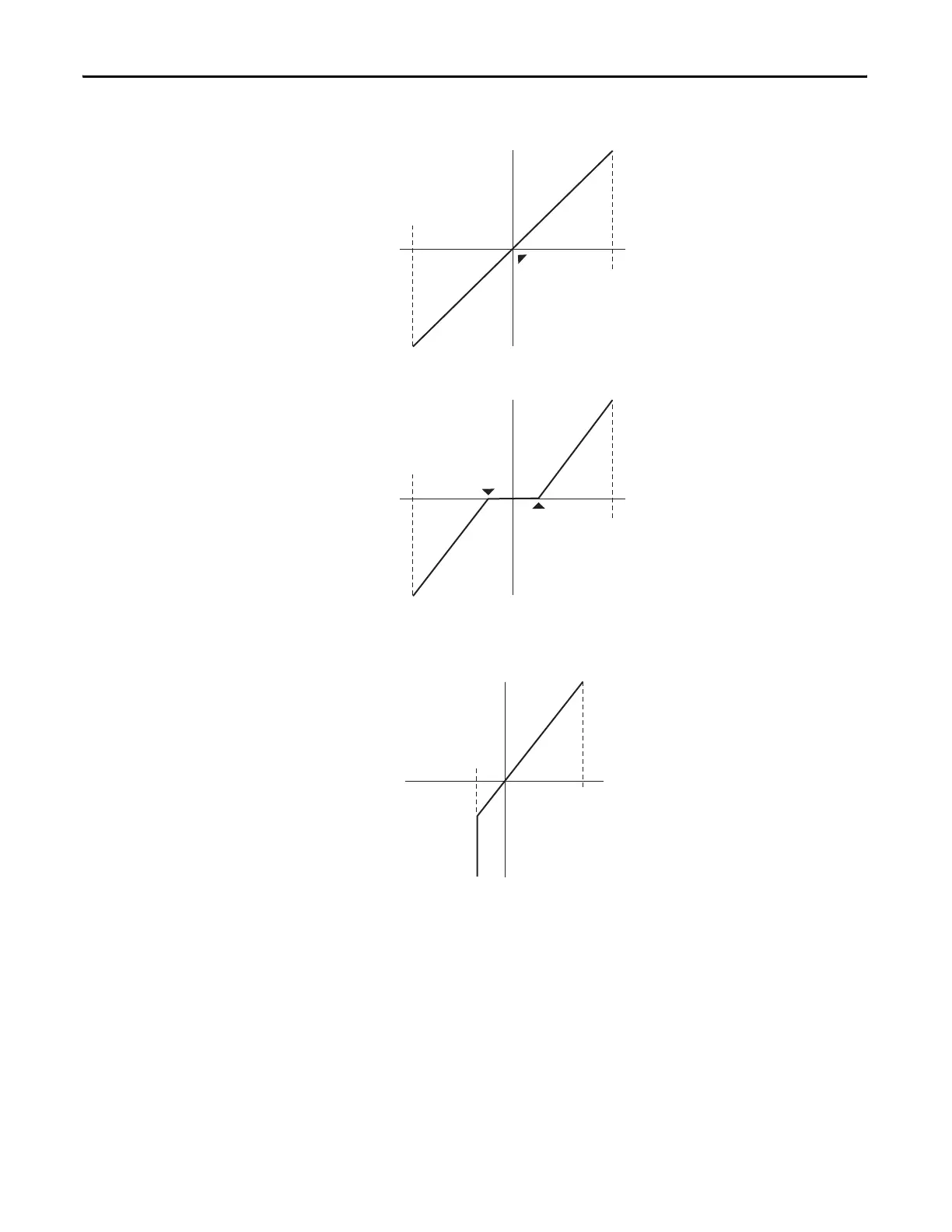

Figure 6 - [Rev Speed Limit], parameter 454 set to zero
Figure 7 - [Rev Speed Limit], parameter 454 set to a non-zero Value
Forward
Speed
Reverse
Speed
[Maximum
Speed]
[Maximum
Speed]
Minimum
Speed = 0
10V
–10V
Forward
Speed
Reverse
Speed
[Maximum
Speed]
[Maximum
Speed]
Minimum
Speed 0
Minimum
Speed 0
10V
–10V
Forward
Speed
Reverse
Speed
Limit
Maximum
Speed
10V
–10V
Reverse
Speed
Note: Minimum speed is not used when
Reverse Speed Limit is set to a non-zero
value.
