PowerFlex® 700S Drives - Phase I Control (Frame Sizes 9 & 10) 13

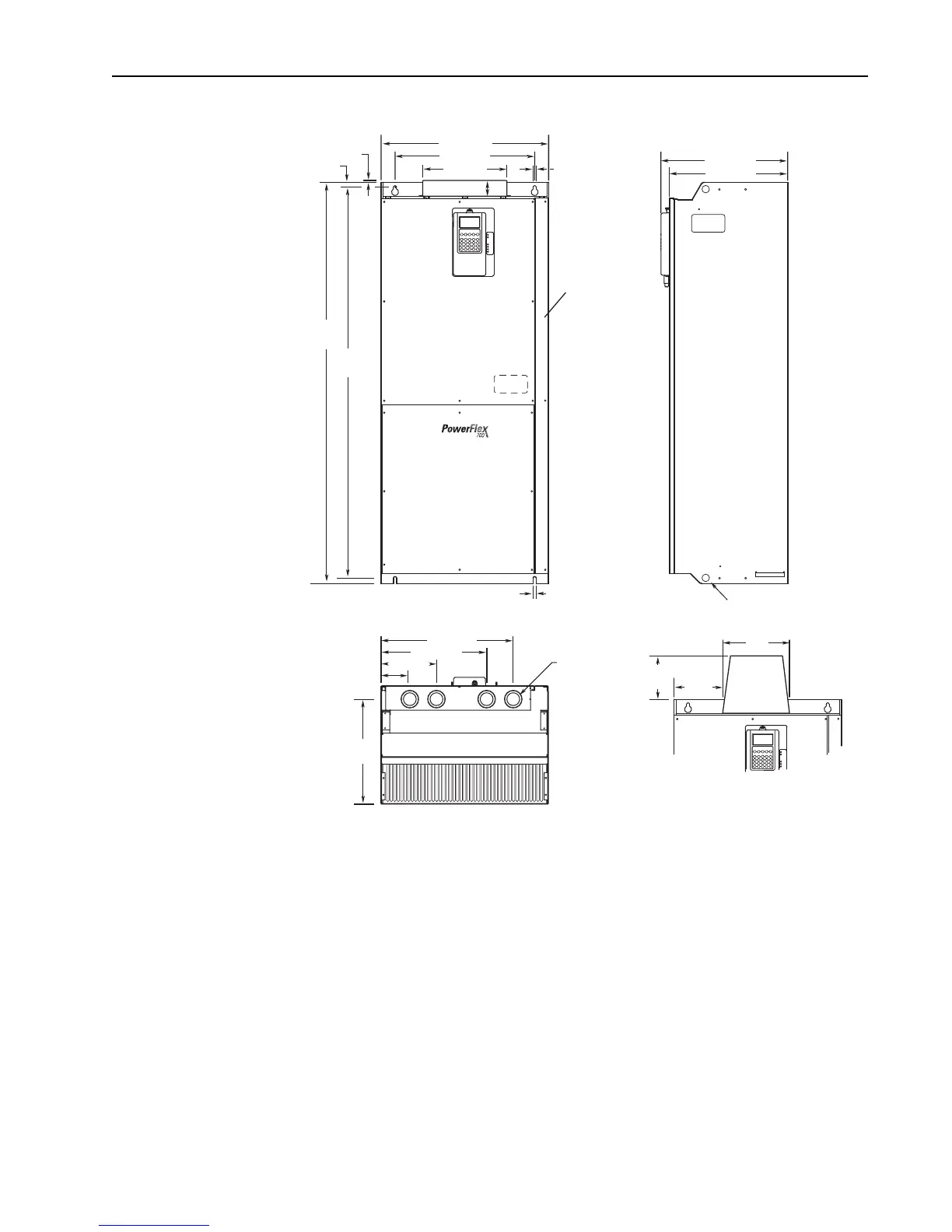

Frame 9 Dimensions
339.5 (13.37)
363.3 (14.32)
1120.0
(44.09)
Nameplate
1150.0
(45.28)
9.0 (0.35)
Wire Way
240.0 (9.45)
14.0 (0.55)
5.0 (0.20)
480.0 (18.90)
400.0 (15.75)
9.0 (0.35)
372.5 (14.67)
292.5 (11.52)
142.5 (5.61)
62.5 (2.46)
285.0
(11.22)
Lifting Hole
21.0 (0.83)
45.0 (1.77)
100.12
(3.94)
191.64
(7.54)
Detail A
Brake Option Top Hat
Nameplate
59.0 (2.32)
245.53
(9.67)
