PowerFlex® 700S Drives - Phase I Control (Frame Sizes 9 & 10) 15

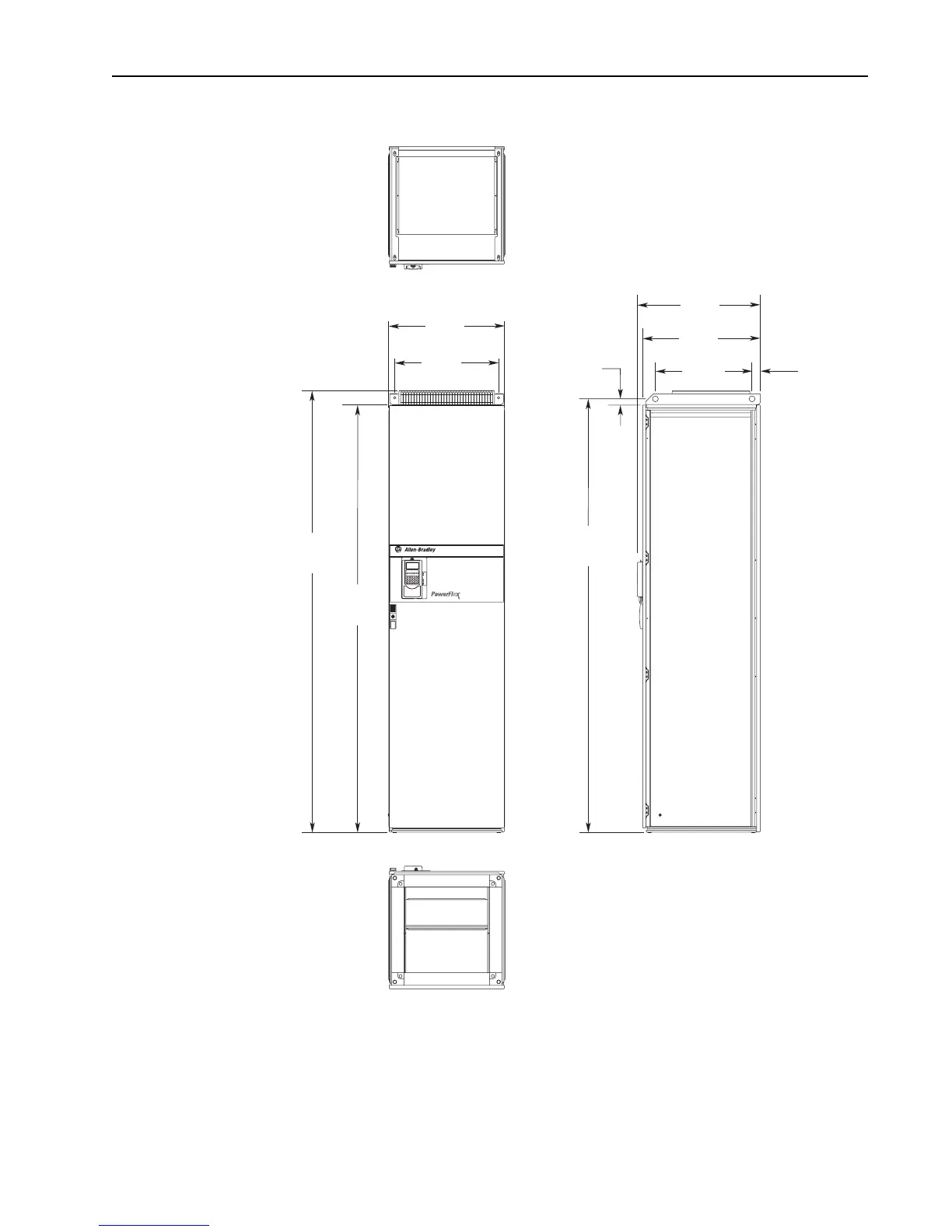

Frame 10 Dimensions
2275.0
(89.57)
2201.8
(86.68)
597.0
(23.50)
534.7
(21.05)
2234.0
(87.95)
32.3
(1.27)
42.0
(1.65)
498.0
(19.61)
605.5
(23.84)
632.5*
(24.90)
* This dimension is the depth for drives with
the optional door-mounted HIM installed
