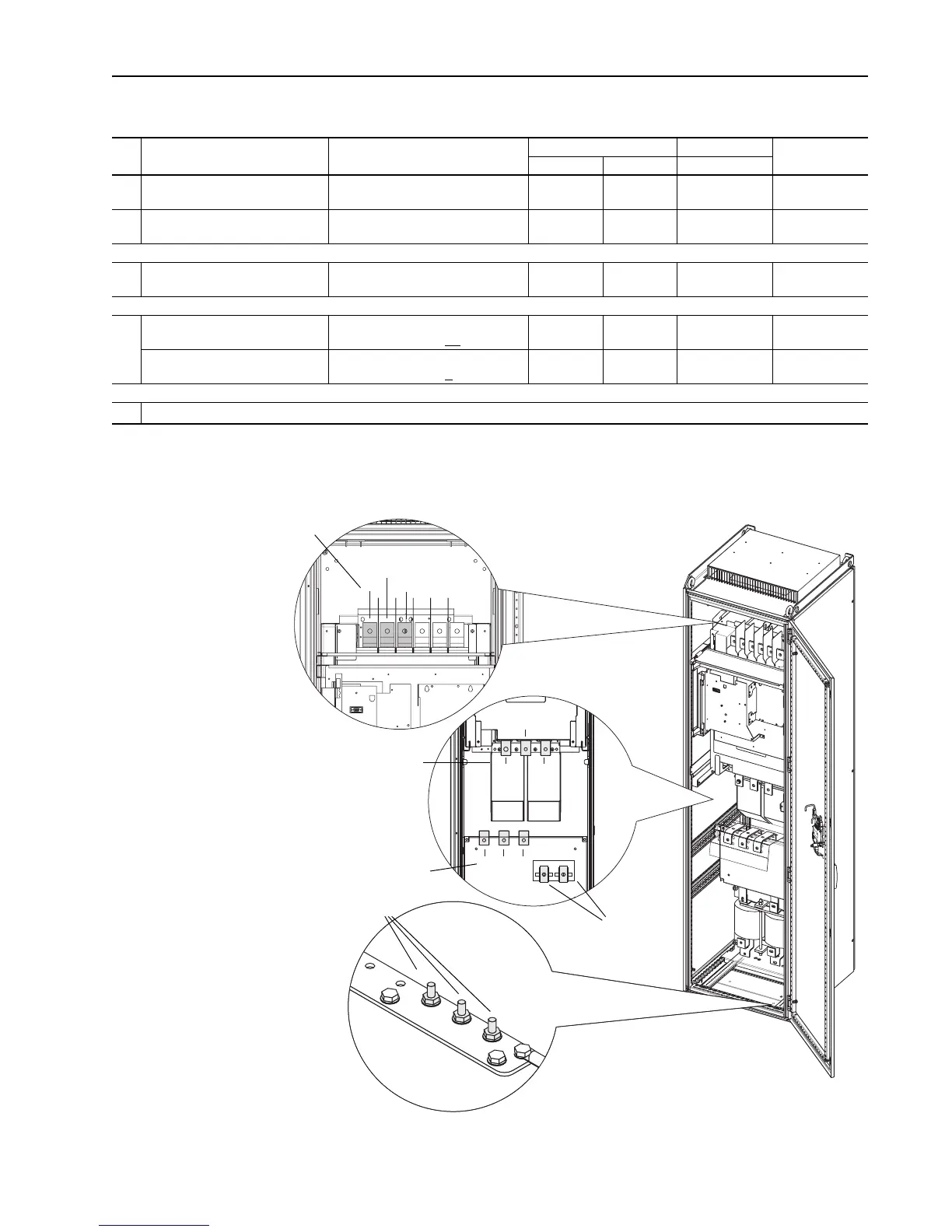

PowerFlex® 700S Drives - Phase I Control (Frame Sizes 9 & 10) 29
Frame 10 Size Drives Power Terminal Specifications
No. Name Description
Wire Size Range
(1)(2)
Torque
Terminal Bolt
Size
(3) (4)
Maximum Minimum Recommended
➊
Input Power Terminal Block
L1, L2, L3
(3)
Input power 300 mm
2
(600 MCM)
2.1 mm
2
(14 AWG)
40 N-m
(354 lb.-in.)
M12
➋
Output Power Terminal Block
((3)
U/T1, V/T2, W/T3
Motor connections 300 mm
2
(600 MCM)
2.1 mm
2
(14 AWG)
40 N-m
(354 lb.-in.)
M12
➌
SHLD Terminal, PE, Motor
Ground
(3)
Terminating point for wiring shields 300 mm
2
(600 MCM)
2.1 mm
2
(14 AWG)
40 N-m
(354 lb.-in.)
M10
➍
DC Bus
(3)
(2 Terminals; DC–, DC+)
DC input or external brake
(Internal Brake option not ordered)
300 mm
2
(600 MCM)
2.1 mm
2
(14 AWG)
40 N-m
(354 lb.-in.)
M12
DC Bus w/Brake
(3)
(3 Terminals; DC–, DC+/R+, R–)
DC input/internal brake
(Internal Brake option is ordered)
300 mm
2
(600 MCM)
2.1 mm
2
(14 AWG)
40 N-m
(354 lb.-in.)
M12
➎
Cable Clamp for Shield
(1) Maximum/minimum sizes that the terminal block will accept - these are not recommendations.
(2) Do Not exceed maximum wire size. Parallel connections may be required.
(3) These connections are bus bar type terminations and require the use of lug type connectors.
(4) Apply counter torque to the nut on the other side of terminations when tightening or loosening the terminal bolt in order to avoid damage to the terminal.
L1 L2 L3
V/T2
U/T1 W/T3
DC-
DC+/R+
R-
➊
➍
➋
➌
➎
