Rockwell Automation Publication 750-IN020D-EN-P - May 2017 29
PowerFlex 755 IP00, NEMA/UL Open Type Drive

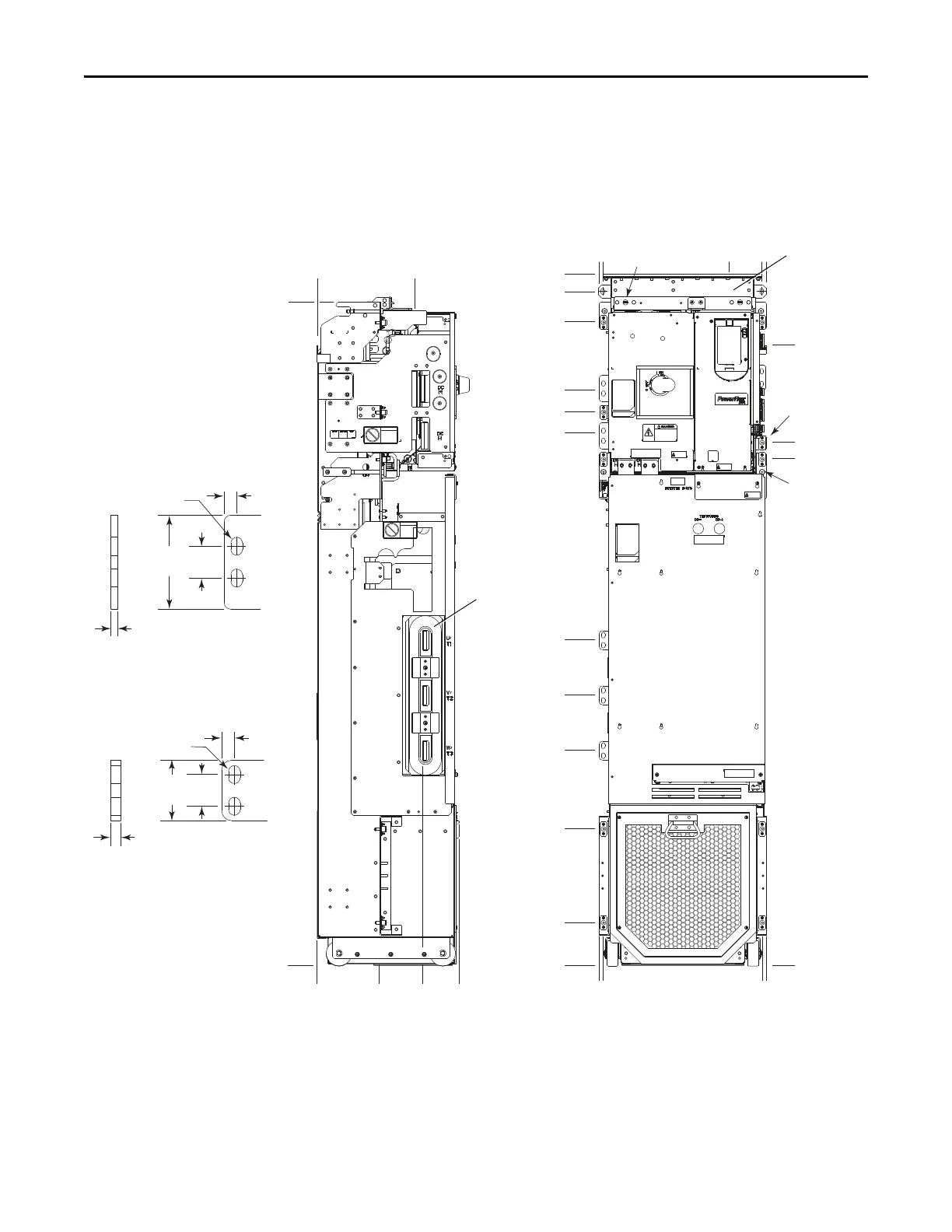

Figure 11 - Drive Unit Dimensions – Common DC Input
0.0 (0.00)
1983.8 (78.10)
129.7 (5.11)
409.7 (16.13)
643.3 (25.33)
0.0 (0.00)
808.4 (31.83)
973.5 (38.33)
1590.6 (62.62)
1654.6 (65.14)
1718.6 (67.66)
1922.6 (75.69)
W/T3
V/T2
U/T1
-DC
+DC
0.0 (0.00)
1563.6 (61.56)
1855.8 (61.56)
M8 x 1.25
Captive Mounting
Fastener, 10 Places
Captive Duct
Interface
Hardware,
4 Places
1513.6 (59.59)
185.9 (7.32)
316.4 (12.46)
424.9 (16.73)
12.7 (0.50)
474.0 (18.66)
486.6 (19.16)
0.0 (0.00)
0.0 (0.00)
288.4 (11.36)
0.4 (0.02)
13.0 (0.51)
0.3 (0.01)
375.9 (14.80)
474.3 (18.67)
487.0 (19.17)
15.9 (0.63) dia.
for Lifting, 2 Places
11.0 (0.43) x
17.0 (0.67)
+DC, -DC
6.4 (0.25)
88.9
(3.50)
30.0
(1.18)
11.8 (0.46)
11.0 (0.43) x
17.0 (0.67)
U/T1, V/T2, W/T3
9.5 (0.38)
57.2
(2.25)
30.0
(1.18)
12.0 (0.47)
2012.4 (79.23)
2063.7 (81.25)
Dimensions are in millimeters and (inches)
Front View
Left Side View
Height without
Outlet Ducting Kit
Outlet Ducting
Kit
Height with
Outlet Ducting Kit
Optional EMC Core
(20-750-EMCCM1-F8)
shown installed.
