Rockwell Automation Publication 750-IN020D-EN-P - May 2017 57
PowerFlex 755 IP00, NEMA/UL Open Type Drive

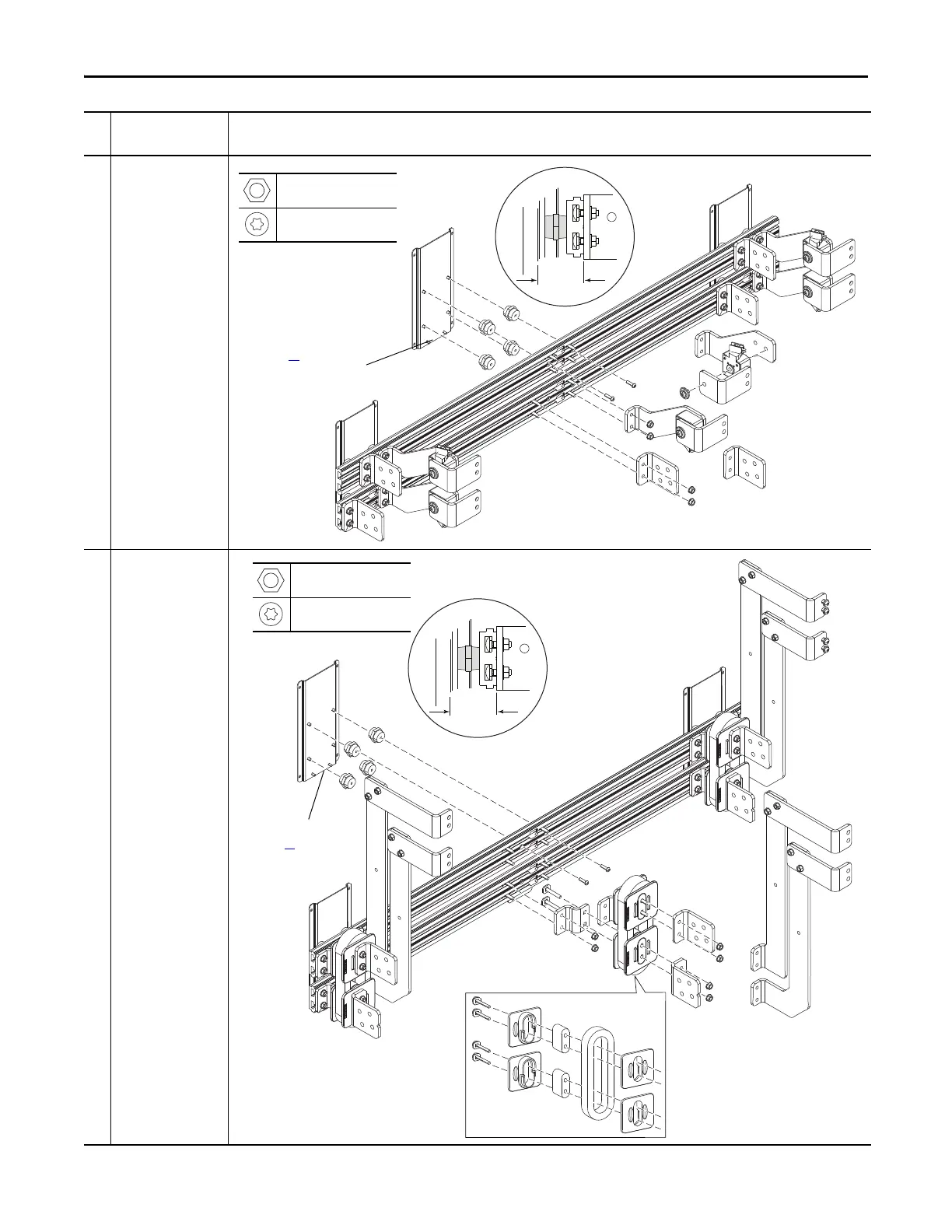

10 Inverter DC Bus Field
Termination
20-750-BUS4-F10
(400/480V)
20-750-BUS6-F10
(600/690V)
10 DC Input for Common
Bus Precharge Field
Termination
20-750-BUS5-F10
Frame
Kit Steps
73.50
(2.894)
M10
37.9 N•m (336 lb•in)
T40 - M8
9.0 N•m (80 lb•in)
Ground Bond Location
(see page 22
for hardware
and torque requirements)
Physical size of fuses
are different between
400/480V and
600/690V kits.
73.50
(2.894)
Ground Bond Location
(see page 22
for hardware
and torque requirements)
M10
37.9 N•m (336 lb•in)
T40 - M8
9.0 N•m (80 lb•in)
