60 Rockwell Automation Publication 750-IN020D-EN-P - May 2017
PowerFlex 755 IP00, NEMA/UL Open Type Drive
I/O Terminal Blocks
The various I/O terminal blocks are located in the Control Pod.

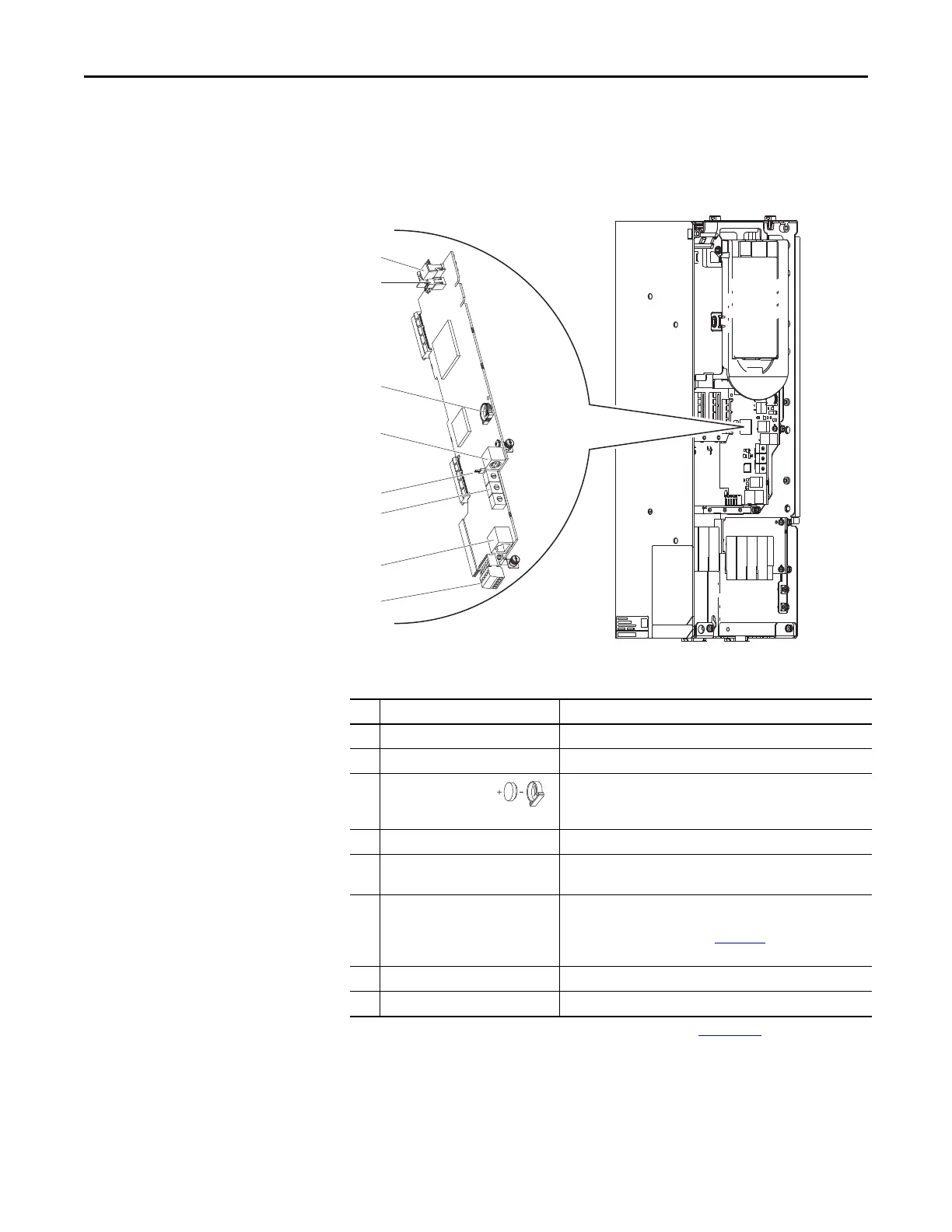

Main Control Board
Main Control Board Details
No. Name Description
1 HIM Connector DPI Port 1 (HIM Cradle) connection.
2 Fan Connector Power supply for internal cooling fan.
3 Battery Receptacle User installed CR1220 lithium coin cell battery provides power to the
Real Time Clock (Optional, not supplied). Preserves the Real Time Clock
setting in the event power to the drive is lost or cycled.
4 DPI Port 2 Cable connection for handheld and remote HIM options.
5 ENABLE Jumper Hardware enable jumper. Removed when a hardware enable
configuration is utilized.
6 Embedded EtherNet/IP
(1)
Address
Selectors
(1) See the PowerFlex 755 Drive Embedded EtherNet/IP Adapter User Manual, publication 750COM-UM001.
Rotary switches for setting lowest octet of EtherNet/IP address (forces
address to 192.168.1.xxx). See the PowerFlex 750-Series AC Drives
Programming Manual, publication 750-PM001
for instructions on
setting the IP address.
7 Embedded EtherNet/IP
(1)
Connector Network cable connection.
8 TB1 I/O terminal block.
