Reference Section

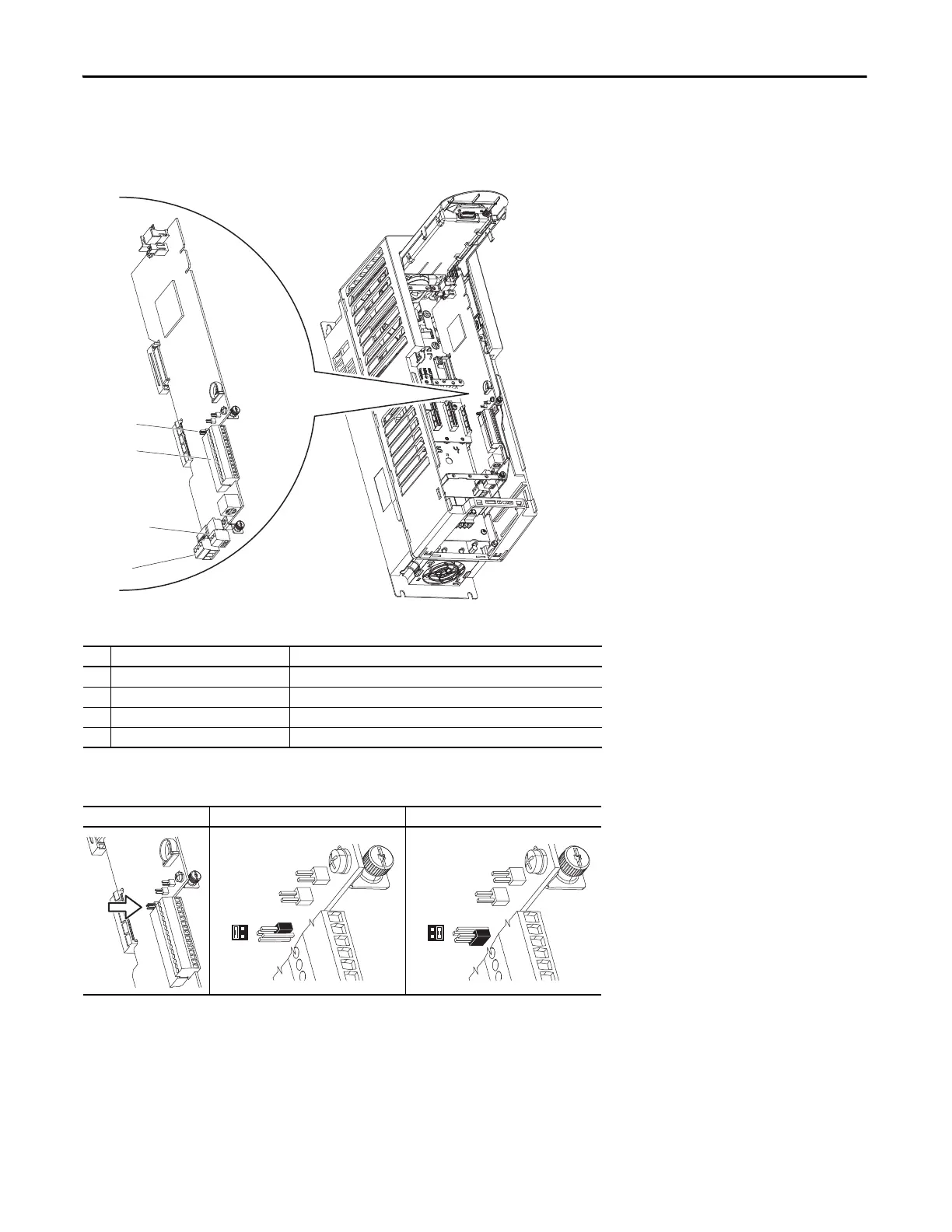

Connections on PowerFlex 753 Main Control Board
Terminal block TB1 and the input mode jumpers are mounted directly on the main control board.
Table 10 - 753 Main Control Board Details
No. Name Description
1 Jumper J4 Input Mode Analog input mode jumper. Selects voltage mode or current mode.
2 TB1 I/O terminal block.
3 TB3 Digital input terminal block.
4 TB2 Relay terminal block.
Table 11 - J4 Input Mode Jumper
Jumper Position Voltage Mode Current Mode
1
2
SK-R1-MCB1-PF753
3
4
J4
3 1
4 2
J4
3 1
4 2

Allen-Bradley PowerFlex 755 Specifications

General

Category	AC Drive
Amperage	2.2…1470 A
Output Voltage	0 to Input Voltage
Output Current	2.2…1470 A
Enclosure	IP20, IP30, IP54
Communications	EtherNet/IP, ControlNet, DeviceNet
I/O	Digital, Analog, Encoder, Relay
Safety	Safe Speed Monitor
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload, Short Circuit, Ground Fault, Overtemperature
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5…95% noncondensing
Altitude	Up to 1000m (3300ft) without derating
Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Control Method	Sensorless Vector
