30 Rockwell Automation Publication 750-PC108A-EN-P - April 2021
PowerFlex 755T Drives Configured to Order Program Product Information

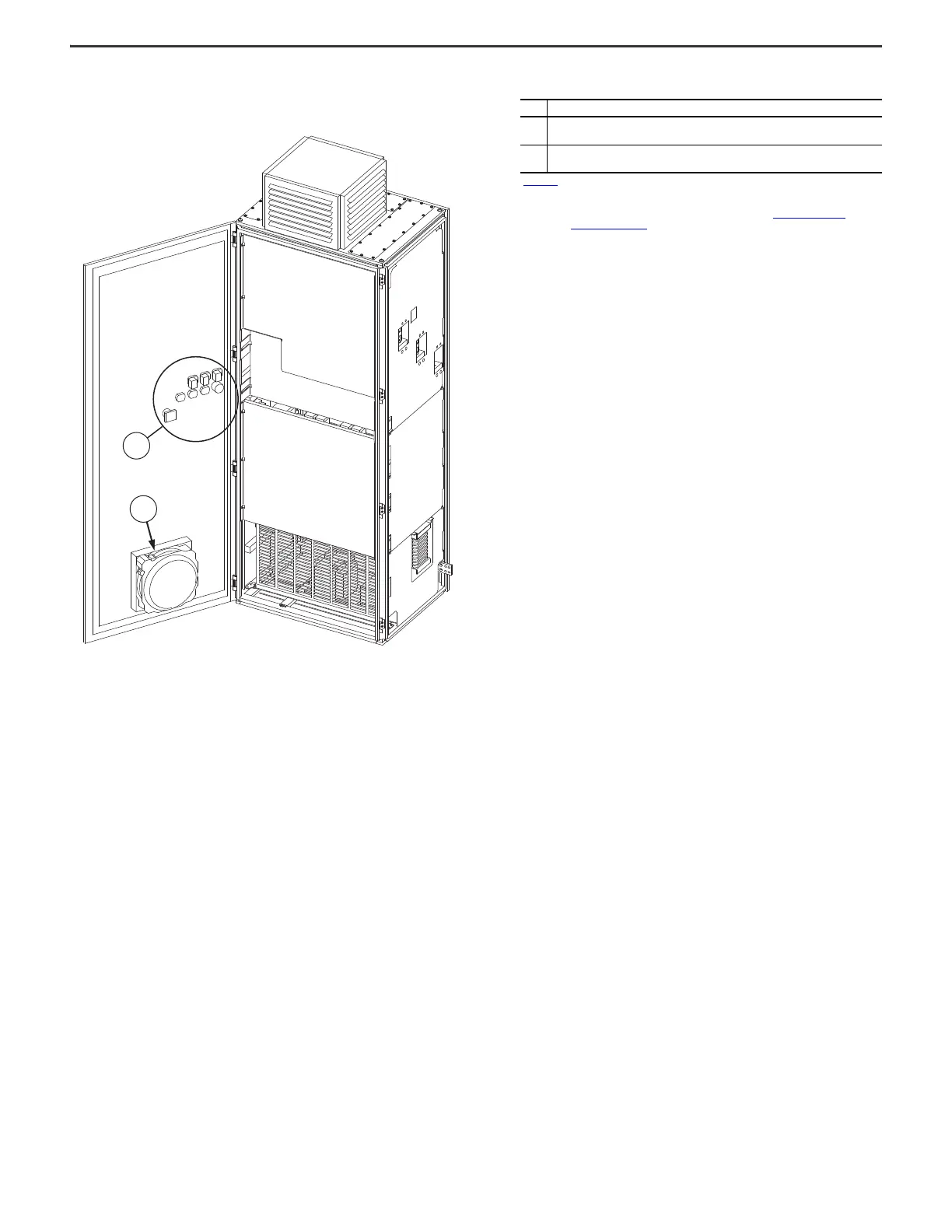

Figure 27 - Frame 8 and 9 Configured Input Bay with Input Protection Basic Door Internal Components
Item Description
1
Wire terminals for pilot lights and controls. These terminals are present only on
configured input bays. All connections to these terminals are made at the factory.
2
Fan with internal air filter. This fan is present on the interior of the door for every
configured input bay with input protection.
Figure 27
shows a frame 9 configured input bay with fuses, top entry. The labeled door
components are the basic door internal components common to all frame 8 and frame 9
configured input bays with input protection. To identify additional internal door components, see
the configured input bay upper door external component drawings, Figure 17 on page 21
for
frame 8 and Figure 26 on page 29
for frame 9.
1
2
