Running Applications 5-15
Cursor Operation

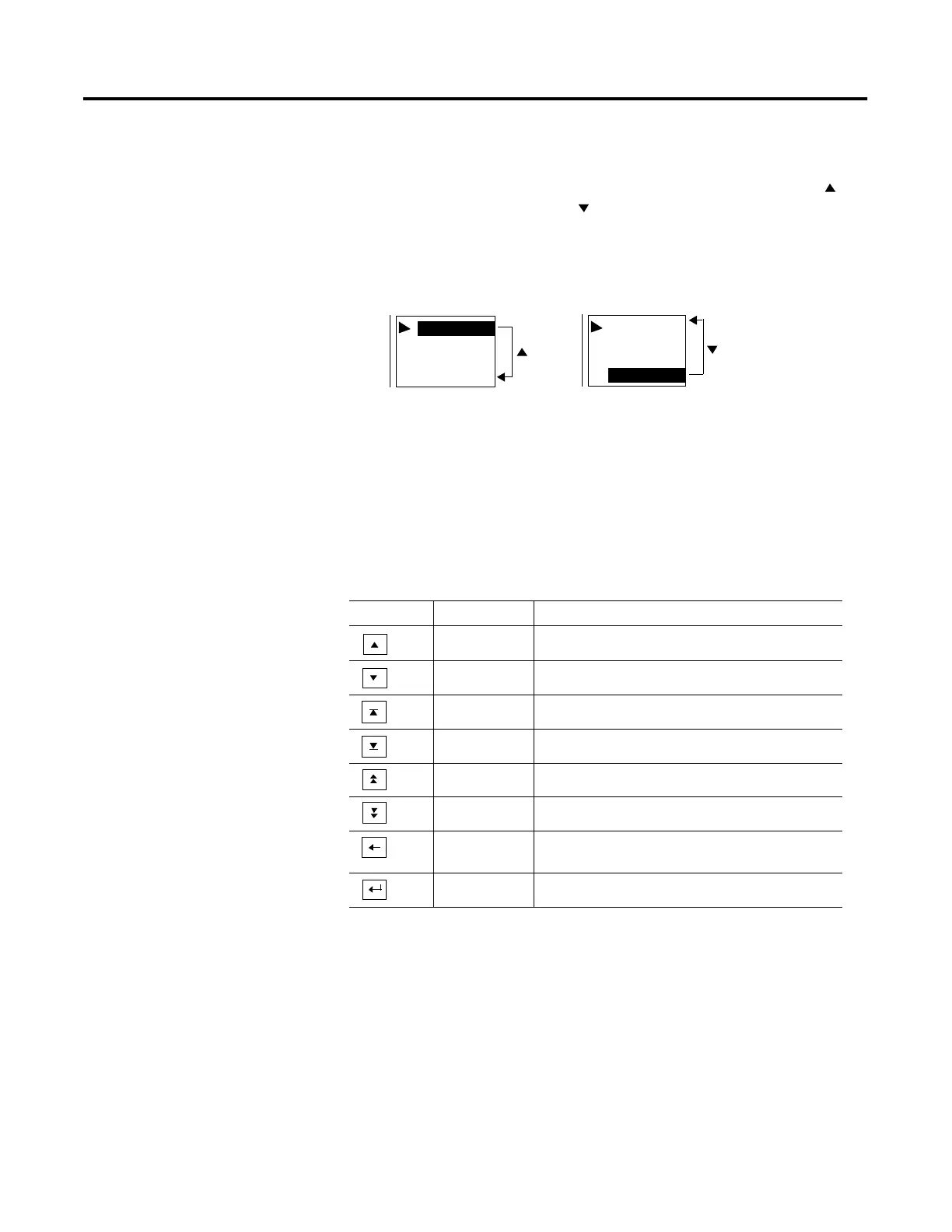

Cursor operation is configured by the application designer. If the
cursor is at the first or last item in a screen list, pressing the Up
arrow (when at top) or Down arrow (when at bottom) will either:
• cause no movement of the cursor, or
• move the cursor to the top or bottom of the list
If a screen list contains more items than can appear at one time, the
list scrolls. If the cursor is at the top or bottom of a scrolling list, the
list scrolls one row at a time as the Up/Down arrows are pressed.
List Keys
Touch screen terminals require list keys on the screen to move the
cursor in a screen list and select an entry. The following table shows
the list keys.
List Key Type Description
Move Up Moves the cursor to the previous item in the list.
Move Down Moves the cursor to the next item in the list.
Home Moves the cursor to the first item in the list.
End Moves the cursor to the last item in the list.
Page Up Moves the cursor up one page in a scrolling list.
Page Down Moves the cursor down one page in a scrolling list.
Backspace Returns the cursor to the currently highlighted
selection.
Enter Confirms a selection and displays the screen.
